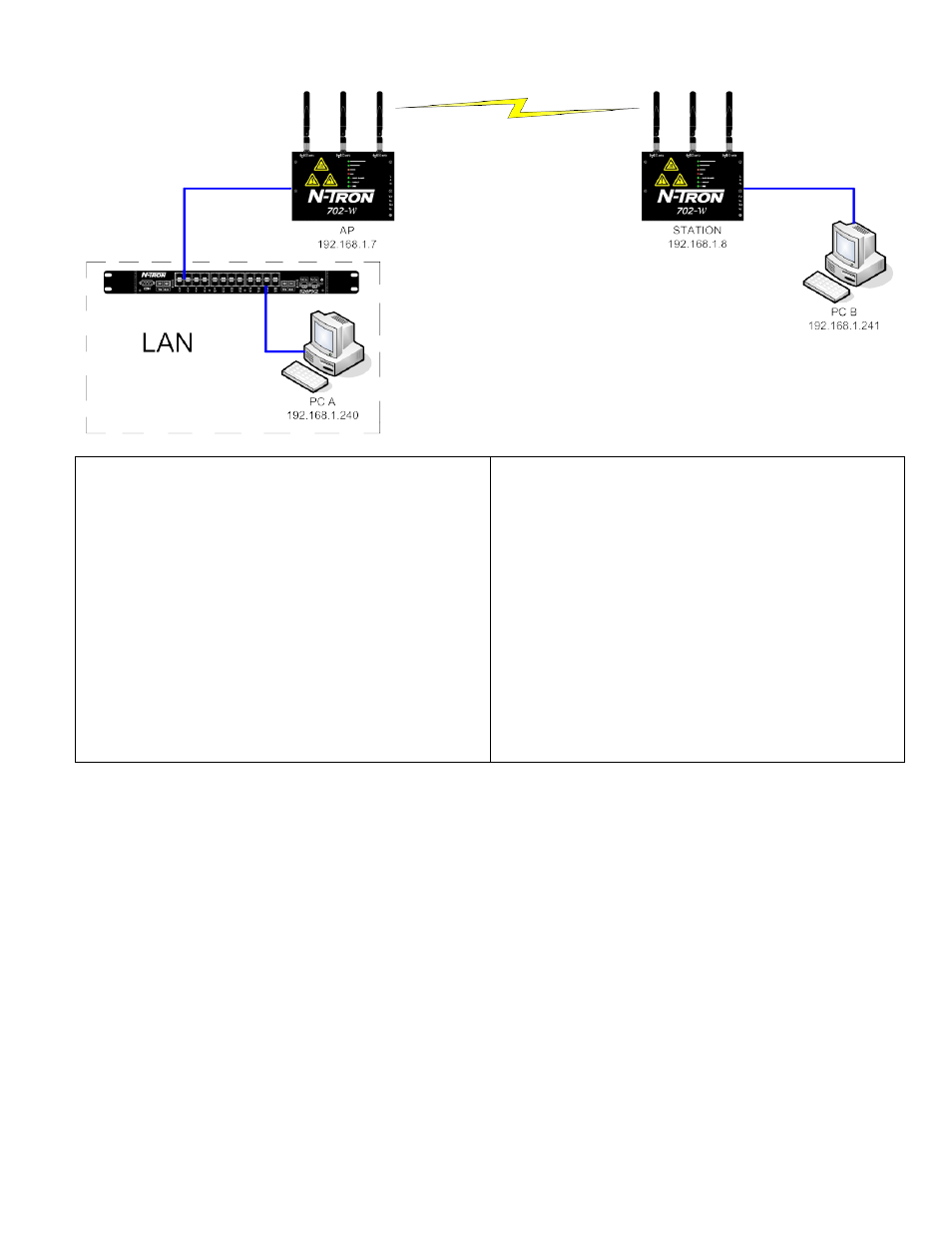

Scenario 2 – Encrypted Bridge

Link Setup:

Wireless Mode:

AP

SSID:

N-Tron

Country Code:

United States

802.11 Mode:

11Ng-20MHz

Channel:

10 – 2457MHz

Extension Channel:

N/A

Output Power:

12dBm


Security:

WPA2-AES

WPA Preshared key:

ntron001

Network:

Mode:

Bridge

IP Address:

192.168.1.7

Netmask:

255.255.255.0

Gateway:

192.168.1.1

Link Setup:

Wireless Mode:

Station

ESSID:

N-Tron

Country Code:

United States

802.11 Mode:

11Ng-20MHz

Extension Channel:

N/A

Output Power:

12dBm



Security:

WPA2-AES

WPA Preshared key:

ntron001

Network:

Mode:

Bridge

IP Address:

192.168.1.8

Netmask:

255.255.255.0

Gateway:

192.168.1.1
