24. A CCESSORY
ZM1.WALL Wall mounting bracket
This bracket is used to mount Dimension units onto a flat surface without utilizing a DIN-Rail. The two aluminum
brackets and the black plastic slider of the unit have to be detached, so that the two steel brackets can be mounted.

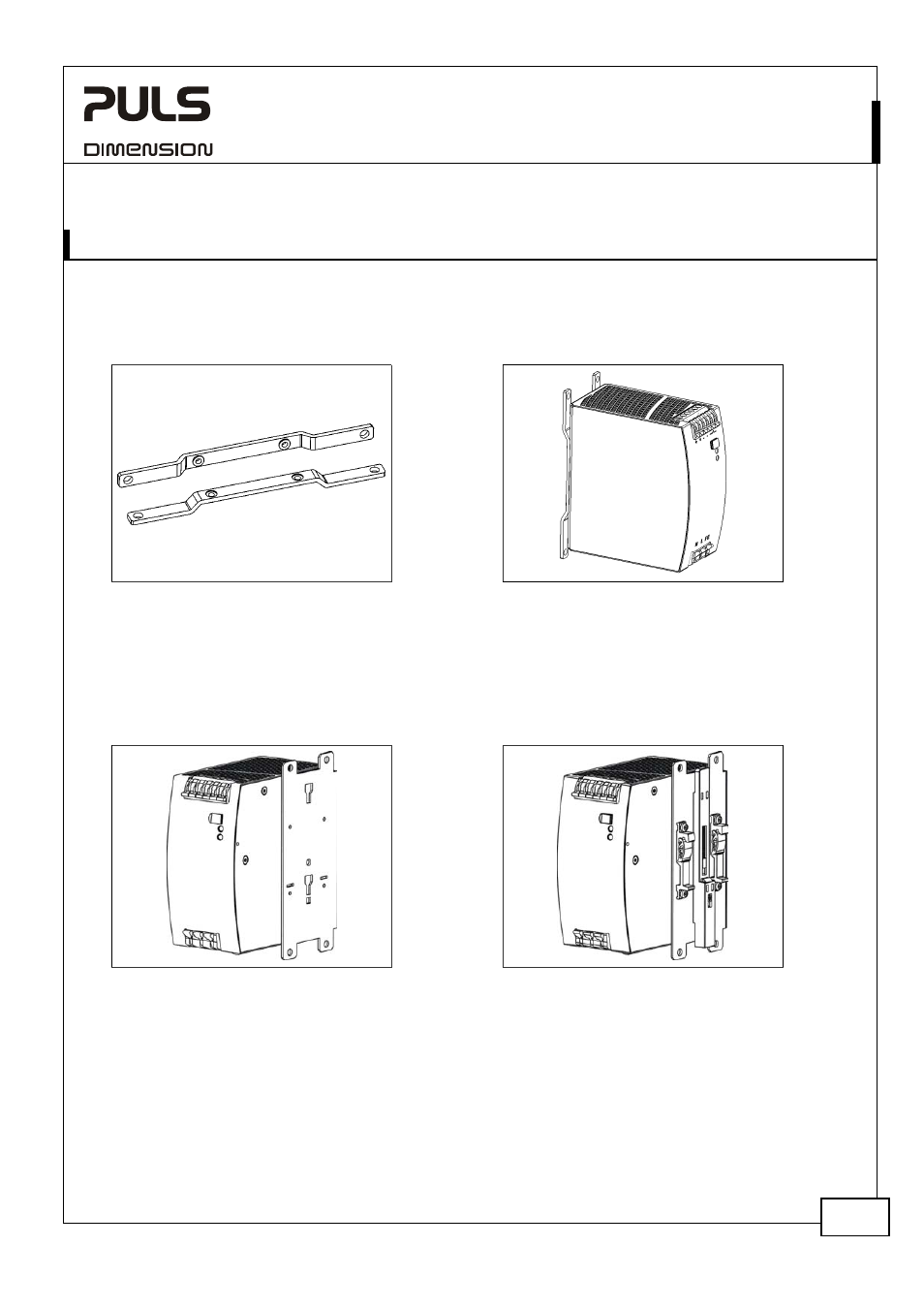

Fig. 24-1 ZM1.WALL Wall Mounting Bracket Fig. 24-2 Assembled Wall Mounting Bracket
ZM13.SIDE Side mounting bracket
This bracket is used to mount Dimension units sideways with or without utilizing a DIN-Rail. The two aluminum
brackets and the black plastic slider of the unit have to be detached, so that the steel brackets can be mounted.
For sideway DIN-rail mounting, the removed aluminum brackets and the black plastic slider need to be mounted on
the steel bracket.
Fig. 24-3 ZM13.SIDE Side Mounting Bracket Fig. 24-4 Side Mounting with DIN-rail brackets
