Installing Management Modules
An SNMP Management Module must be installed in the iMediaChassis/3 to enable
module and chassis management (except when using modules with built-in
management, such as the iMcV-Giga-FiberLinX-II). The SNMP Management module
installs in the management slot located at the bottom left of the chassis. This slot is
only for the management module; do not install application modules such as media
conversion and mode conversion modules in this slot. Double wide modules
installed in Slot 1 will overlap the management slot.
NOTE
The SNMP Management module includes DIP switches. These switches are
factory set and must not be moved.
SNMP Management Module LEDs
Each SNMP Management Module features several LEDs.
The LED functions are:
• LNK/ACT
Glows green when a link is established on port.
Blinks green when data activity occurs.
• FDX/COL:
Glows amber when port is in Full-Duplex mode.
Blinks amber when port is operating in Half-Duplex mode and
collisions occur.
• TEMP:
Glows amber when temperature of unit surpasses a user-defined
level.
• PS
Not used for the iMediaChassis/3.
• FAN A / FAN B
Not used for the iMediaChassis/3.

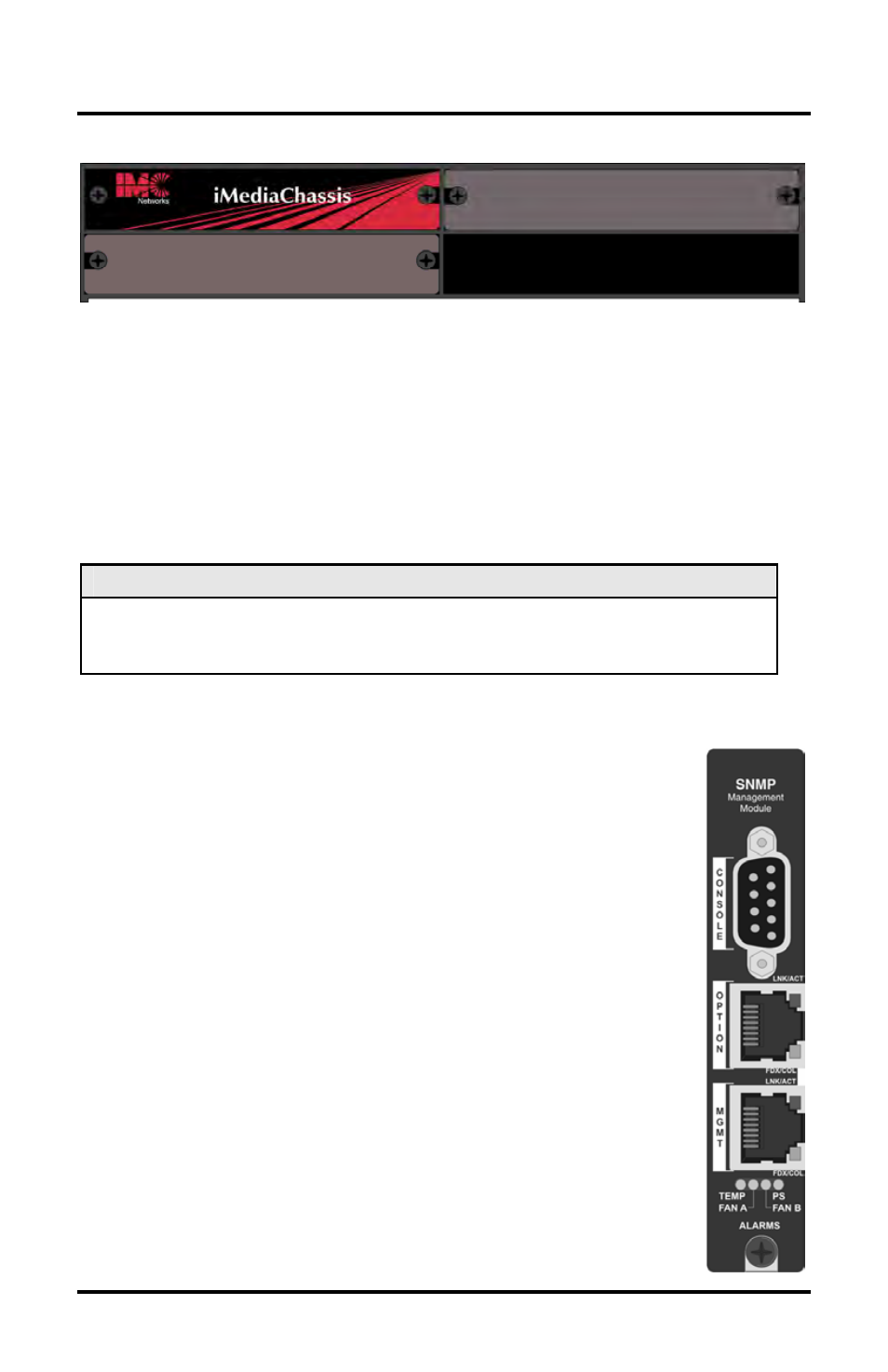

Slot 1 Slot 2
Slot 3 Management Slot
