The iMcV-E1-Mux/4 offers the following features:
• Four E1 ports on RJ-48 connectors with surge protection
• One full bandwidth Ethernet 10/100BaseT port
• 1+1 protection switching via two SFP-based optical ports
• DDMI supported on SFP ports
• One end-to-end serial RS-232 port on an RJ-48 connector
• Local CLI management console port on a Mini Jack connector
• Remote management capability through iMediaChassis series
• AIS generation on signal loss on all E1 interfaces
• SNMP Alarm TRAP reporting in managed chassis
• MDI/MDIX automatic Ethernet port switching
The iMcV-E1-Mux/4 module is a dual-wide iMcV module.
Compatible chassis include the following:
• iMediaChassis series
• MediaChassis series
• IE-MediaChassis series
Product Application

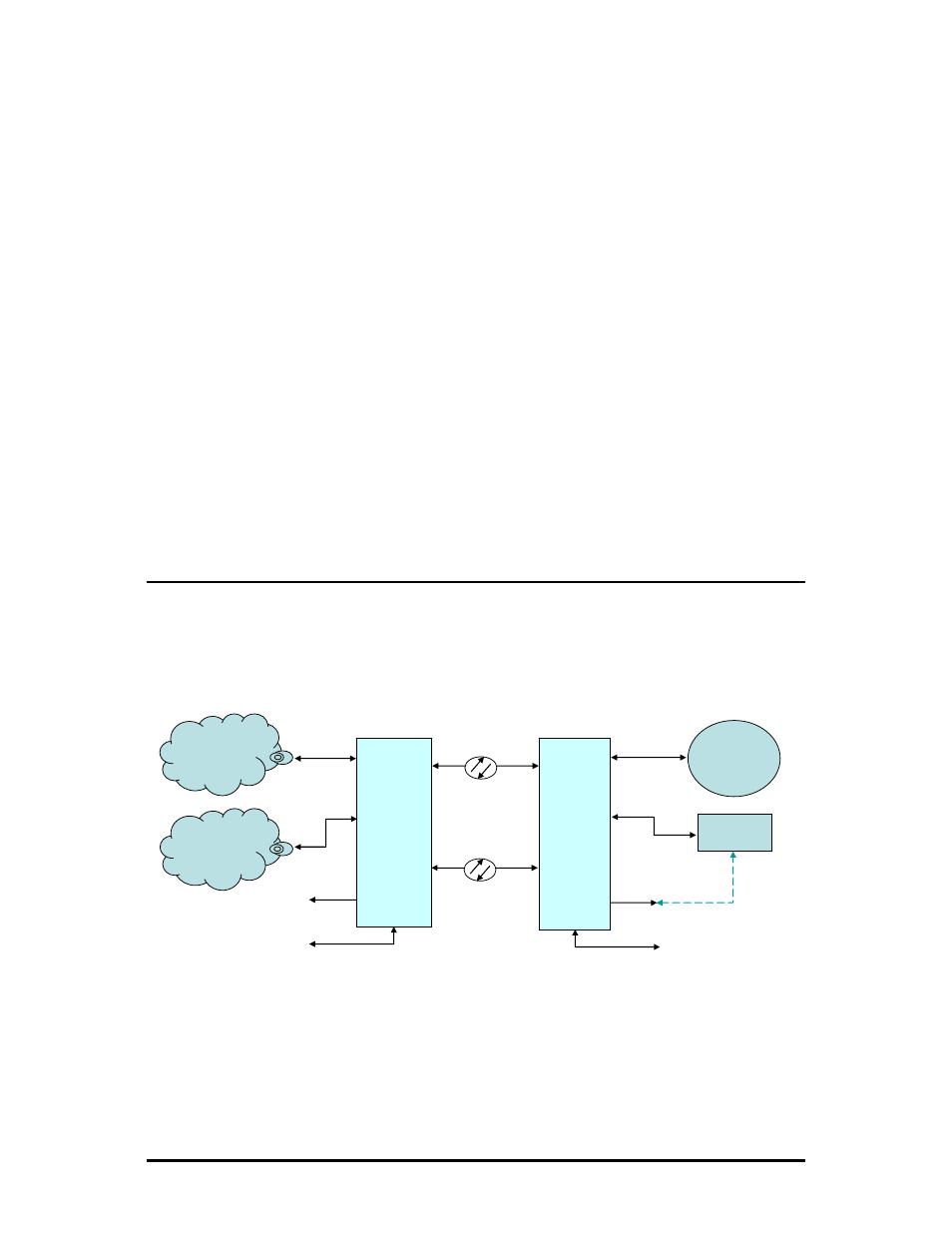

The iMcV-E1-Mux/4 delivers 4 E1 lines to a customer's site over a protected,
dedicated fiber line. In addition, one serial RS-232 line and one 10/100BaseT
Ethernet line can be carried at the same time. All circuits run at full line rates with no
interaction.
E1-Mux
(Network)
ISP Internet
TDM Network
PSTN
E1
(4 port)
10/100BaseT
(1 Port)
Customer
LAN
Customer
PABX
10/100BaseT
(1 Port)
E1
(4 Port)
Dedicated
Fiber
E1-Mux
(Subscriber)
Local Far End
Remote
Serial Port Serial Port Dedicated
Fiber
Protection
(1+1) Console
Console
Console RS232 Host
Remote Far End
Managed Modules
The iMcV-E1-Mux/4 modules are installed as a Host/Remote pair. Host or Remote
configuration is selected by an onboard DIP Switch setting. The Host/Remote pair
can be remotely managed when the HOST is installed in an iMediaChassis with an
SNMP Management Module.
