9

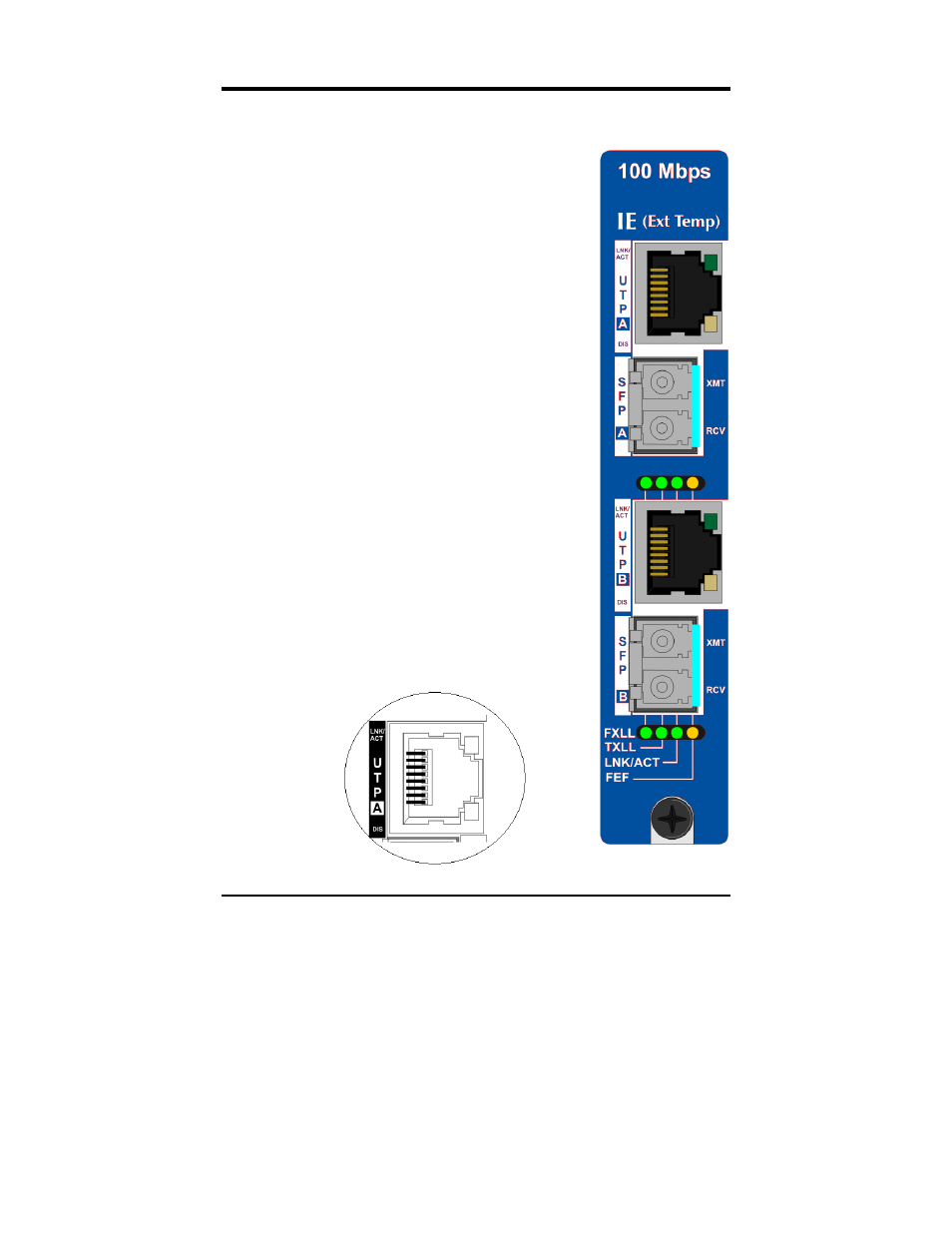

LED Operation
Each IE-iMcV-2xLIM, TX/SFP module features diagnostic LEDs that provide
information on features and ports.
FXLL Glows green when FX LinkLoss is enabled on
the port.
Blinks when a fault occurs on the fiber port
and actively disables the copper port.
TXLL Glows green when TX LinkLoss is enabled on
the port.
Blinks when a fault occurs on the copper port
and actively disables the fiber port.
LNK/ACT Glows green when the fiber or copper link is
established.
Blinks green when activity is detected.
FEF Glows green when the FEF function is
enabled on the fiber port and will blink if it is
receiving the FEF signal.
DIS The TX DISABLE (DIS) LED is OFF by default.
To disable the port and stop transmission of
data, this can be set through iView²
management or by setting DIP Switch #5 or
#10 OFF (dependent on whether the
selection is for Port A or Port B).
