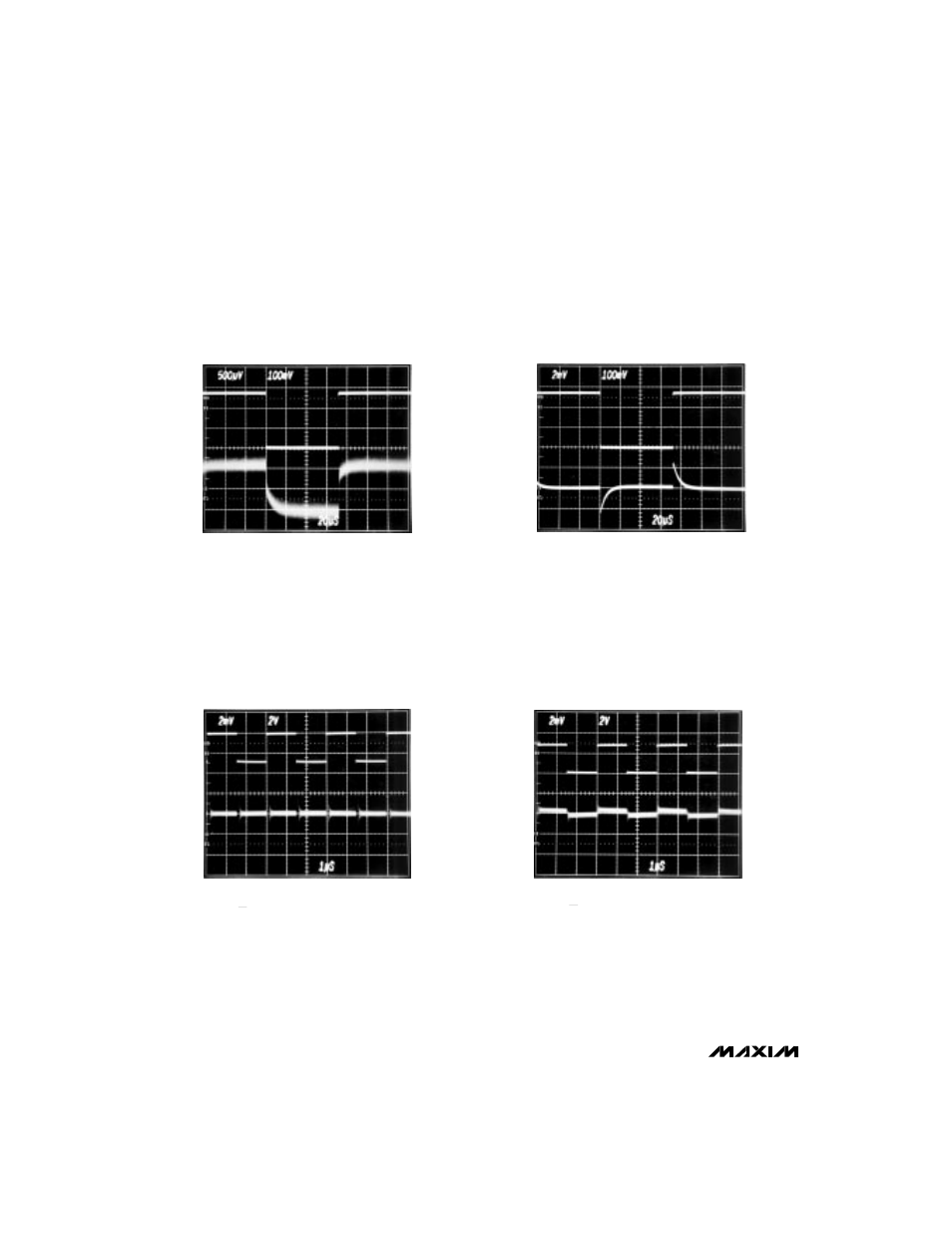

CLOCK FEEDTHROUGH (OUTA)
B
1 µ s/div
A
A: SCLK, 333kHz, 0V TO 2.9V, 2V/div
B: OUTA, 2mV/div
V SS = 0V, CS = HIGH
CLOCK FEEDTHROUGH (OUTC)
B
1 µ s/div
A
A: SCLK, 333kHz, 0V TO 2.9V, 2V/div
B: OUTC, 2mV/div
V SS = 0V, CS = HIGH
MAX512/MAX513
Low-Cost, Triple, 8-Bit Voltage Output DACs
with Serial Interface
6 _______________________________________________________________________________________
____________________________Typical Operating Characteristics (continued)
(T A = +25°C, unless otherwise noted.)
3.14V
LINE-TRANSIENT RESPONSE (OUTA)
2.86V
20 µ s/div
A : V DD, 100mV/div
B : OUTA, 500 µ V/div
REFAB = 2.56V, NO LOAD, CODE = ALL 1s
A
B
LINE-TRANSIENT RESPONSE (OUTC)
3.14V
2.86V
20 µ s/div
A : V DD , 100mV/div
REFC = 2.56V, NO LOAD, CODE = ALL 1s
B : OUTC, 2mV/div
A
B
