MAX512/MAX513
Low-Cost, Triple, 8-Bit Voltage-Output DACs
with Serial Interface
______________________________________________________________________________________
15
_Ordering Information (continued)

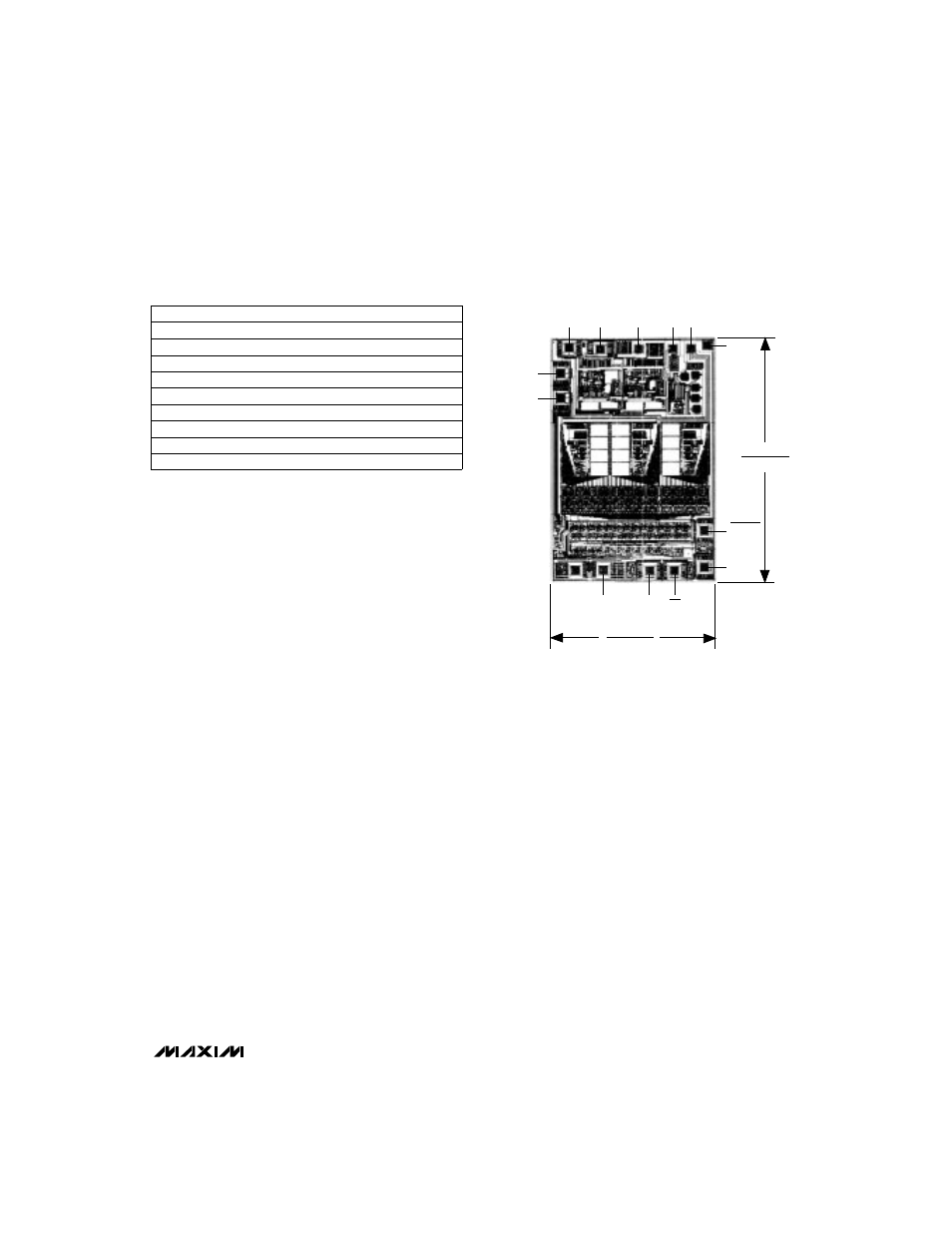

___________________Chip Topography
SCLK
RESET
REFC
REFAB
OUTC
OUTA
GND
OUTB
V
SS
CS
LOUT
DIN
0.122"
(3.099mm)
0.081"
(2.057mm)
V
DD
TRANSISTOR COUNT: 1910
SUBSTRATE CONNECTED TO V
DD
* Contact factory for dice specifications.
Dice*
0°C to +70°C
MAX513C/D
14 SO
0°C to +70°C
MAX513CSD
14 Plastic DIP
0°C to +70°C
MAX513
CPD
14 CERDIP
-55°C to +125°C
MAX513MJD
14 SO
-40°C to +85°C
MAX513ESD
14 Plastic DIP
-40°C to +85°C
MAX513EPD
14 CERDIP
-55°C to +125°C
MAX512MJD
14 SO
-40°C to +85°C
MAX512ESD
14 Plastic DIP
-40°C to +85°C
MAX512EPD
PIN-PACKAGE
TEMP. RANGE
PART
