All supplies should be decoupled with large tantalum or
electrolytic capacitors at the point they enter the PCB.
For best performance, bypass all power supplies to the
appropriate ground with a 10µF tantalum capacitor to
filter power-supply noise, in parallel with a 0.1µF
capacitor and a high-quality 47pF ceramic chip capaci-
tor located very close to the MAX108 device to filter
very high-frequency noise.
Static Parameter Definitions
Integral Nonlinearity
Integral nonlinearity (INL) is the deviation of the values
on an actual transfer function from a straight line. This
straight line can be either a best-straight-line fit or a line
drawn between the endpoints of the transfer function,
once offset and gain errors have been nullified. The
static linearity parameters for the MAX108 are mea-
sured using the best-straight-line fit method.
Differential Nonlinearity
Differential nonlinearity (DNL) is the difference between
an actual step width and the ideal value of 1LSB. A
DNL error specification of less than 1LSB guarantees
no missing codes and a monotonic transfer function.
±5V, 1.5Gsps, 8-Bit ADC with
On-Chip 2.2GHz Track/Hold Amplifier
26 ______________________________________________________________________________________

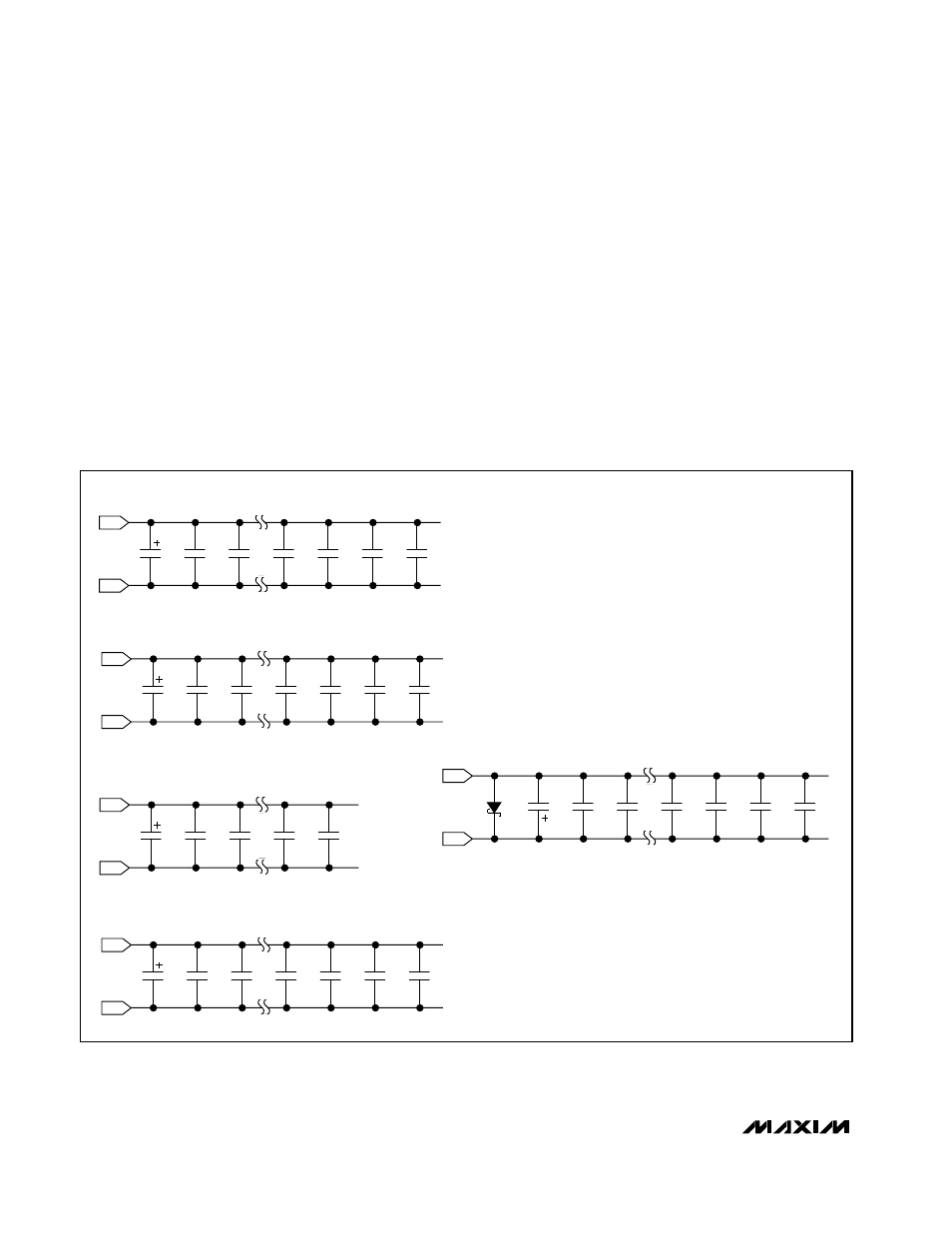

Figure 22. MAX108 Bypassing and Grounding
10 µ F
GNDD
V CC D
GNDA
V
CC
A
GNDI
V CC I
GNDI
1N5817
V
EE
V CC A = +4.75V TO +5.25V
V CC D = +4.75V TO +5.25V
V CC I = +4.75V TO +5.25V
V CC O = +3.0V TO V CC D
V EE = -4.75V TO -5.25V
NOTE:
LOCATE ALL 47pF CAPACITORS AS CLOSE
AS POSSIBLE TO THE MAX108 DEVICE.
GNDD
V CC O
10nF 10nF 47pF 47pF 47pF 47pF
10 µ F 10nF 10nF 47pF 47pF 47pF 47pF
10 µ F 10nF 10nF 47pF 47pF
10 µ F
10nF 10nF 47pF 47pF 47pF 47pF
10 µ F 10nF 10nF 47pF 47pF 47pF 47pF
