MAX108
Offset Adjust
The MAX108 provides a control input (VOSADJ) to com-
pensate for system offsets. The offset adjust input is a
self-biased voltage divider from the internal +2.5V preci-
sion reference. The nominal open-circuit voltage is one-
half the reference voltage. With an input resistance of
typically 25k
Ω
, this pin may be driven by an external
10k
Ω
potentiometer (Figure 11) connected between
REFOUT and GNDI to correct for offset errors. This con-
trol provides a typical ±5.5LSB offset adjustment range.
Clock Operation
The MAX108 clock inputs are designed for either sin-
gle-ended or differential operation (Figure 12) with flexi-
ble input drive requirements. Each clock input is
terminated with an on-chip, laser-trimmed 50
Ω
resistor
to CLKCOM (clock-termination return). The CLKCOM
termination voltage can be connected anywhere
between ground and -2V for compatibility with standard
ECL drive levels.
The clock inputs are internally buffered with a preampli-
fier to ensure proper operation of the data converter,
even with small-amplitude sine-wave sources. The
MAX108 was designed for single-ended, low-phase-
noise sine-wave clock signals with as little as 100mV
amplitude (-10dBm). This eliminates the need for an
external ECL clock buffer and its added jitter.
Single-Ended Clock Inputs (Sine-Wave Drive)
Excellent performance is obtained by AC- or DC-cou-
pling a low-phase-noise sine-wave source into a single
clock input (Figure 13a, Table 5). For proper DC bal-
ance, the undriven clock input should be externally
50
Ω
reverse-terminated to GNDI.
The dynamic performance of the data converter is
essentially unaffected by clock-drive power levels from
-10dBm (100mV clock signal amplitude) to +10dBm
(1V clock signal amplitude). The MAX108 dynamic per-
±5V, 1.5Gsps, 8-Bit ADC with
On-Chip 2.2GHz Track/Hold Amplifier
18 ______________________________________________________________________________________
Table 4. Ideal Input Voltage and Output Code Results for Differential Operation
OUTPUT CODE VIN+
0 -125mV 00000000 (zero scale) +125mV
0 -125mV + 0.5LSB 00000001
0 0V
01111111
toggles
10000000
+125mV - 0.5LSB
0V
OVERRANGE BIT
0 +125mV - 0.5LSB 11111111
1
VIN-
+125mV 11111111 (full scale)
-125mV + 0.5LSB
-125mV
GNDI
POT
10k
REFOUT
VOSADJ
MAX108

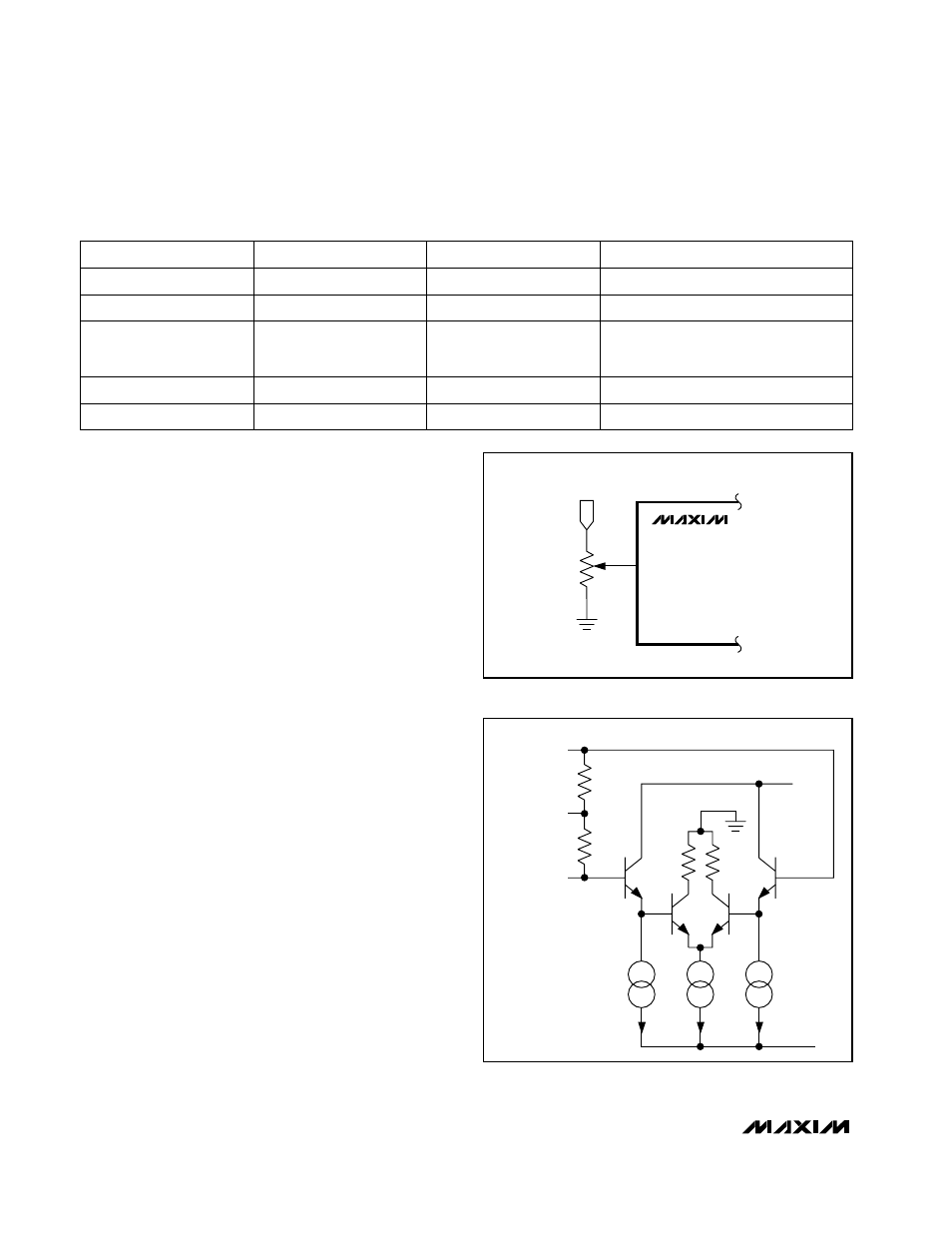

Figure 11. Offset Adjust with External 10k
Ω
Potentiometer
CLK+
CLKCOM
CLOCK INPUTS ARE
ESD PROTECTED
(NOT SHOWN IN THIS
SIMPLIFIED DRAWING).
CLK-
50 Ω
+0.8V
50 Ω GNDI
V EE
Figure 12. Simplified Clock Input Structure (Single-Ended/
Differential)
