MAX108
AC-Coupling Clock Inputs
The clock inputs CLK+ and CLK- can be driven with
PECL logic if the clock inputs are AC-coupled. Under
this condition, connect CLKCOM to GNDI. Single-
ended ECL/PECL/sine-wave drive is also possible if the
undriven clock input is reverse-terminated to GNDI
through a 50
Ω
resistor in series with a capacitor whose
value is identical to that used to couple the driven
input.
Demux Reset Operation
The MAX108 features an internal 1:2 demultiplexer that
reduces the data rate of the output digital data to one-
half the sample clock rate. Demux reset is necessary
when interleaving multiple MAX108s and/or synchroniz-
ing external demultiplexers. The simplified block dia-
gram of Figure 1 shows that the demux reset signal path
consists of four main circuit blocks. From input to out-
put, they are the reset input dual latch, the reset
pipeline, the demux clock generator, and the reset out-
put. The signals associated with the demux reset opera-
tion and the control of this section are listed in Table 6.
Reset Input Dual Latch
The reset input dual-latch circuit block accepts differ-
ential PECL reset inputs referenced to the same V
CC O
power supply that powers the MAX108 PECL outputs.
For applications that do not require a synchronizing
reset, the reset inputs can be left open. In this case,
they will self-bias to a proper level with internal 50k
Ω
resistors and 20µA current source. This combination
creates a -1V difference between RSTIN+ and RSTIN-
to disable the internal reset circuitry. When driven with
PECL logic levels terminated with 50
Ω
to (V CC O - 2V),
the internal biasing network can easily be overdriven.

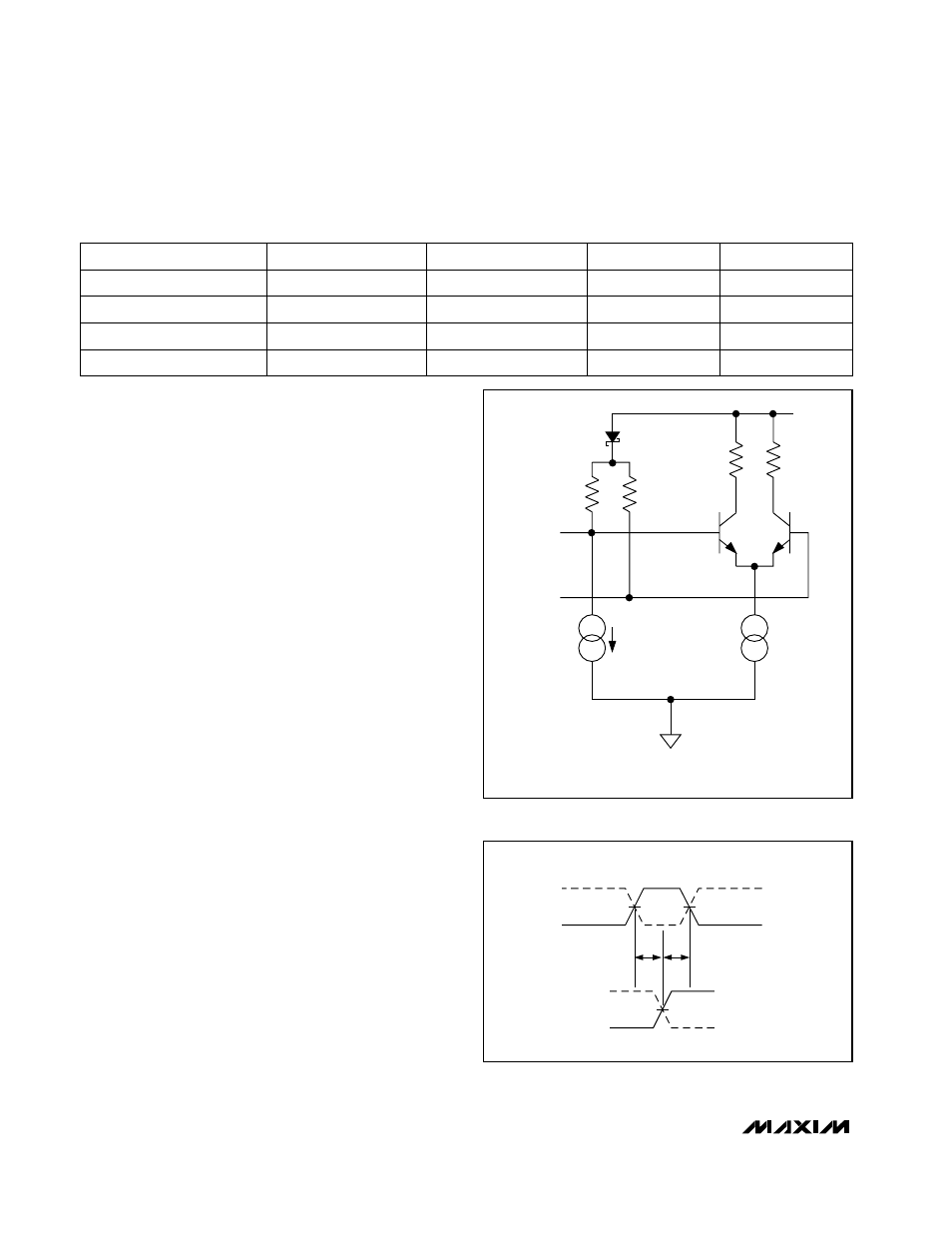

Figure 14 shows a simplified schematic of the reset
input structure.
To properly latch the reset input data, the setup time
(t
SU ) and the data-hold time (t HD ) must be met with
respect to the rising edge of the sample clock. The tim-
ing diagram of Figure 15 shows the timing relationship
of the reset input and sampling clock.
±5V, 1.5Gsps, 8-Bit ADC with
On-Chip 2.2GHz Track/Hold Amplifier
20 ______________________________________________________________________________________
Table 5. DC-Coupled Clock Drive Options
-2V Differential ECL Figure 13d ECL Drive ECL Drive
-2V Single-Ended ECL Figure 13c -1.3V ECL Drive
GNDI Differential Sine Wave Figure 13b -10dBm to +4dBm -10dBm to +4dBm
CLK-
External 50 Ω to GNDI
REFERENCE CLOCK DRIVE CLKCOM
GNDI
CLK+
Single-Ended Sine Wave Figure 13a -10dBm to +4dBm
50k 50k
RSTIN+
RSTIN-
RESET INPUTS ARE
ESD PROTECTED
(NOT SHOWN IN THIS
SIMPLIFIED DRAWING).
20 µ A
GNDD
V CC O
Figure 14. Simplified Reset Input Structure
RSTIN+
50% 50%
CLK+
CLK-
RSTIN-
50%
t SU t HD
Figure 15. Reset Input Timing Definitions
