Ordering Information
ADC1175-50CIJM SOIC (EIAJ)
ADC1175-50CIJMX SOIC (EIAJ) (tape and reel)
ADC1175-50CIMT TSSOP
ADC1175-50CIMTX TSSOP (tape and reel)
ADC1175-50CILQ LLP (tape and reel - 1, 000 units)
ADC1175-50CILQX LLP (tape and reel - 4, 500 units)

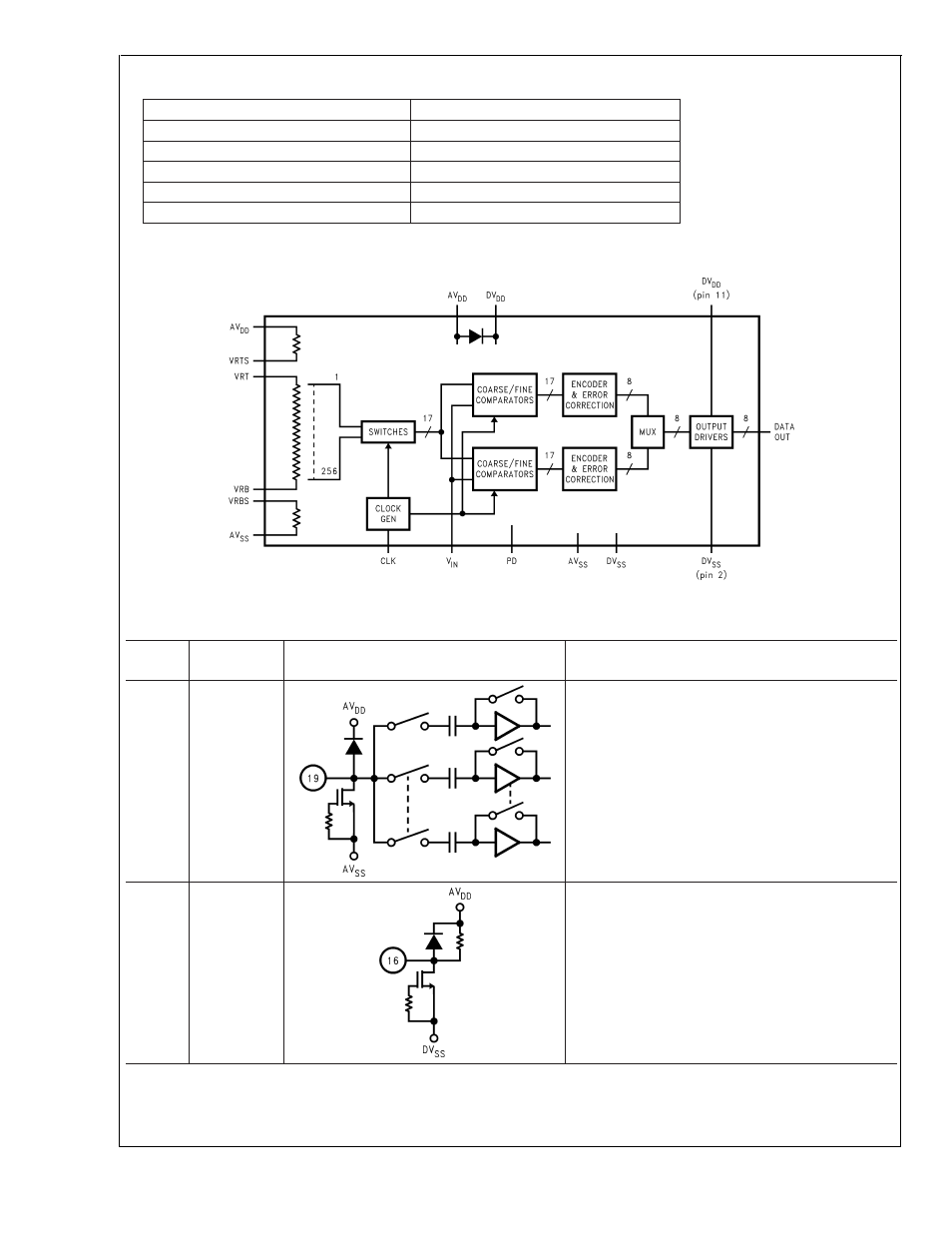

Block Diagram
Pin Descriptions and Equivalent Circuits
(LLP pins in parentheses)
Pin
No.
Symbol Equivalent Circuit Description
19
(17)
V
IN
Analog signal input. Conversion range is V
RT
to
V
RB
.
16
(14)
V
RTS
Reference Top Bias with internal pull up resistor.
Short this pin to V
RT
to self-bias the reference
ladder.
DS100896-2
ADC1
175-50
www.national.com 2
