ATF22V10C(Q)

0735P–PLD–01/02

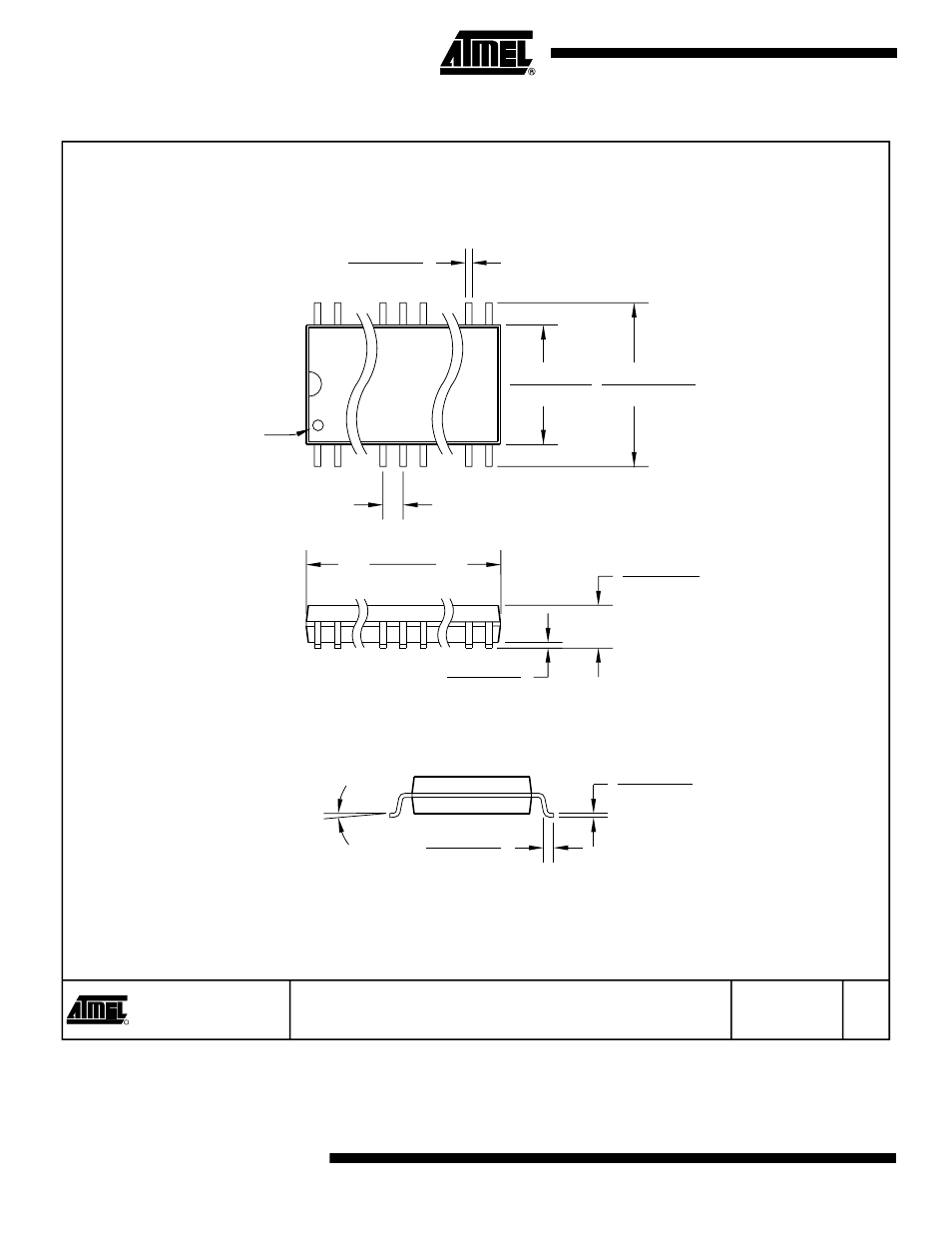

24S – SOIC

0.51 (0.020)

0.33 (0.013)

7.60(0.2992)

7.40(0.2914)

10.65(0.419)

10.00(0.394)

2.65(0.1043)

2.35(0.0926)

1.27(0.050) BSC

15.60(0.6141)

15.20(0.5985)

0.30(0.0118)

0.10(0.0040)

0.32(0.0125)

0.23(0.0091)

1.27(0.050)

0.40(0.016)

0º ~ 8º

PIN 1 ID

Dimensions in Millimeters and (Inches)
Controlling dimension: Inches
JEDEC STANDARD MS-013

PIN 1

04/11/2001

2325 Orchard Parkway
San Jose, CA 95131

TITLE

DRAWING NO.

REV.

24S, 24-lead (0.300" body) Plastic Gull Wing Small Outline (SOIC)

A

24S

R
