14
ATF22V10C(Q)
0735P–PLD–01/02
Packaging Information
28J – PLCC
1.14(0.045) X 45˚ PIN NO. 1
IDENTIFIER
1.14(0.045) X 45˚
0.51(0.020)MAX
0.318(0.0125)
0.191(0.0075)
A2
2325 Orchard Parkway
San Jose, CA 95131
TITLE DRAWING NO.
R
REV.

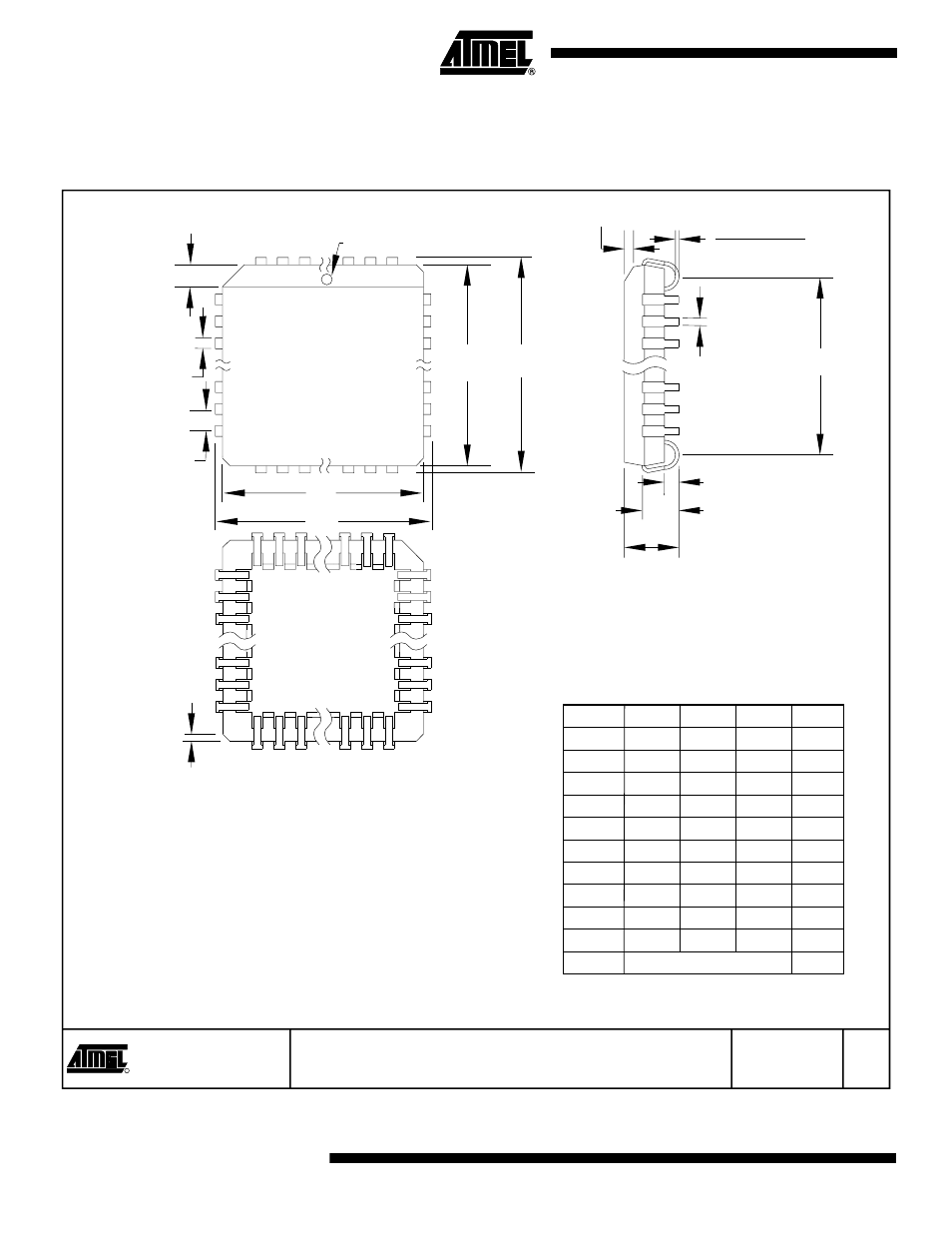

28J, 28-lead, Plastic J-leaded Chip Carrier (PLCC)
B 28J
10/04/01
45˚ MAX (3X)
Notes: 1. This package conforms to JEDEC reference MS-018, Variation AB.
2. Dimensions D1 and E1 do not include mold protrusion.
Allowable protrusion is .010"(0.254 mm) per side. Dimension D1
and E1 include mold mismatch and are measured at the extreme
material condition at the upper or lower parting line.
3. Lead coplanarity is 0.004" (0.102 mm) maximum.
COMMON DIMENSIONS
(Unit of Measure = mm)
SYMBOL MIN NOM MAX NOTE
A 4.191 – 4.572
A1 2.286 – 3.048
A2 0.508 – –
D 12.319 – 12.573
D1 11.430 – 11.582 Note 2
E 12.319 – 12.573
E1 11.430 – 11.582 Note 2
D2/E2 9.906 – 10.922
B 0.660 – 0.813
B1 0.330 – 0.533
e 1.270 TYP
A
A1
B1 D2/E2
B
e
E1 E
D1
D
