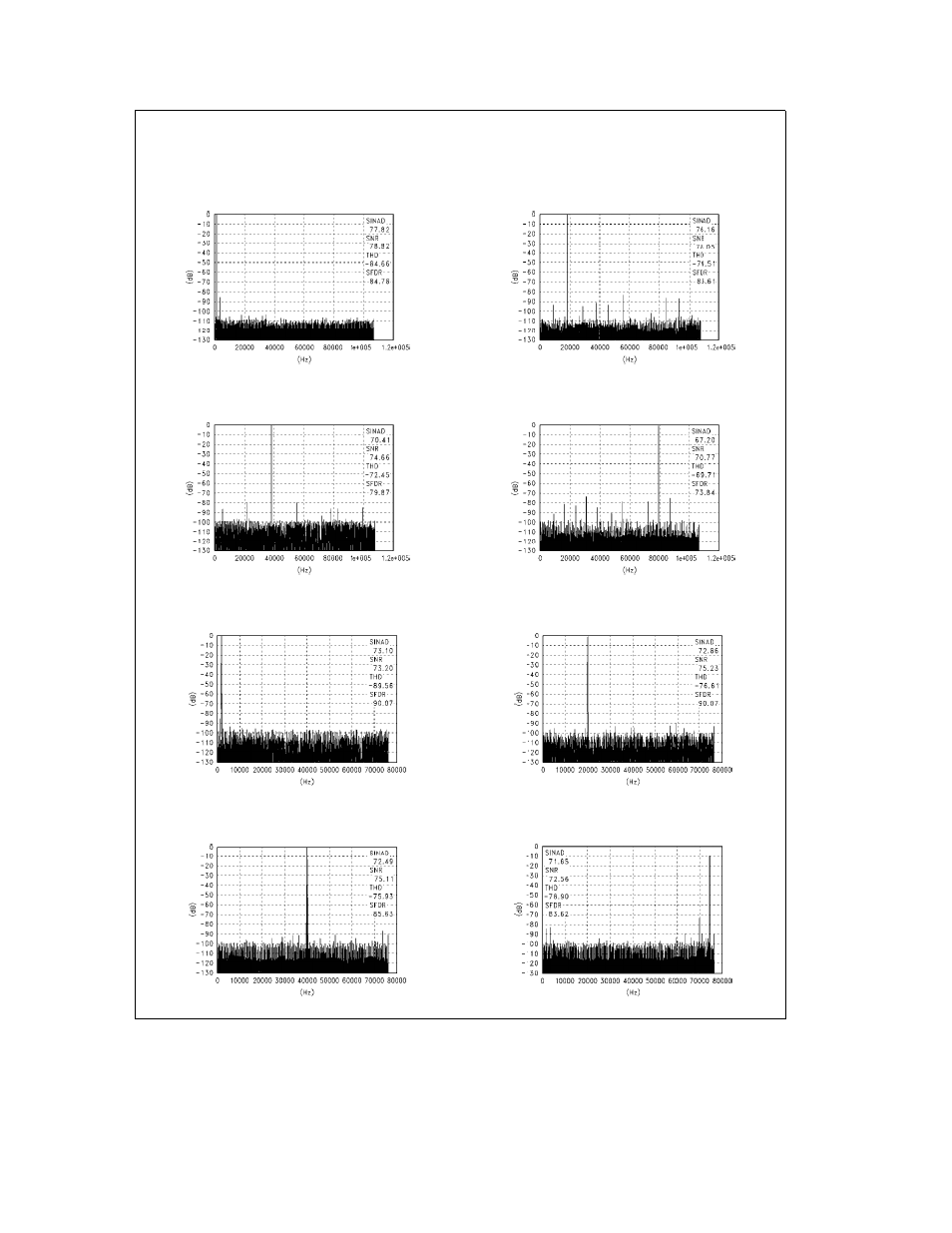

Typical Performance Characteristics
(Continued) The curves were obtained under the following
conditions R
S e 50X T
A e 25 C V
A a e V
D a e 5V V
REF e 4 096V f
CLK e 12 MHz and the sampling rate f
S e 215 kHz
unless otherwise stated
Full Scale Differential 1 099 Hz
Sine Wave Input
TL H 12387 – 26
Full Scale Differential 18 677 Hz
Sine Wave Input
TL H 12387 – 27
Full Scale Differential 38 452 Hz
Sine Wave Input
TL H 12387 – 28
Full Scale Differential 79 468 Hz
Sine Wave Input
TL H 12387 – 29
Half Scale Differential 1 kHz
Sine Wave Input f
S e 153 6 kHz
TL H 12387 – 30
Half Scale Differential 20 kHz
Sine Wave Input f
S e 153 6 kHz
TL H 12387 – 31
Half Scale Differential 40 kHz
Sine Wave Input f
S e 153 6 kHz
TL H 12387 – 32
Half Scale Differential 75 kHz
Sine Wave Input f
S e 153 6 kHz
TL H 12387 – 33
19
