Typical operating characteristics (continued) – Rainbow Electronics MAX5048 User Manual
Page 5
MAX5048
7.6A, 12ns, SOT23 MOSFET Driver
_______________________________________________________________________________________
5

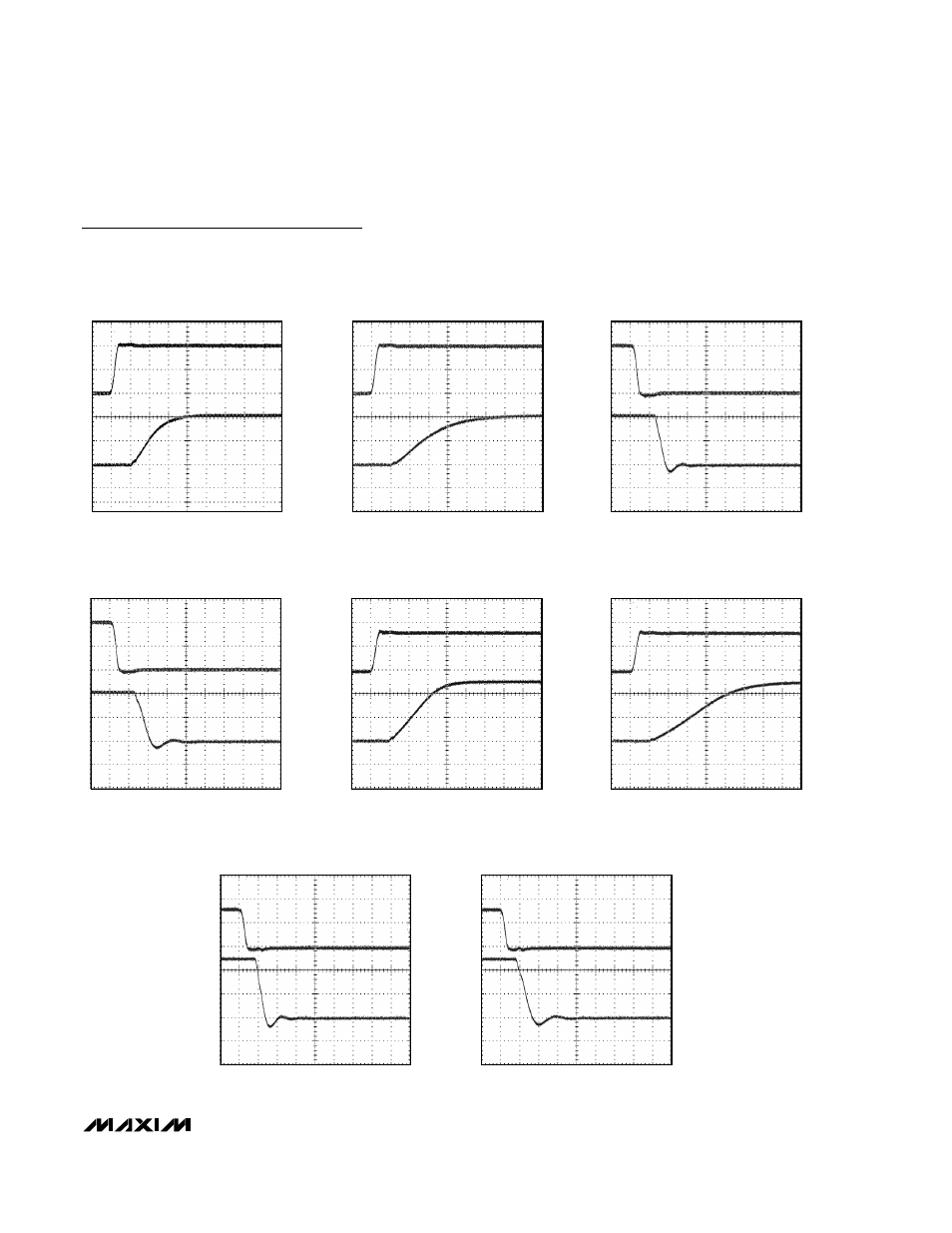

INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +4V, C
L
= 5000pF)
MAX5048 toc10
IN+
2V/div
OUTPUT
2V/div
20ns/div
INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +4V, C
L
= 10,000pF)
MAX5048 toc11
IN+
2V/div
OUTPUT
2V/div
20ns/div
INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +4V, C
L
= 5000pF)
MAX5048 toc12
IN+
2V/div
OUTPUT
2V/div
20ns/div
INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +4V, C
L
= 10,000pF)
MAX5048 toc13
IN+
2V/div
OUTPUT
2V/div
20ns/div
INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +12V, C
L
= 5000pF)
MAX5048 toc14
IN+
5V/div
OUTPUT
5V/div
20ns/div
INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +12V, C
L
= 10,000pF)
MAX5048 toc15
IN+
5V/div
OUTPUT
5V/div
20ns/div
INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +12V, C
L
= 5000pF)
MAX5048 toc16
IN+
5V/div
OUTPUT
5V/div
20ns/div
INPUT VOLTAGE vs. OUTPUT VOLTAGE
(V+ = +12V, C
L
= 10,000pF)
MAX5048 toc17
IN+
5V/div
OUTPUT
5V/div
20ns/div
Typical Operating Characteristics (continued)
(C
L
= 1000pF, T
A
= +25°C, unless otherwise noted.)
