MAX13256
36V H-Bridge Transformer
Driver for Isolated Supplies
Example 3: +24V to Isolated, Regulated ±15V
In Figure 8 , the MAX13256 is used with a 1:1.5 center
tapped transformer and a 4-diode bridge rectifier net-
work (see
Figure 3C ) to supply Q17.1V to a MAX8719
LDO and a 7915 LDO. The circuit produces regulated
Q
15V outputs at up to 100mA.
Isolated DAC/ADC Interface for
Industrial Process Control
The MAX13256 provides isolated power for data con-
verters in industrial process control applications (see
Figure 9 ). The 300mA output current capability allows
for multiple data converters operating across an isola-
tion barrier. The power output capability also supports
circuitry for signal conditioning and multiplexing.

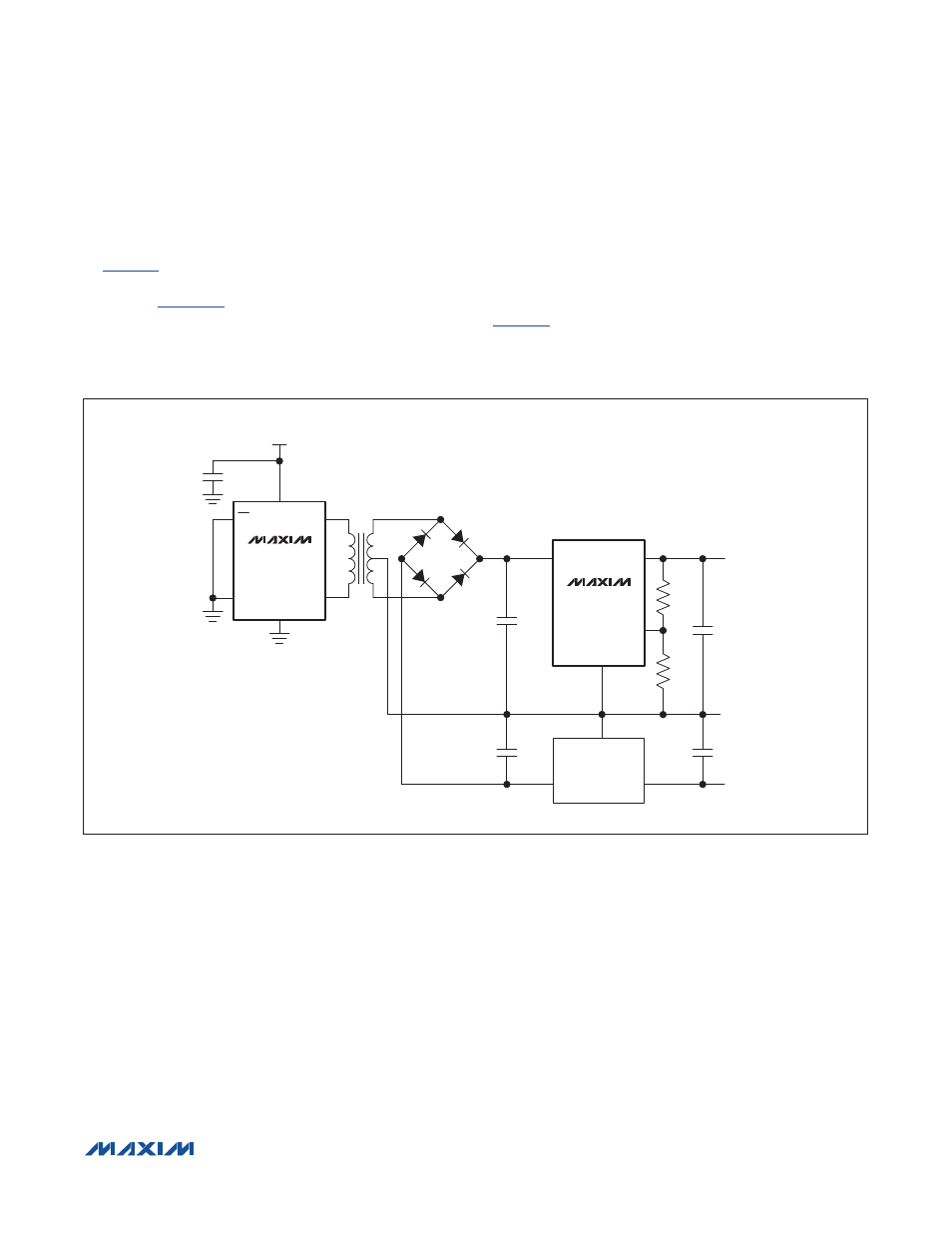

Figure 8. +24V to Isolated, Regulated ±15V
0.1µF
7915
0.1µF
1:1.5 CT 4 x MBRS140
10µF
+24V
ST1
ST2
GND
MAX13256
R1
+15V
-15V
10µF
COMMON
R2
EN
CLK
1µF
MAX8719
