Each transmission consists of a START condition sent by
a master, followed by the MAX7311 7-bit slave address
plus R/W bit, a register address byte, 1 or more data
bytes, and finally a STOP condition (Figure 3).
START and STOP Conditions
Both SCL and SDA remain high when the interface is
not busy. A master signals the beginning of a transmis-
sion with a START (S) condition by transitioning SDA
from high to low while SCL is high. When the master
has finished communicating with the slave, it issues a
STOP (P) condition by transitioning SDA from low to
high while SCL is high. The bus is then free for another
transmission (Figure 3).
Bit Transfer
One data bit is transferred during each clock pulse.
The data on SDA must remain stable while SCL is high
(Figure 4).
Acknowledge
The acknowledge bit is a clocked 9th bit, which the
recipient uses as a handshake receipt of each byte of
data (Figure 5). Thus, each byte transferred effectively
requires 9 bits. The master generates the 9th clock
pulse, and the recipient pulls down SDA during the
acknowledge clock pulse, such that the SDA line is sta-
ble low during the high period of the clock pulse. When
the master is transmitting to the MAX7311, the
MAX7311
2-Wire-Interfaced 16-Bit I/O Port Expander
with Interrupt
_______________________________________________________________________________________ 7
SDA
SCL S
START
CONDITION
P
STOP
CONDITION

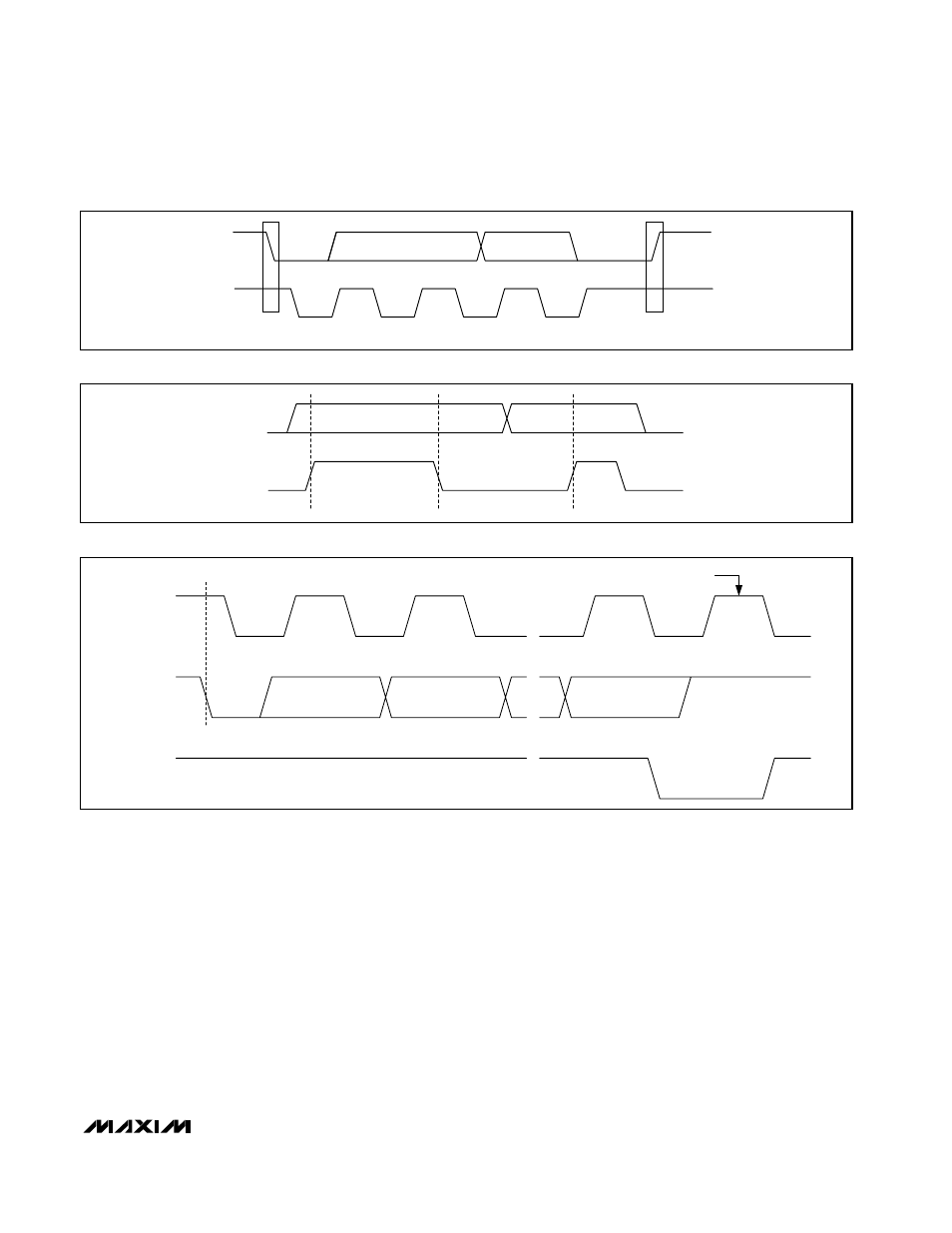

Figure 3. START and STOP Conditions
SDA
SCL
DATA LINE STABLE; DATA VALID CHANGE OF DATA ALLOWED
Figure 4. Bit Transfer
SCL
SDA
BY TRANSMITTER
CLOCK PULSE FOR ACKNOWLEDGMENT START CONDITION
SDA
BY RECEIVER
1 2 8 9
S
Figure 5. Acknowledge
