MAX13234E–MAX13237E
3Mbps RS-232 Transceivers with
Low-Voltage Interface
12 ______________________________________________________________________________________
CHARGE-CURRENT
LIMIT RESISTOR
DISCHARGE
RESISTANCE
STORAGE
CAPACITOR Cs
100pF
R C
1M Ω
R D
1500 Ω
HIGH-
VOLTAGE
DC
SOURCE
DEVICE
UNDER
TEST

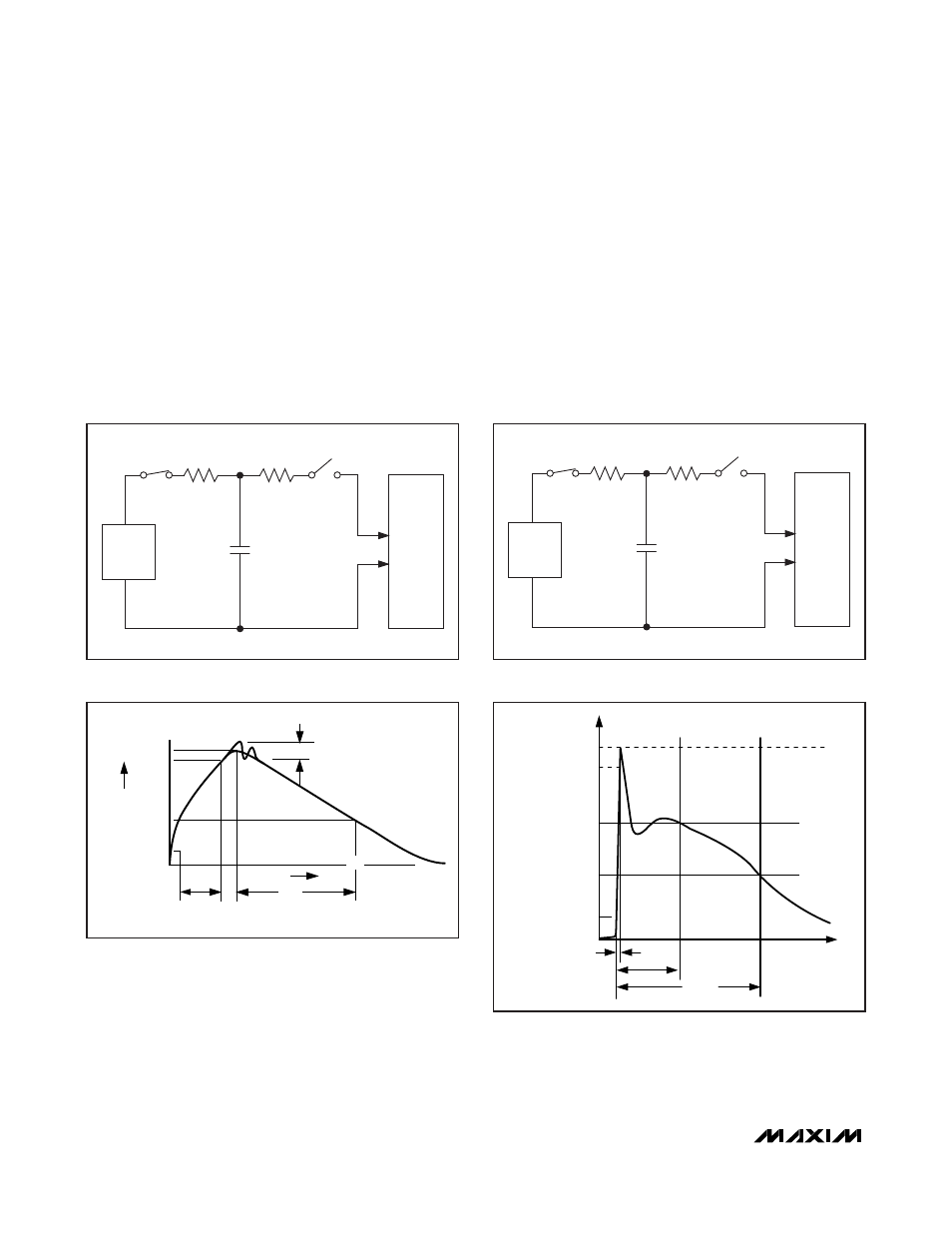

Figure 8a. Human Body ESD Test Model
I P 100%
90%
36.8%
t RL
TIME
t
DL
CURRENT WAVEFORM
PEAK-TO-PEAK RINGING
(NOT DRAWN TO SCALE) Ir
10%
0
0
AMPERES
Figure 8b. Human Body Current Waveform
CHARGE-CURRENT
LIMIT RESISTOR
DISCHARGE
RESISTANCE
STORAGE
CAPACITOR Cs
150pF
R C
50M Ω to 100MΩ
R D
330 Ω
HIGH-
VOLTAGE
DC
SOURCE
DEVICE
UNDER
TEST
Figure 9a. IEC61000-4-2 ESD Test Model
tr = 0.7ns to 1ns
30ns
60ns
t
100%
90%
10%
I PEAK
I
Figure 9b. IEC61000-4-2 ESD Generator Current Waveform
±15kV ESD Protection
ESD-protection structures are incorporated on all pins
to protect against electrostatic discharges encountered
during handling and assembly. The driver outputs and
receiver inputs of the MAX13234E–MAX13237E have
extra protection against static electricity. Maxim’s engi-
neers have developed state-of-the-art structures to pro-
tect these pins against ESD of ±15kV without damage.
The ESD structures withstand high ESD in all states:
normal operation, shutdown, and powered down. After
an ESD event, Maxim’s E versions keep working without
latchup. ESD protection can be tested in various ways;
the transmitter outputs and receiver inputs of this prod-
uct family are characterized for protection to the follow-
ing limits:
1) ±15V Using the Human Body Model
2) ±15kV Using IEC 61000-4-2 Air-Gap Method
3) ±8kV Using IEC 61000-4-2 Contact-Discharge
Method
