ATX / DX
English Manual 75
Gain
Press Gain and use Faders 1 to 3 to adjust gain
for each of the four EQ bands.
Range for the Parametric, Shelve and Cut type:
– Lo Gain: -12 dB to +12 dB
– Mid Gain: -12 dB to +12 dB
– Hi Gain: -12 dB to +12 dB
Range for the Notch filter:
– Lo Gain: -100 dB to 0 dB
– Mid Gain: -100 dB to 0 dB
– Hi Gain: -100 dB to 0 dB
Type
Press and use Faders 1 to 3 to set BW value for
each of the 4 EQ bands.
Range for the Notch filter:
– Lo BW: 0.02 to 1 oct
– Mid BW: 0.02 to 1 oct
– Hi BW: 0.02 to 1 oct
Range for the Parametric filter:
– Lo BW: 0.1 to 4 oct
– Mid BW: 0.1 to 4 oct
– Hi BW: 0.1 to 4 oct
Range for the Shelve filter:
– Lo BW: 3 to 12 dB/oct
– Hi BW: 3 to 12 dB/oct
Range for the Cut filter:
– Lo BW: Bessel or Butterworth
– Hi BW: Bessel or Butterworth
Bandwidth/Q – Key-Values:
– BW Q
– 0.5 2.87
– 0.7 2.04
– 1.0 1.41

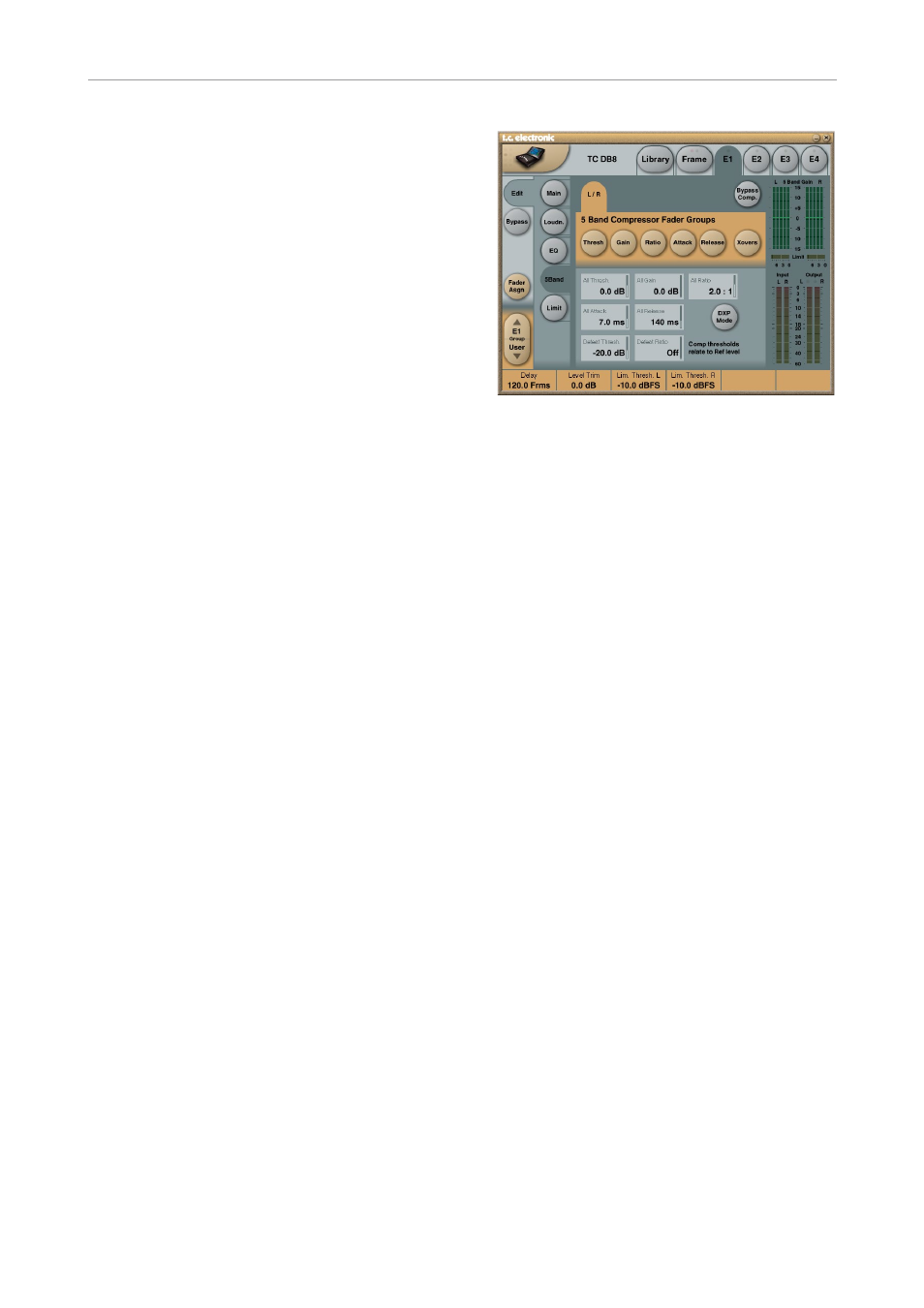

ATX / DX algorithm – 5 band page
ATX / DX algorithm – 5 band page
Xovers
Range:
Xover 1: Off to 1,6 kHz
Xover 2: Off to 4 kHz
Xover 3: 100 Hz to Off,
Xover 4: 250 Hz to Off
Press this button to access the four cross-over
points between the five-bands. The parameters
are automatically assigned to faders 1 to 4.
Defeat Thresh
Range: -3 to -30 dB
This is a unique control which holds the gain
from the multiband compressor below a certain
threshold. No matter the spectral shaping ap-
plied from multiband system, below the Defeat
Threshold, the frequency response is flat and
gain is unity.
Defeat Threshold is relative to Compressor
Threshold, which is relative to Reference Level.
Defeat Ratio
Range: Off to Infinity
Controls how close to the Defeat Threshold the
make-up gain of the compressor is counter-
acted. At high ratios, the signal only has to be
slightly below the Defeat Threshold before the
compressor gain is fully defeated.
