RF-TVMP20 TV Wall Mount

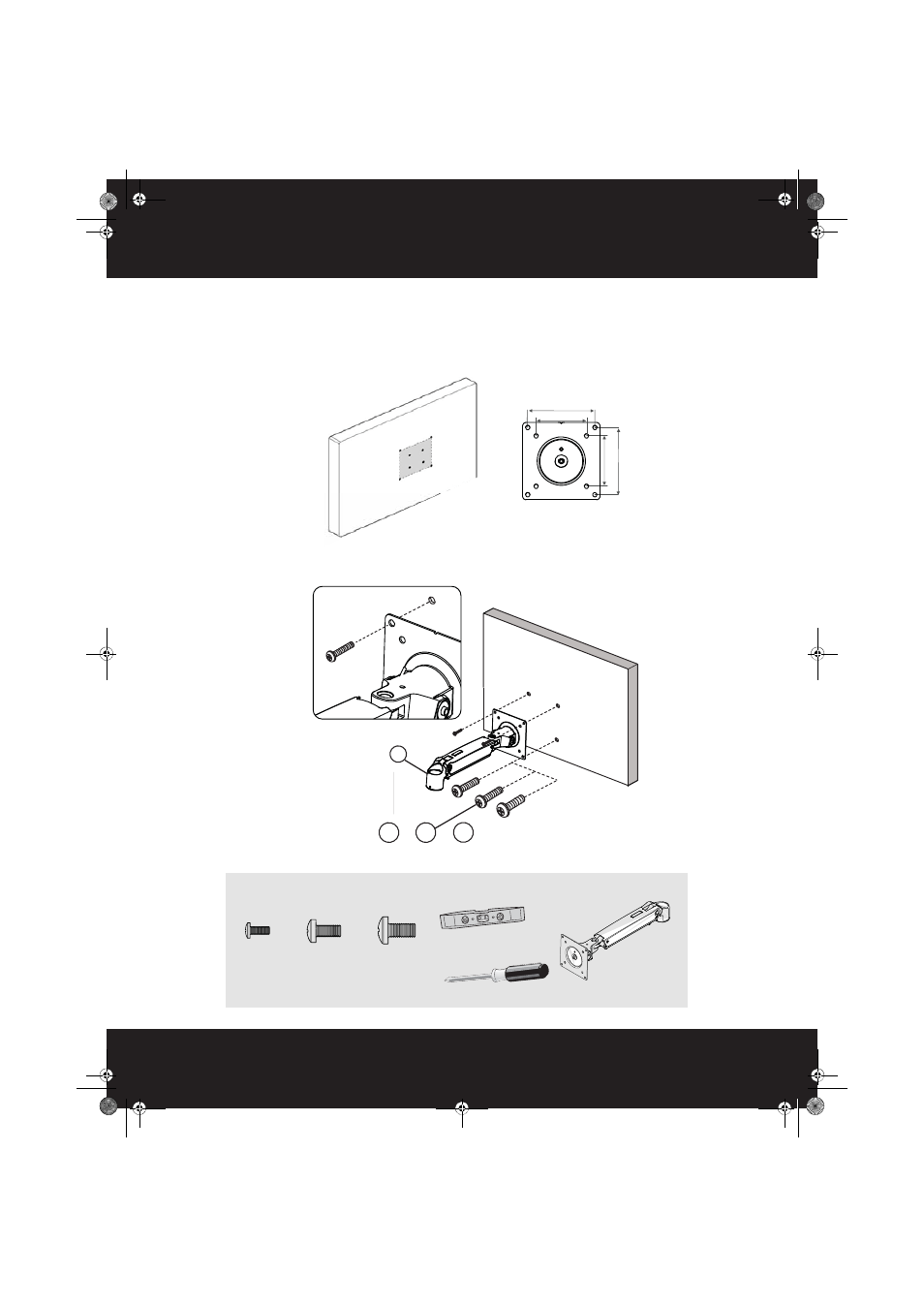

STEP 3: Option 1- Attaching the arm assembly without the adapters

1

Align the arm assembly (B) with the screw holes on the back of the TV.

2

Install screws (M-A, M-B, or M-C) securely into the four holes in the back of the TV. Do not over-tighten.

Note: The arm assembly (B) should be level on the back of the TV. Proceed to Step 4 Determine wall mount location.

You’ll need

75 x 75mm

100 x 100mm

100mm (3-15/16”)

75mm (2-15

/1

6”)

10

0mm (3-15

/1

6”)

75mm (2-15/16”)

OR

M-A

B

OR

M-B

M-C

TV

M-A (4)

M-B (4)

Phillips screwdriver

OR

OR

Screws

M-C (4)

Level

B Arm assembly
