12 Need help? Call 1-800-620-2790 (U.S. and Canada) or 01-800-926-3010 (Mexico)
RF-TVMP20 TV Wall Mount

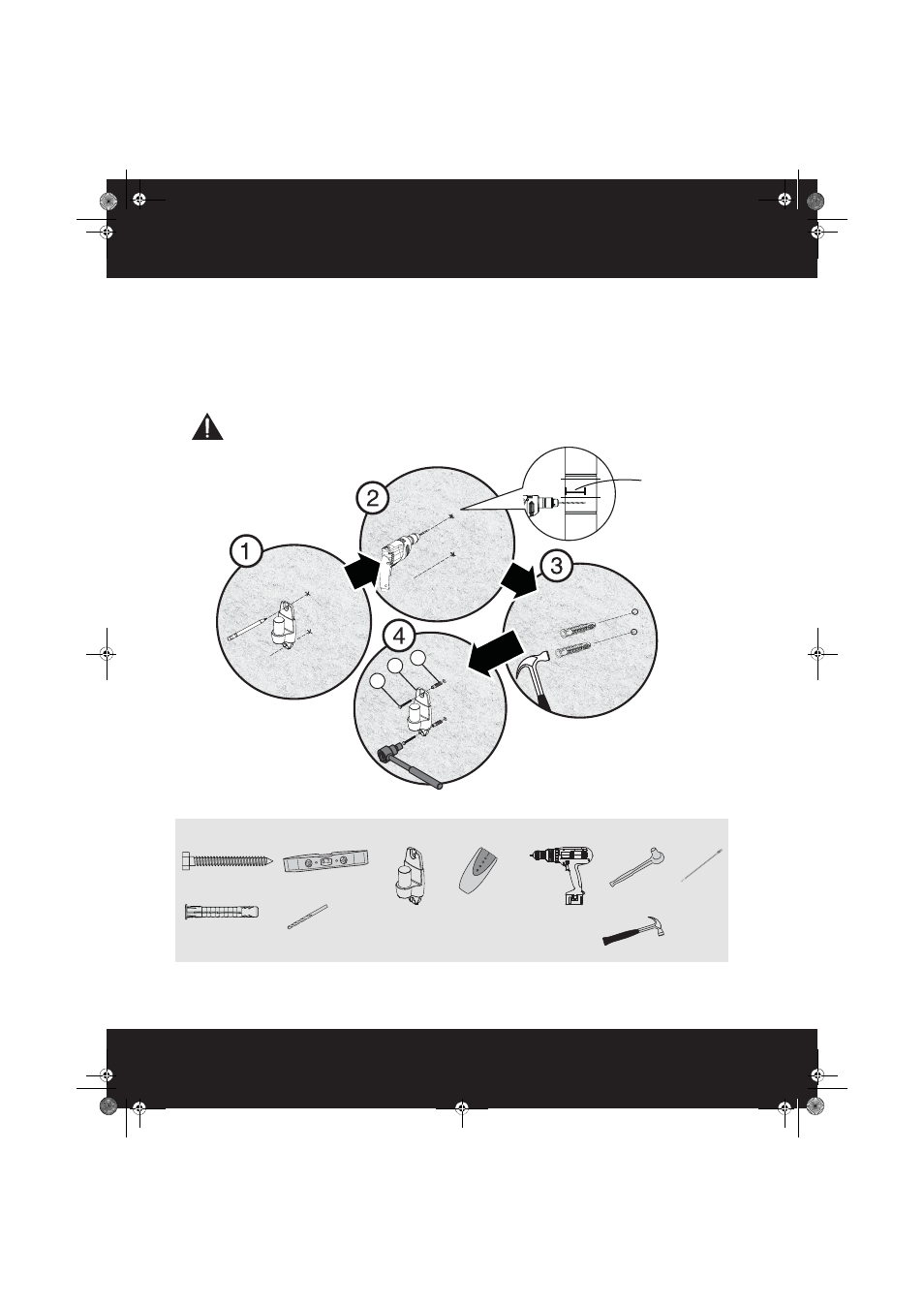

STEP 5 - Option 2: Installing on a solid concrete wall
1 Align the wall plate (A) at the height you determined in the previous step and make sure that it is level. Use a
pencil to mark the lag bolt hole locations (2). Remove the wall plate.
2 Drill pilot holes to a depth of 2-3/4 in. (7 mm) using a 3/8 in. (10 mm) diameter masonry drill bit.
3 Insert the concrete wall anchors (W-B) into the pilot holes and use a hammer to make sure the anchors are
flush with the concrete surface.
4 Align the wall plate (A) with the anchors, insert the lag bolts (W-A) through the holes in the wall plate, then
tighten the lag bolts only until they are firm against the wall plate.
CAUTION: Avoid potential injuries or property damage!
DO NOT over-tighten the lag bolts (W-A).
You’ll need
W-B
A
W-A
2-3/4 in.
(70 mm)
Edge-to edge
stud finder
W-A (2)
Pencil
Drill
3/8" masonry
drill bit
1/2" socket
wrench
Level
W-B (2)
Hammer
A Wall
plate
