9901-UDX-OM (V1.15) 9901-UDX PRODUCT MANUAL 3-23
Operating Instructions

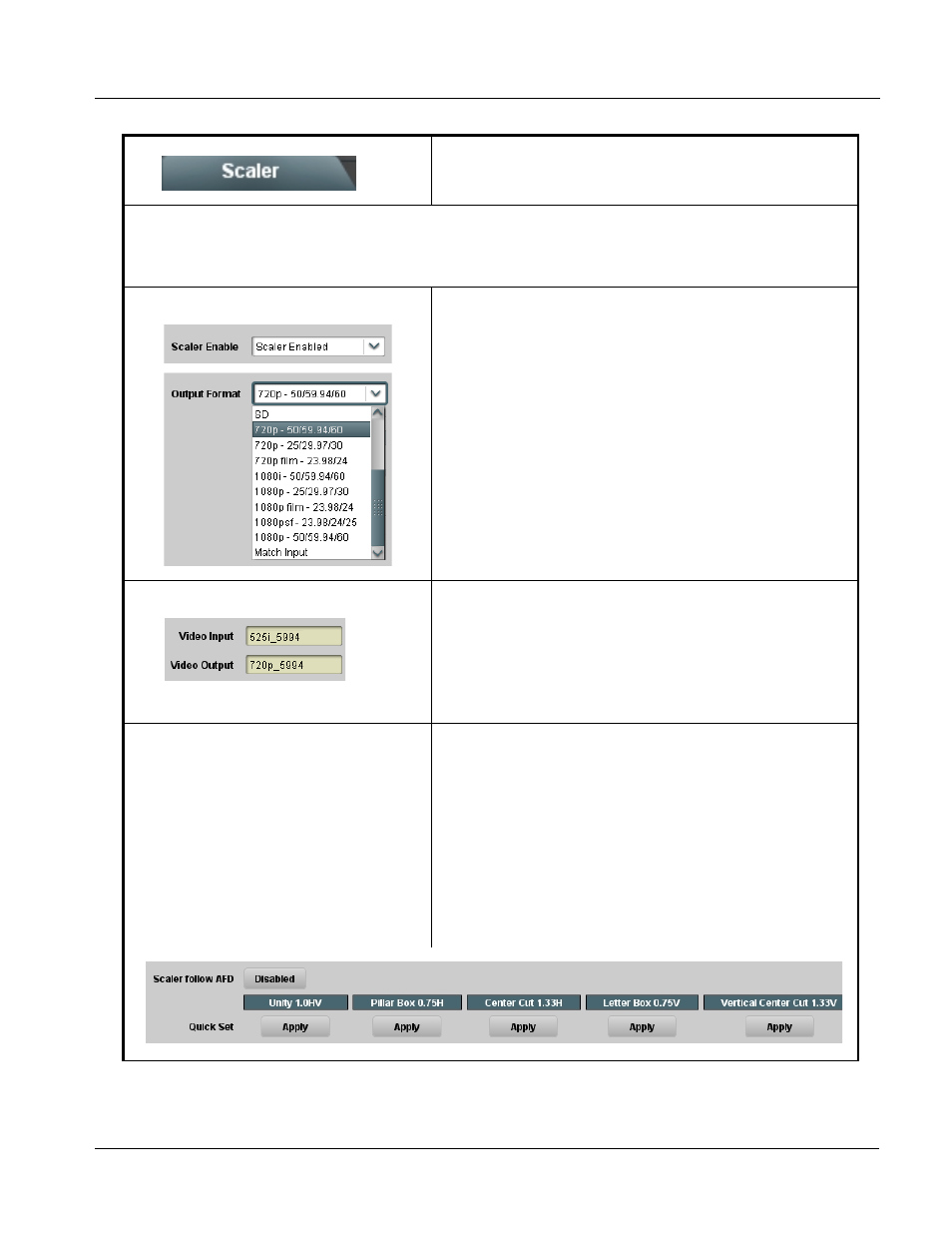

9901-UDX Function Submenu List and Descriptions
Provides program video format up/down/
cross-conversions and aspect ratio controls.
Note: Alternate 9901 base models provide limited scaling as follows:
• 9901-UC – Pass and up-convert only
• 9901-DC – Pass and down-convert only
• 9901-XC – Pass and cross-convert only (i.e., conversion within a general category such as 720p HD to 1080i HD)
• Scaler Enable and Output Format Selector Enables or disables Scaler function and provides conversions as shown
to the left.
Note: Refer to Table 1-3, “Scaler Function Conversions” (page 1-10) in
Chapter 1, “Introduction” for specific output formats and rates for
various inputs supported by the scaler.
Scaler
• Input/Output Video Format Display Displays the input and output formats of the video currently being routed
to the 9901-UDX program video scaler path (in this example, 525i5994
SD video being up-converted to 720p5994). The output format displayed
is the output present on the card Program Video channel routing output.
Note: Rates displayed for progressive formats are frame rates; rates
displayed for interlaced formats are field rates.
Current Input Format
• Standard Quick Set Aspect Ratio
Conversion Selectors
Selects between the standard preset Aspect Ratio Conversions (ARC)
shown below.
Note: • The Scaler follow AFD control also appears on the AFD/WSS/VI
tab and is mutually ganged with the selection performed on either
tab. Refer to AFD/WSS/VI ARC Controls (p. 3-25) for more
information.
• This function is intended for aspect ratio adjustment of a particular
signal without AFD considerations.
- If ARC is being used on a case-by-case basis for a particular
signal, it is easier to use the Scaler ARC tools described here.
- If AFD is to be used to set and apply a standard AFD code label
for ARC, use Follow AFD Settings. Do not perform ARC here;
instead, perform ARC as described in the AFD function
description per AFD/WSS/VI ARC Controls (p. 3-25).
Table 3-2 9901-UDX Function Submenu List — continued
