Troubleshooting
3-66 9901-UDX PRODUCT MANUAL 9901-UDX-OM (V1.15)
DashBoard™ Status/Error Indicators and Displays
Figure 3-9 shows and describes the DashBoard™ status indicators and
displays. These indicator icons and displays show status and error conditions
relating to the 9901-UDX card itself and remote (network) communications.

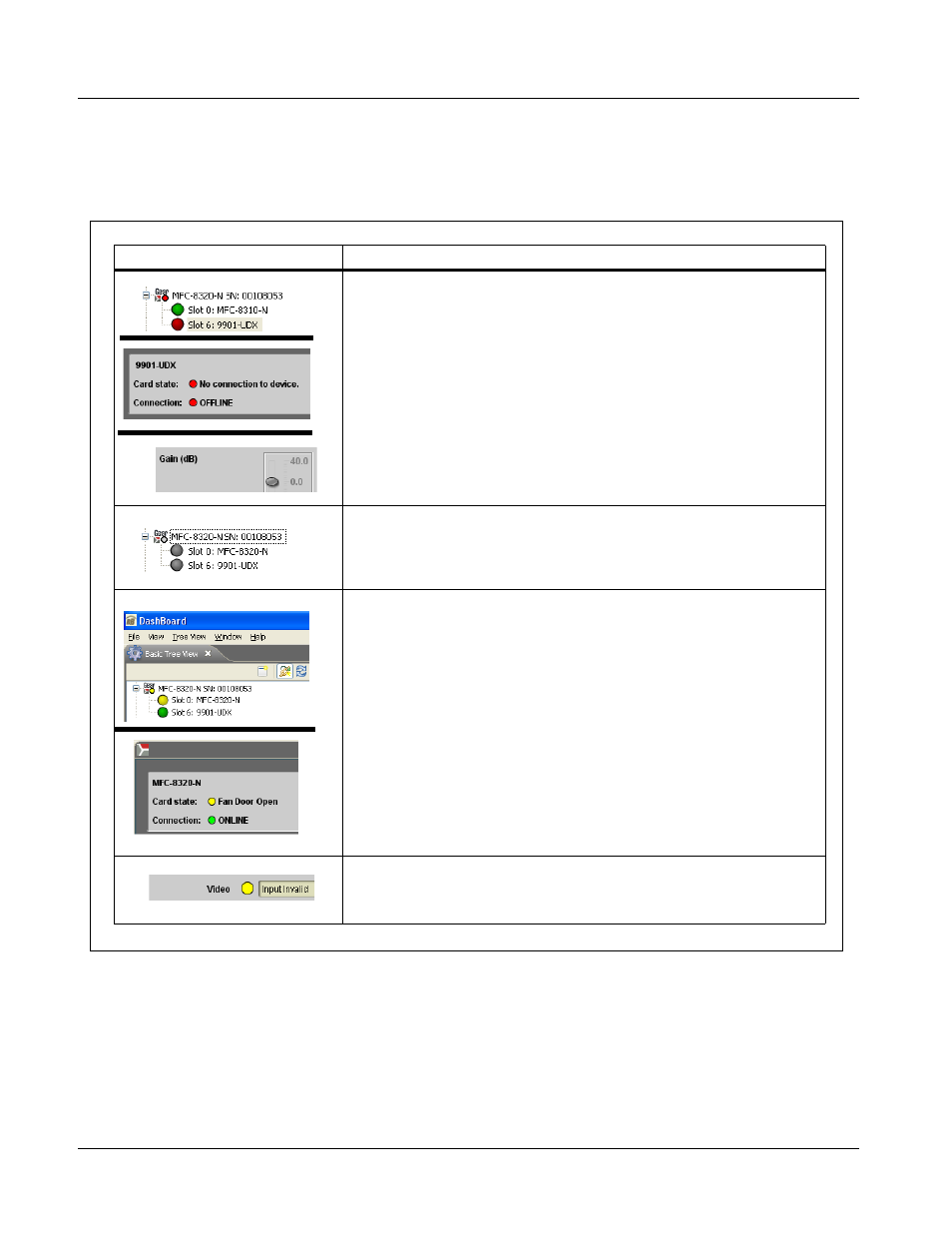

Figure 3-9 DashBoard™ Status Indicator Icons and Displays
Indicator Icon or Display Error Description
Red indicator icon in Card Access/Navigation Tree pane shows card with Error
condition (in this example, the Card Access/Navigation Tree pane shows a general
error issued by the 9901-UDX card in slot 6).
Specific errors are displayed in the Card Info pane (in this example “No connection
to device” indicating 9901-UDX card is not connecting to frame/LAN).
If the 9901-UDX card is not connecting to the frame or LAN, all controls are
grayed-out (as shown in the example here).
Gray indicator icon in Card Access/Navigation Tree pane shows card(s) are not
being seen by DashBoard™ due to lack of connection to frame LAN (in this
example, both a 9901-UDX card in slot 6 and the MFC-8320-N Network Controller
Card for its frame in slot 0 are not being seen).
Yellow indicator icon in Card Access/Navigation Tree pane shows card with Alert
condition (in this example, the Card Access/Navigation Tree pane shows a general
alert issued by the MFC-8320-N Network Controller Card).
Clicking the card slot position in the Card Access/Navigation Tree (in this example
Network Controller Card “Slot 0: MFC-8320-N”) opens the Card Info pane for the
selected card. In this example, a “Fan Door Open” specific error is displayed.
Yellow indicator icon in 9901-UDX Card Info pane shows error alert, along with
cause for alert (in this example, the 9901-UDX is receiving no video input, or a video
input that is invalid for the card and/or its current settings).
