9901-UDX Functional Description
1-14 9901-UDX PRODUCT MANUAL 9901-UDX-OM (V1.15)

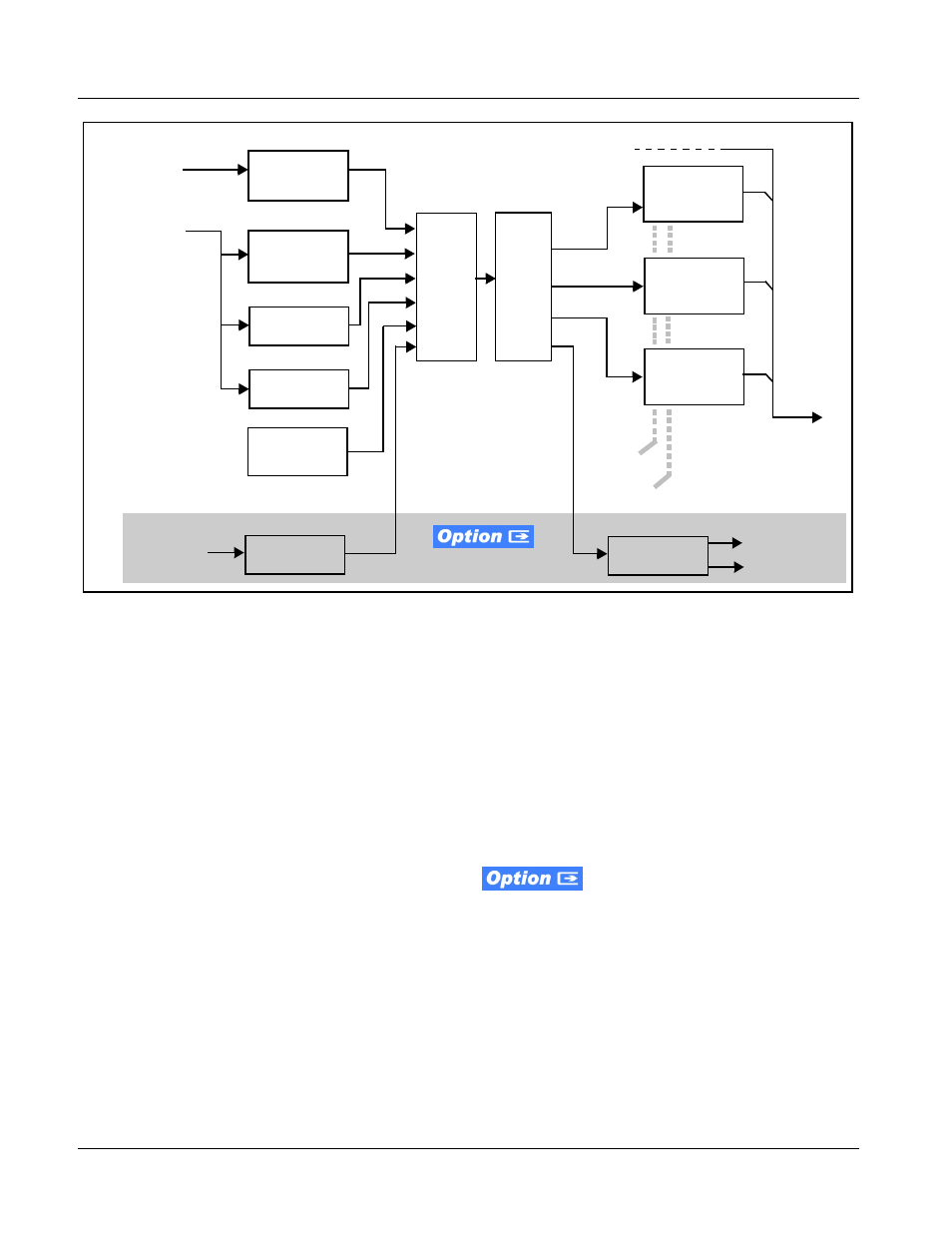

Figure 1-4 Timecode Processor
Closed Captioning Processor
This function provides support for closed captioning setup. When enabled,
the function allows passage of timecode data. When up-conversion from SD
to an HD is active, the function converts waveform-based timecode data to
packet-based timecode data. The function also allows the selection of the
ancillary data line number where the ancillary closed caption data is outputted
when the output is HD. When receiving HD-SDI, both CEA 608 and
CEA 708 are supported, with CEA 608 and CEA 708 (containing CEA 608
packets) converted to line 21 closed captioning on outputs down-converted to
SD (on up-convert of SD, only CEA 608 closed captioning is generated).
Wings Insertion
Option +WINGS allows a symmetrical L-R wings insertion to be integrated
into the card program video output. Wings video is accommodated using a
separate wings SDI input. The wings user interface displays wings timing
relative to the card output video, allowing wings timing offset to be adjusted
such that wings can be properly framed. (The option and its host card does not
provide timing offset control of the wings video; offset must be provided by a
external frame sync card or device controlling the wings video feed.)
The wings L/R insertion width can be manually configured, or can be set to
automatically track with aspect ratio as set by the host card (on cards
equipped with aspect ratio control).
Frame
Reference
SDI VITC
Waveform
Detect/Extract
SDI ATC_LTC
Detect/Extract
SDI ATC_VITC
Detect/Extract
Priority/
Select
Program
Video
Input
SDI VITC
Timecode
Proc/Embed
ATC_VITC
Timecode
Proc/Embed
ATC_LTC
Timecode
Proc/Embed
Insert
Control
Line
Number
Control
Buffer/
Format
3G/HD/SD–SDI
(From UDX Scaler)
Free Run
(Internal Count)
Ref VITC
Waveform
Detect/Extract
Audio LTC
Select/Extract
Audio/
RS-485 LTC
Audio/RS-485
LTC Generate
Audio LTC Out
RS-485 LTC Out
