9035 Function Submenu List and Descriptions
3-50 9035 PRODUCT MANUAL 9035-OM (V4.4)
Dolby ® E Processing and Routing Example (9035-DEC only)
Figure 3-7 shows an example of using the 9035-DEC Audio Input Controls ,
Dolby Decoder , and Embedded Audio Group 1/2 functions to decode a
received Dolby ® E encoded pair and route the decoded channels. The
example also shows routing the metadata to the 9035-DEC DOLBY META
output.
Note that the source and destination correlations shown here are only
examples; any AES or embedded channel pair carrying encoded Dolby
® data
can be decoded. Decoded Dolby ® channels can in turn be routed route to any
AES or embedded channel destination.

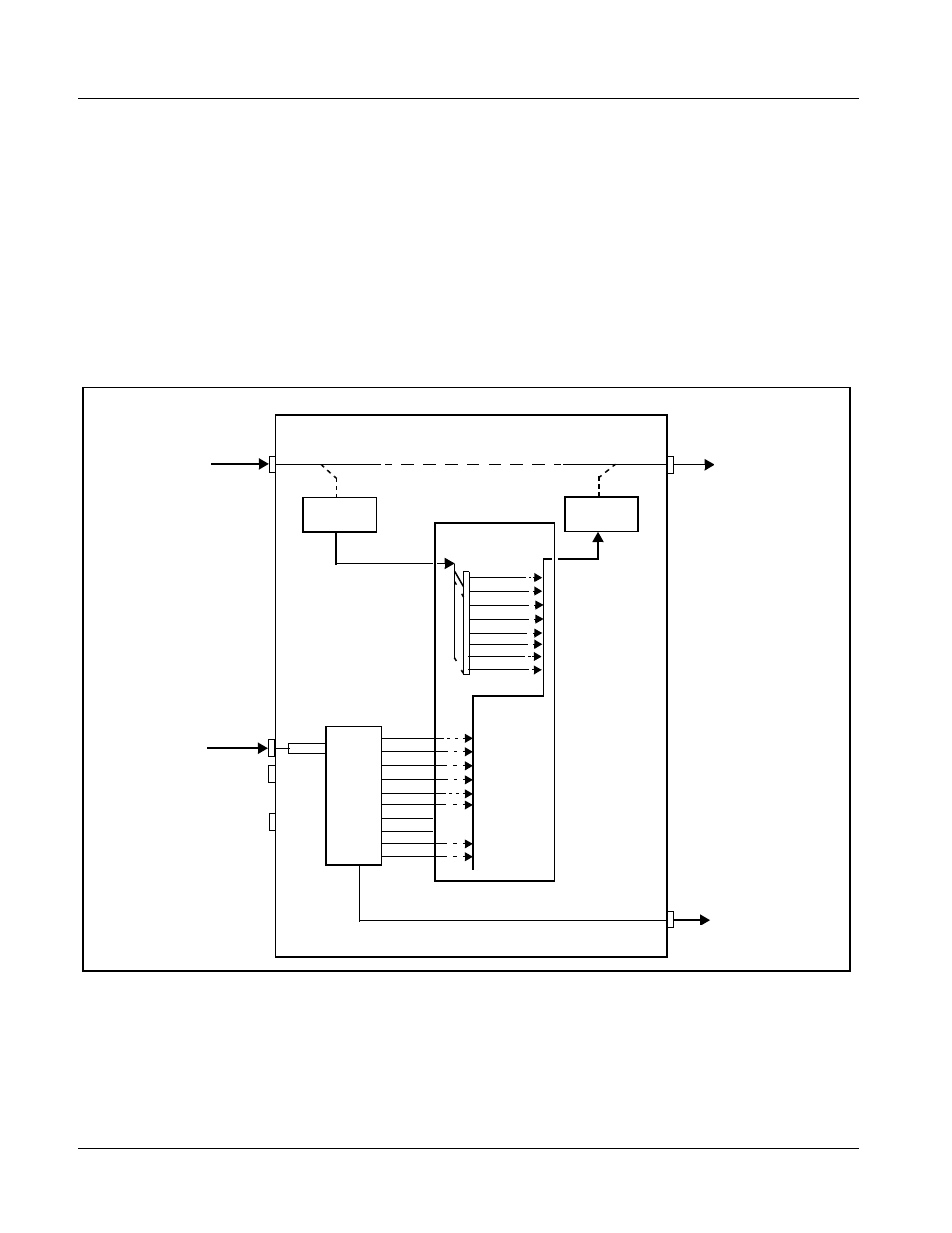

Figure 3-7 Dolby
®
E Processing Example (Sheet 1 of 2)
In the example here, Dolby ® E 5.1+2 data on AES pair 1 is to be decoded and
embedded (using spare embedded channels 9 thru 16) along with the existing
embedded audio channels (embedded channels 1 thru 8). Figure 3-7, sheet 2
shows the 9035-DEC control settings (using DashBoard™) that result in this
routing.
Embed Ch 1
AES IN 1
Embed Ch 2
AES Ch 1
AES Ch 2
SDI IN
Audio
De-Embed
Embed Ch 3
Embed Ch 4
Embed Ch 5
Audio Embed/
Routing
Embed Ch 9
Embed Ch 10
Audio
Embed
SDI OUT
AES IN 2
AES IN 8
9035-DEC
Video Feed
(with eight
embedded audio
channels) Video Feed (with
eight original
embedded audio
channels and
added Dolby
®
5.1+2 embedded
channels)
Embed Ch 11
Embed Ch 12
Embed Ch 13
Embed Ch 14
Embed Ch 15
Embed Ch 16
Embed Ch 6
•
•
•
Dolby
Decode
Dolby Ch 1
Dolby Ch 2
Dolby Ch 3
Dolby Ch 4
Dolby Ch 5
Dolby Ch 6
Dolby Ch 7
Dolby Ch 8
Dolby Mix 1
Dolby Mix 2
Embed Ch 7
Embed Ch 8
Dolby ® E
Feed (5.1+2)
RS-485 Dolby
®
Metadata
DOLBY
META
[not used]
[not used]
