9035-OM (V4.4) 9035 PRODUCT MANUAL 3-27
Operating Instructions
9035 Function Submenu List and Descriptions
AES Audio Out Pairs 1-4
This function routes audio sources to discrete AES output
channels 1 thru 8 (AES Audio Out Pairs 1-4). It also
provides Gain and Phase Invert controls for each channel.
Table 3-2 9035 Function Submenu List — continued

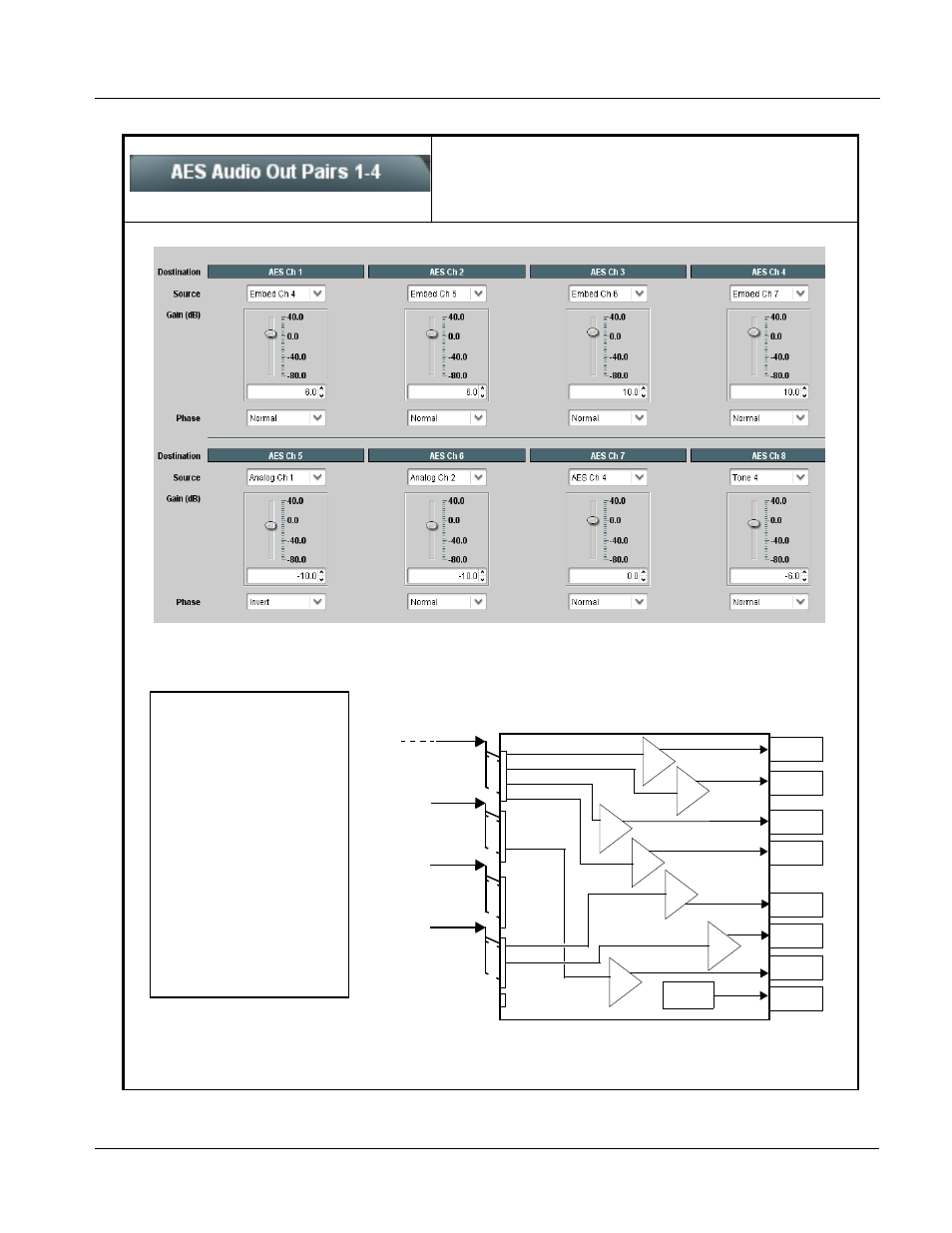

The example above shows
various Source selections and
individual audio control settings
for various audio sources fed to
the Destination channels AES
Ch 1 thru AES Ch 8, with the
resulting setup (right).
The source-to-destination
correlation shown here is only
an example; any of the sources
on the left can connect to any of
the destinations on the right.
The controls shown here are
described in detail on the
following pages. Refer to Audio
Routing Example Using
DashBoard™ (p. 3-47) for more
examples of using these
controls.
Embed Ch 4
AES I/O (1-4)
AES IN (5-8)
AN-AUD
IN (1-8)
6 dB
6 dB
10 dB
10 dB
–10 dB
–10 dB
0 dB
+
+
+
+
–
+
+
Embedded SDI
Channels 1 – 16
Embed Ch 5
AES Ch 4
AES Ch 14
AES Ch 1
AES Ch 2
AES Ch 3
AES Ch 4
AES Ch 5
AES Ch 6
AES Ch 7
AES Ch 8
AES Audio Out
Pairs 1-4
(Ch 1-8)
Analog Ch 1
Embed Ch 6
Embed Ch 7
Analog Ch 2
TG4
–6 dB
