Cobalt Digital COMPASS 9035 Analog and SDI Input to SDI Output Converter - Manual (Page 58)

3

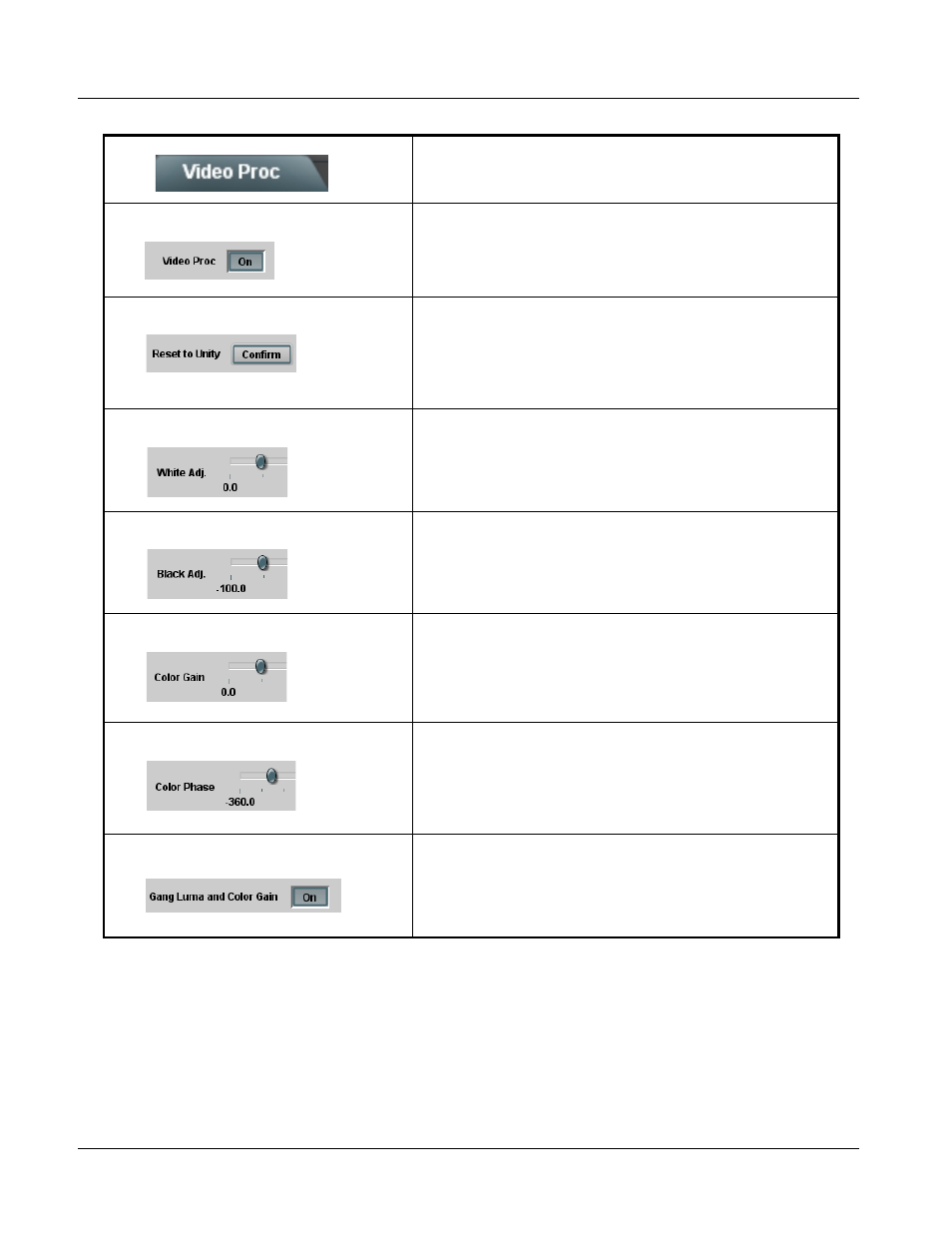

9035 Function Submenu List and Descriptions
3-14 9035 PRODUCT MANUAL 9035-OM (V4.4)
This function provides the following Video Proc parametric
controls
• Video Proc Video Proc (On/Off) provides master on/off control of all Video Proc
functions.
• When set to Off, all processing is bypassed.
• When set to On, currently displayed parameter settings take effect.
• Reset to Unity Reset to Unity provides unity reset control of all Video Proc functions.
When Confirm is clicked, a Confirm? pop-up appears, requesting
confirmation.
• Click Yes to proceed with the unity reset.
• Click No to reject unity reset.
• White Adj. Adjusts and displays gain percentage applied to Luma (Y channel).
(0% to 200% range in 0.1% steps; unity = 100%)
Video Proc
• Black Adj. Adjusts and displays lift applied to Y (Luma).
(-100% to 100% range in 0.1% steps; null = 0.0%)
• Color Gain Adjusts and displays gain percentage (saturation)
applied to C (Chroma).
(0% to 200% range in 0.1% steps; unity = 100%)
• Color Phase Adjusts and displays phase angle applied to Chroma.
(-360° to 360° range in 0.1° steps; null = 0°)
• Gang Luma and Color Gain When set to On, changing either the Color Gain or White Adj. controls
increases or decreases both the Video and Chroma levels by equal
amounts.
Table 3-2 9035 Function Submenu List — continued
