Troubleshooting
9085 Card Edge Status/Error Indicators and Display

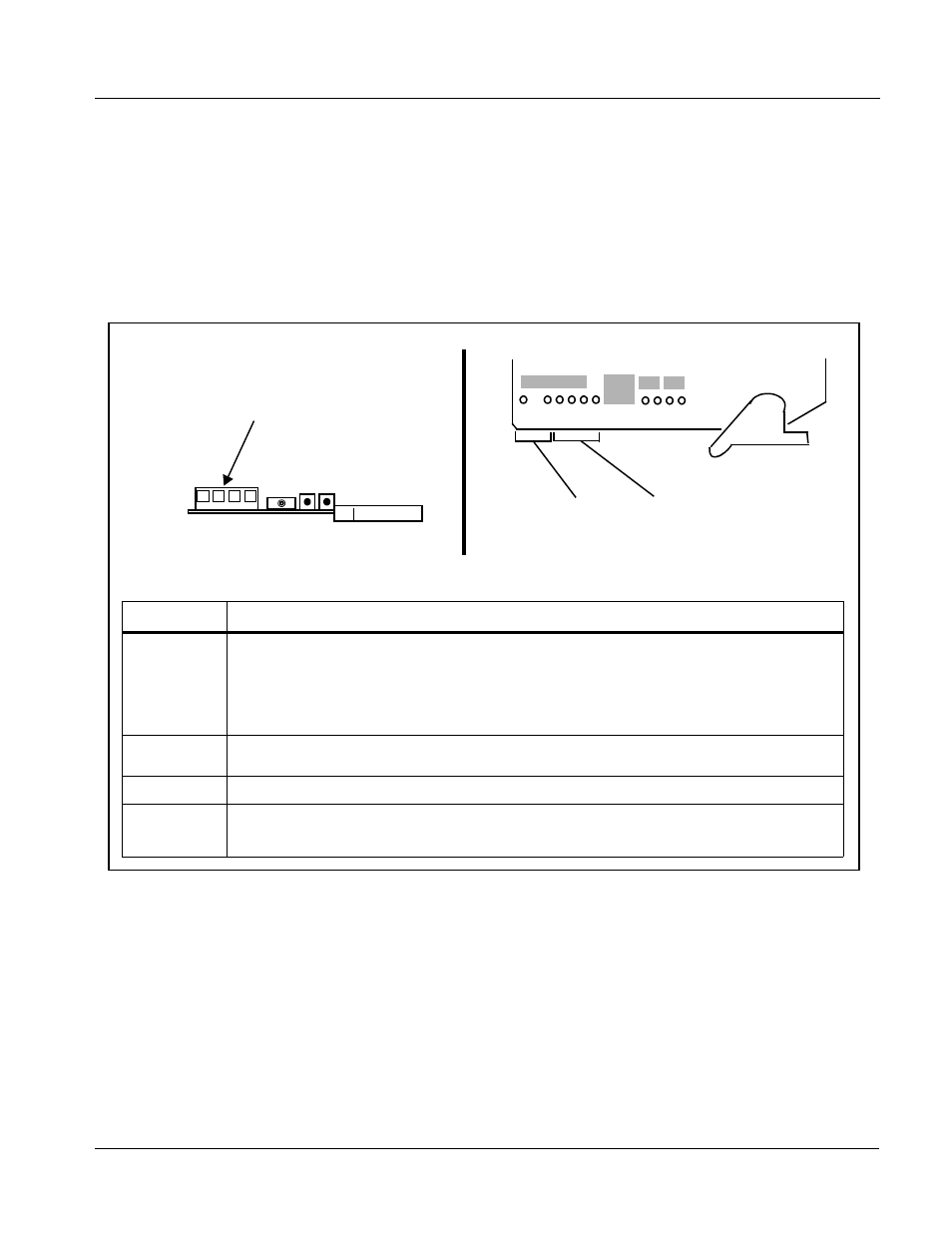

Figure 3-7 shows and describes the 9085 card edge status indicators and
display. These indicators and the display show status and error conditions
relating to the card itself and remote (network) communications (where
applicable). Because these indicators are part of the card itself and require no
external interface, the indicators are particularly useful in the event of
communications problems with external devices such as network remote
control devices.
Figure 3-7 9085 Card Edge Status Indicators and Display
4-Character Alphanumeric Display
RM
T
ERR 1
080
72
0
62
5
52
5
Input Format
Indicators
Status/Error
Indicators
Item Function
Alphanumeric
Display Displays 4-digit alphanumeric code indicating status or errors as follows:
• E0XX: Video Errors
• E002: Video Acquiring Lock
• E1XX: Audio Errors
• E100: Analog Input Clipping
RMT LED Blue LED flashes when 9085 is receiving control message from remote network control (e.g., DashBoard™
or Cobalt
® Remote Control Panel)
ERR LED Red LED illuminates when 9085 unable to lock to input standard.
Input Format
LEDs Four blue LEDs indicate the input signal raster format being received and locked onto by the 9085 (1080,
720, 625, 525). Continuous cycling of the LEDs indicates the 9085 has not locked onto a particular format (as
in the case of no signal input).
