9085-OM (V4.3) 9085 PRODUCT MANUAL 3-11
Operating Instructions

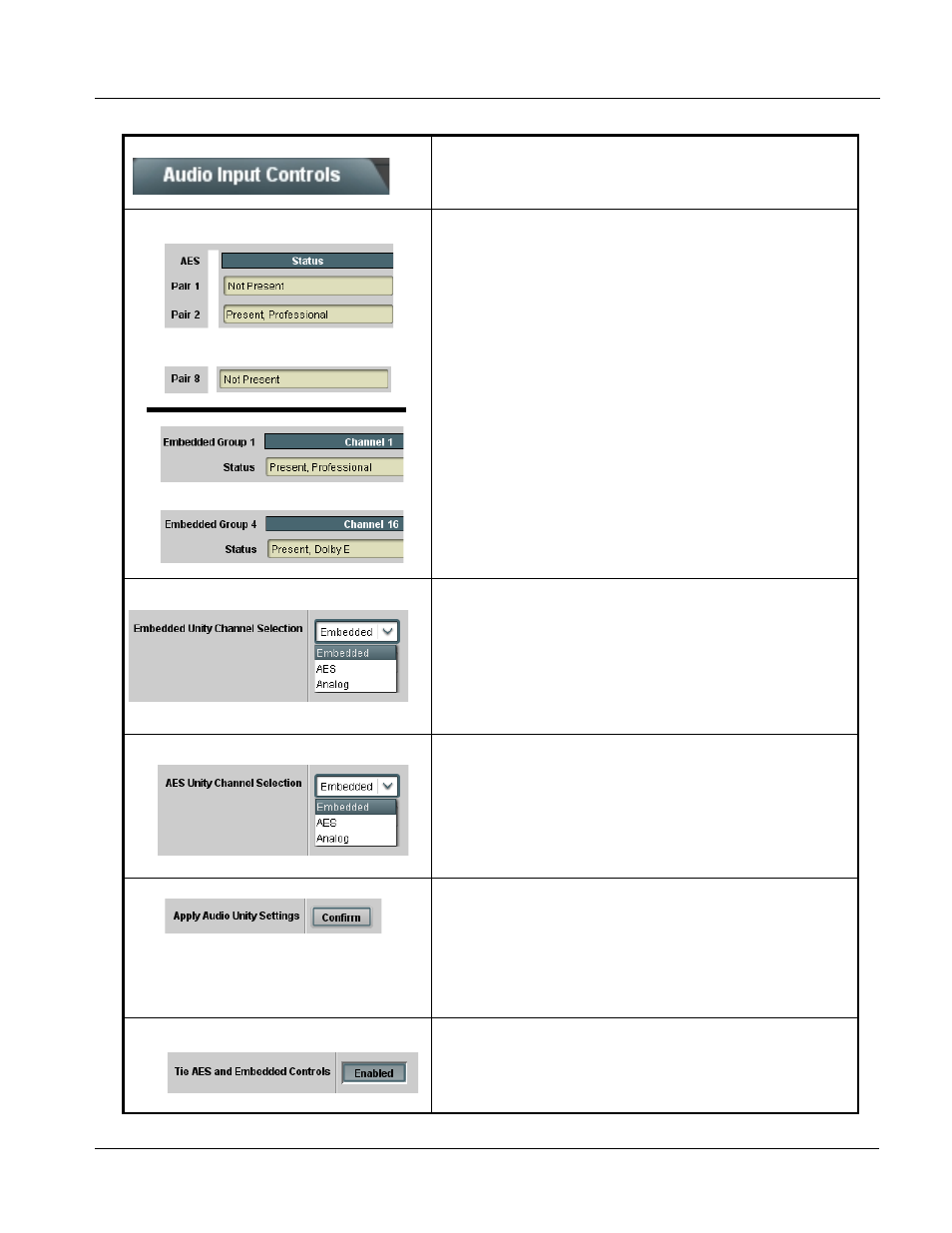

9085 Function Submenu List and Descriptions
(continued)
• Status Displays Individual signal status displays for AES pairs 1-8, and embedded audio
channels 1-16 as follows:
• Not Present: Indicates AES pair or embedded channel does not
contain recognized audio PCM data.
Note: Channel displaying Not Present may still carry usable audio
data with Not Present being displayed due to invalid
headers.
• Present, Professional: Indicates AES pair or embedded channel
contains recognized AES audio PCM data.
• Present, Consumer: Indicates AES pair or embedded channel
contains audio PCM data other than AES (for example, S/PDIF).
• Present, Dolby E: Indicates AES pair or embedded channel
contains Dolby ® E encoded data.
• Present, Dolby Digital: Indicates AES pair or embedded channel
contains Dolby ® Digital encoded data.
Note: Dolby status displays shown to the left only occur for valid
Dolby ® signals meeting SMPTE 337M standard.
The 9085 card does not perform Dolby ® decoding on the
signal. Although the 9085 controls will appear to be usable
for this signal tag, the signal is passed with 1-to-1 routing
and all related gain and polarity controls set to unity.
• Embedded Unity Channel Selection Selects unity reset of Embedded Audio Group 1/2 and 3/4 controls and
re-establishes default 1-to-1 routing as follows:
• Embedded: Routes Embedded Ch 1 thru Ch 16 as sources to
destination channels Embedded Ch 1 thru Embedded Ch 16.
• AES: Routes AES Ch 1 thru Ch 16 as sources to destination
channels Embedded Ch 1 thru Embedded Ch 16.
• Analog: Routes Analog Ch 1 thru Ch 8 as sources to destination
channels Embedded Ch 1 thru Embedded Ch 8. Sets Embedded
Ch 9 thru Ch 16 to Silence.
• AES Unity Channel Selection Selects unity reset of AES Outputs Pairs 1-4 and 5-8 controls and
re-establishes default 1-to-1 routing as follows:
• Embedded: Routes Embedded Ch 1 thru Ch 8 as sources to
destination channels AES Ch 1 thru AES Ch 8.
• AES: Routes AES Ch 1 thru Ch 8 as sources to destination
channels AES Ch 1 thru AES Ch 8.
• Analog: Routes Analog Ch 1 thru Ch 8 as sources to destination
channels AES Ch 1 thru AES Ch 8.
To apply the selections, click the Confirm button. When Confirm is
clicked, a Confirm? pop-up appears, requesting confirmation.
For any selection following confirm, the destination channel controls are
default reset as follows:
• Gain is to unity
• Phase control is set to Normal
• Channel is set to Unmuted
• Tie AES and Embedded Controls When set to Enabled, gangs Gain, Phase, and Mute controls for
same-numbered Embedded and AES channels 1 thru 8. Ganging is
bilateral, with Embedded channel control settings affecting corresponding
AES channel controls, and vice-versa.
Table 3-2 9085 Function Submenu List — continued
•
•
•
•
•
•
