Installing a Rear I/O Module
2-8 9085 PRODUCT MANUAL 9085-OM (V4.3)
RM20-9085-D

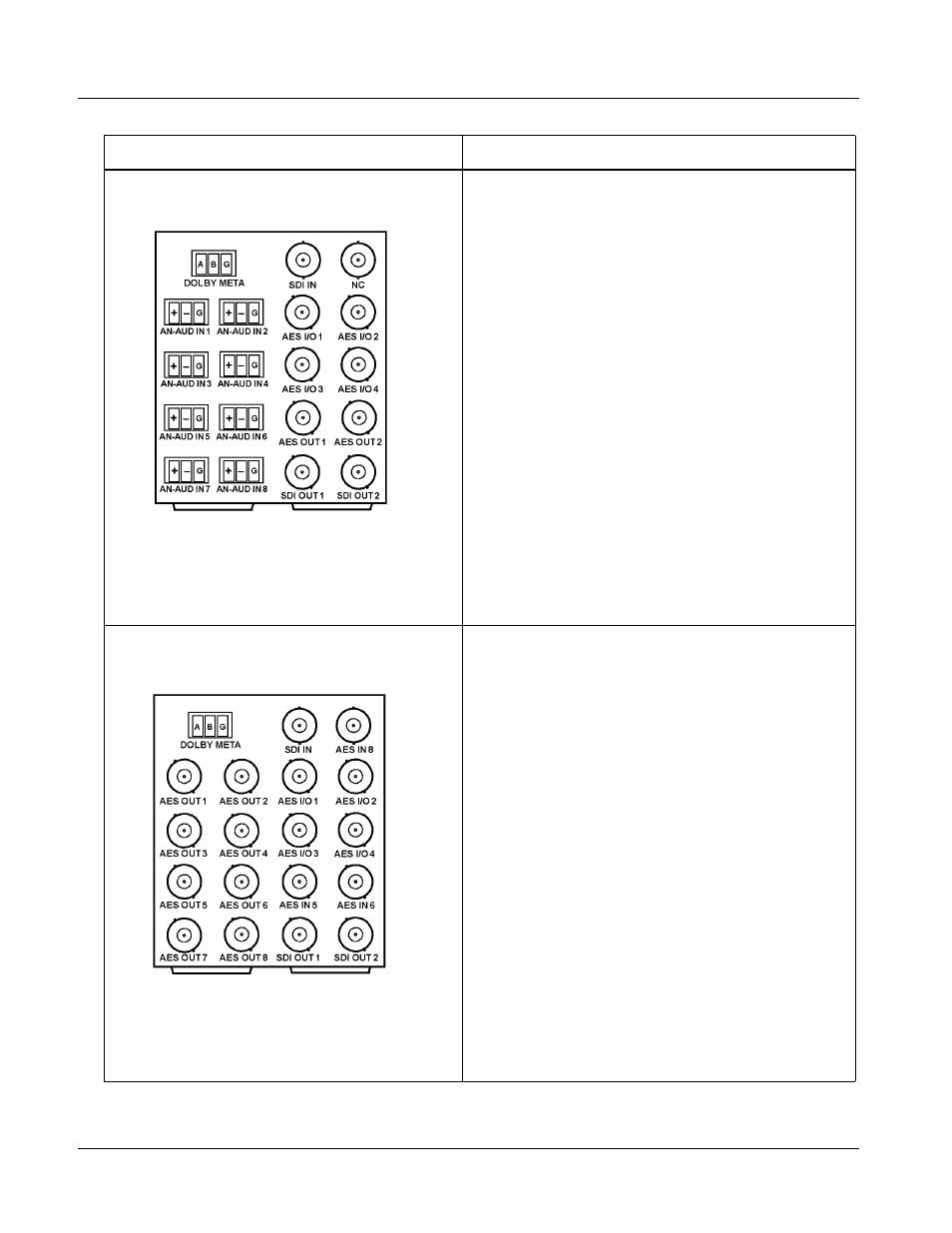

Provides the following connections:
• HD/SD-SDI coaxial input (SDI IN)
• Four AES I/O coaxial input/outputs (AES I/O 1 thru
AES I/O 4; I/O function of each connection is
user-configurable)
• Two dedicated AES coaxial audio outputs
(AES OUT 1 and AES OUT 2)
• Eight analog balanced audio inputs (AN-AUD IN 1
thru AN-AUD IN 8)
• RS-485 LTC / Metadata I/O Port
• Two buffered SDI coaxial outputs (SDI OUT)
Note: For AES I/O 1 thru AES I/O 4 on
RM20-9085-D Rear I/O Module to function as
inputs, AES I/O switches S11 – S14 must be
set to Input (factory default).
See Setting I/O Switches for AES I/O (1-4)
Ports (p. 2-1) for more information.
Note: AES OUT 1 and AES OUT 2 on
RM20-9085-D Rear I/O Module always
function as outputs regardless of whether
AES I/O 1 or AES I/O 2 are used as inputs or
outputs.
RM20-9085-E
Provides the following connections:
• HD/SD-SDI coaxial input (SDI IN)
• Four AES I/O coaxial input/outputs (AES I/O 1 thru
AES I/O 4; I/O function of each connection is
user-configurable)
• Three dedicated AES coaxial audio inputs
(AES IN 5, AES IN 6, AES IN 8)
• Eight dedicated AES coaxial audio outputs
(AES OUT 1 thru AES OUT 8)
• RS-485 LTC / Metadata I/O Port
• Two buffered SDI coaxial outputs (SDI OUT)
Note: For AES I/O 1 thru AES I/O 4 on
RM20-9085-E Rear I/O Module to function as
inputs, AES I/O switches S11 – S14 must be
set to Input (factory default).
See Setting I/O Switches for AES I/O (1-4)
Ports (p. 2-1) for more information.
Note: AES OUT 1 thru AES OUT 4 on
RM20-9085-E Rear I/O Module always
function as outputs regardless of whether
AES I/O 1 thru AES I/O 4 are used as inputs
or outputs.
Table 2-1 9085 Rear I/O Modules — continued
9085 Rear I/O Module Description
