9085-OM (V4.3) 9085 PRODUCT MANUAL 3-21
Operating Instructions

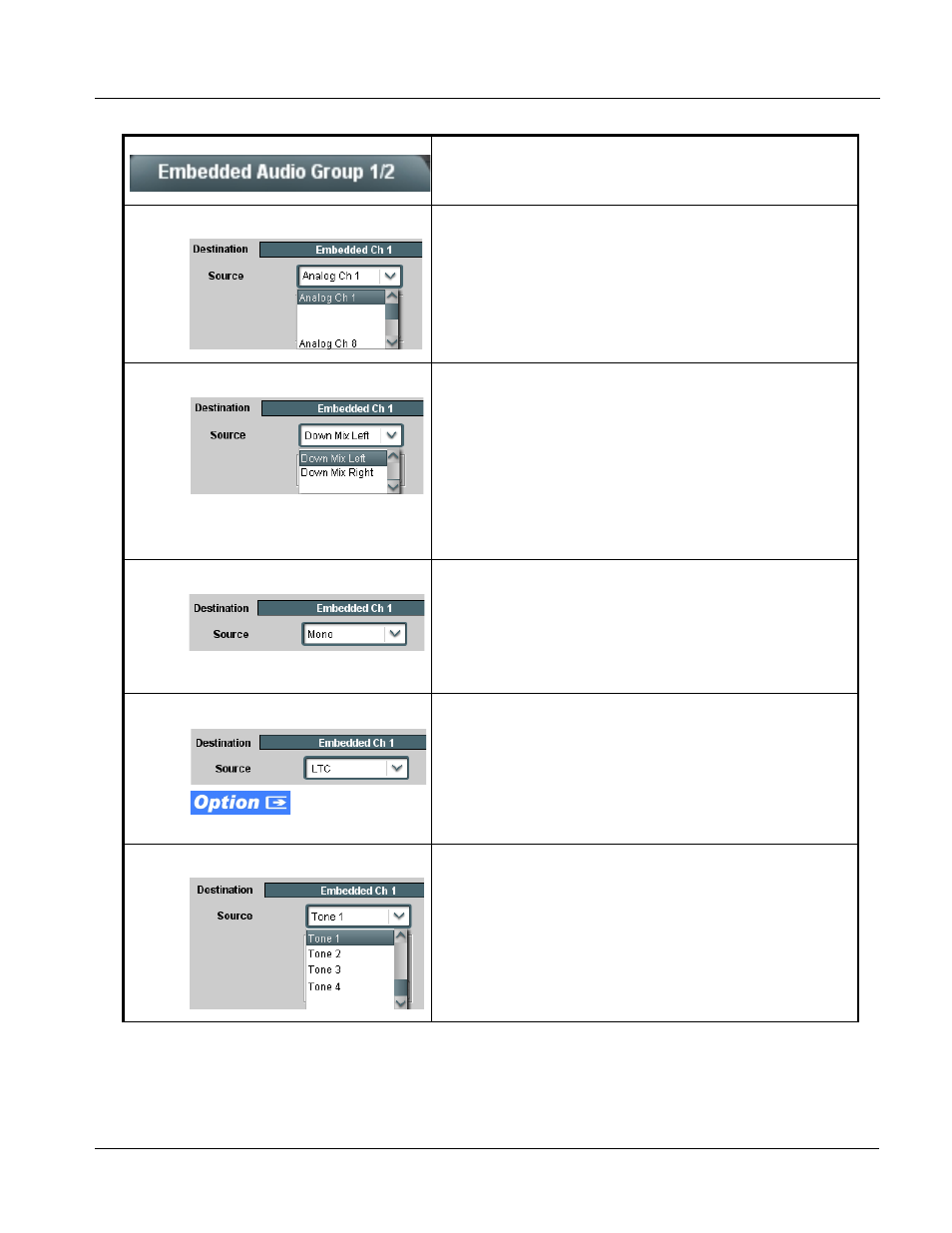

9085 Function Submenu List and Descriptions
(continued)
• Analog Ch 1 thru Ch 8 as Source Analog Ch 1 thru Analog Ch 8 range in Source drop-down list enables a
balanced-input analog channel (Ch 1 thru Ch 8) to be the source for the
selected destination Embedded Audio Group channel.
(In this example, Analog Ch1 is the source for destination
Embedded Ch 1)
• Down Mix Left or Right as Source Down Mix Left and Down Mix Right selections in Source drop-down list
allow either downmixer left or right channel to be the source for the
selected destination Embedded Audio Group channel.
(In this example, the Down Mix Left channel is the source for destination
Embedded Ch 1)
Note: Down Mix Left and Down Mix Right channels are a stereo pair
derived from the L, R, C, Ls, and Rs channel inputs selected using
the Audio Mixing function. The stereo pair consists of basic
L/R PCM signals with no additional encoded information.
Refer to Audio Mixing function description on page 3-36 for more
information.
• Mono Mix as Source Mono selection in Source drop-down list allows mono mix content to be
the source for the selected destination Embedded Audio Group channel.
(In this example, the mono content is the source for destination
Embedded Ch 1)
Note: Mono mix content is set up using Mono Mixer Selection in the
Audio Mixing function). Refer to Audio Mixing function
description on page 3-36 for more information.
• Audio LTC as Source LTC selection in Source drop-down list allows any timecode format
received by the card to be outputted as audio LTC over an embedded
audio output (destination) channel.
(In this example, audio LTC is the source for destination Embedded Ch 1)
Note: • When LTC is selected as source, Gain and Mute controls are
disabled.
• Refer to Timecode function description on page 3-32 for more
information.
• Tone Generator 1 thru 4 as Source Tone Generator 1 thru Tone Generator 4 range in Source drop-down list
enables one of four tone generators (Tone 1 thru Tone 4) to be the source
for the selected destination Embedded Audio Group channel.
(In this example, Tone 1 (tone generator 1) is the source for destination
Embedded Ch 1)
Note: Tone generator frequencies can be independently set for the four
tone generator sources.
Refer to Tone Generator function description on page 3-35 for
more information.
Table 3-2 9085 Function Submenu List — continued
•
•
•
