9085-OM (V4.3) 9085 PRODUCT MANUAL 3-19
Operating Instructions
9085 Function Submenu List and Descriptions
Embedded Audio Group 1/2
Selects the audio source for each embedded audio
channel 1 thru 8 (Embedded Audio Groups 1 and 2). It
also provides Gain, Mute, and Phase Invert controls for
each channel.
Note: After familiarizing yourself with the controls described in the audio routing/control sections that follow, see “Audio
Routing Example Using DashBoard™” (p. 3-43) in “Example Setups Using The 9085 and DashBoard™” for a full
example using these controls.
Table 3-2 9085 Function Submenu List — continued

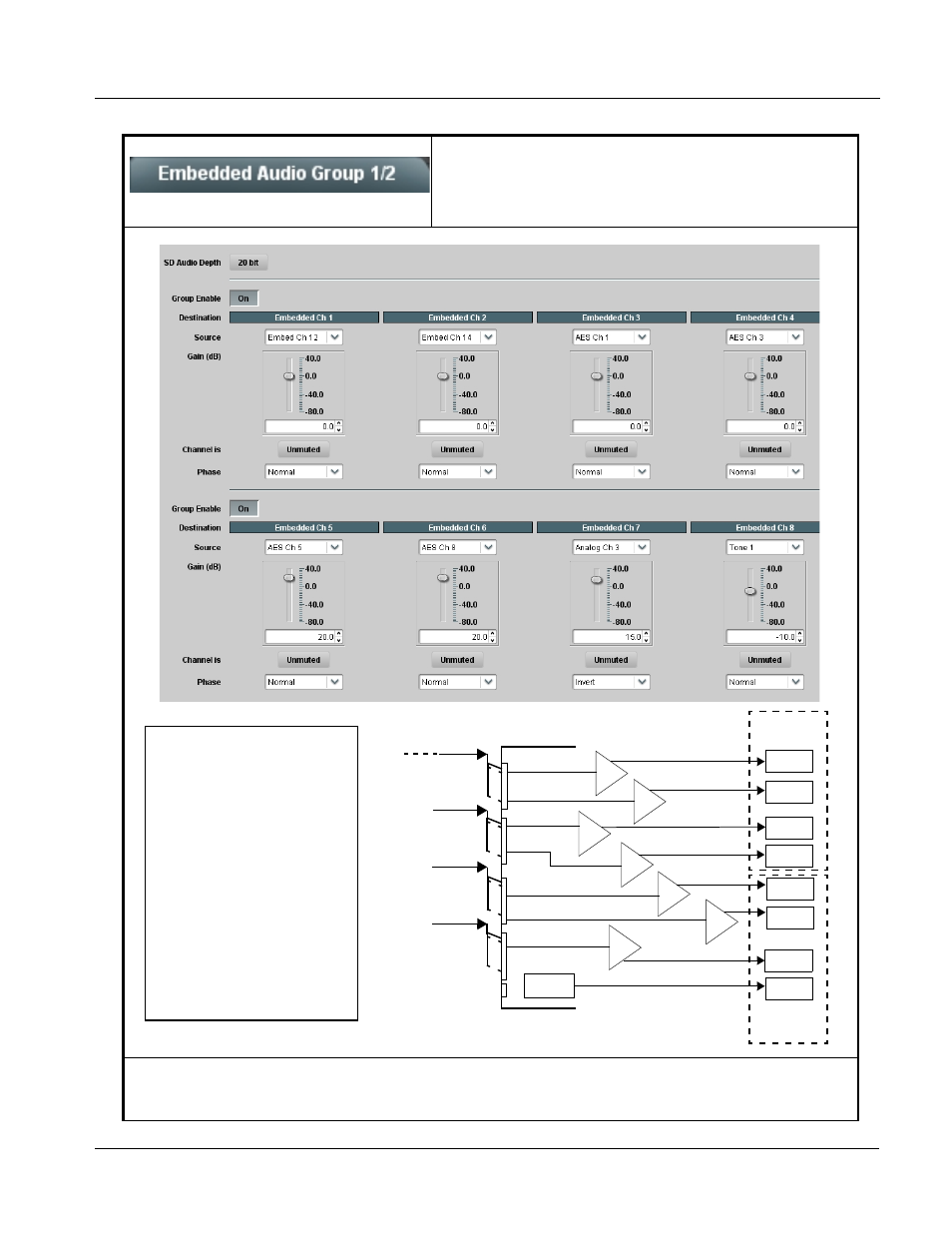

The example above shows various
Source selections and individual
audio control settings for various
audio sources fed to the
Destination channels Embedded
Ch 1 thru Embedded Ch 8 in
Embedded Audio Groups 1 and 2,
with the resulting setup (right).
The source-to-destination
correlation shown here is only an
example; any of the sources on the
left can connect to any of the
destinations on the right, or to
Embedded Audio Groups 3 and 4
(not shown here). Additional
sources not shown here are also
available. These are described on
the following pages.
The controls shown here are
described in detail on the following
pages.
Embed Ch 12
Embedded
Audio Group 1
AES I/O (1-4)
AES IN (5-8)
AN-AUD
IN (1-8)
0 dB
0 dB
0 dB
0 dB
20 dB
20 dB
15 dB
TG1
+
+
+
+
+
+
–
-10 dB
Embedded
Channels 1 – 16
Embed Ch 14
AES Ch 1
AES Ch 3
AES Ch 5
AES Ch 8
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
Embedded
Audio Group 2
Analog Ch 3
