Operating Instructions

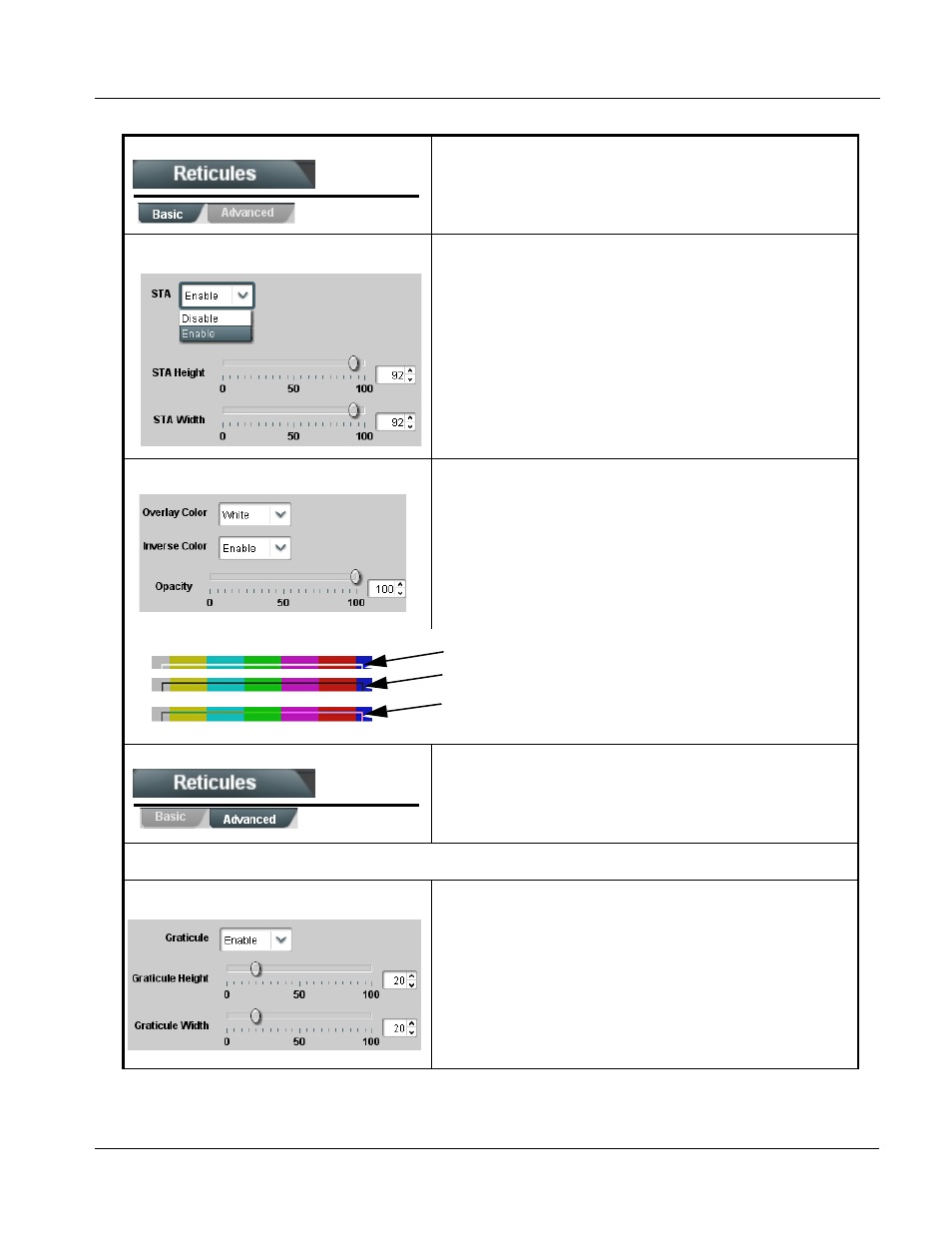

9502-DCDA Function Submenu List and Descriptions
(continued)
• Safe Title Area (STA) Controls
• STA provides enable/disable of safe title area graticule insertion.
• STA Height and STA Width control height and width of insertion (from
0% to 100% of 4:3 outputted image area).
• Overlay Color Controls
• Overlay Color selects from white or black colors.
• Inverse Color provides a negative of the underlying image pixels (see
below). (Inverse setting overrides Overlay Color control setting.)
• Opacity sets the opacity of the overlay for both white/black and inverse
color modes.
Provides insertion and sizing controls for custom
graticules and other markers. Also provides NTSC
legacy 4:3 master reticule sizing.
Note: Color attributes of markers described below are set using the master Overlay Color Controls described above.
• Graticule Controls
• Graticule provides enable/disable of user graticule insertion.
• Graticule Height and Width control height and width of insertion (from
0% to 100% of 4:3 outputted image area).
Table 3-2 9502-DCDA Function Submenu List — continued
White overlay color
Black overlay color
Inverse overlay color
