9502-DCDA Functional Description
1-8
9502-DCDA PRODUCT MANUAL
9502DCDA-OM (V1.3)

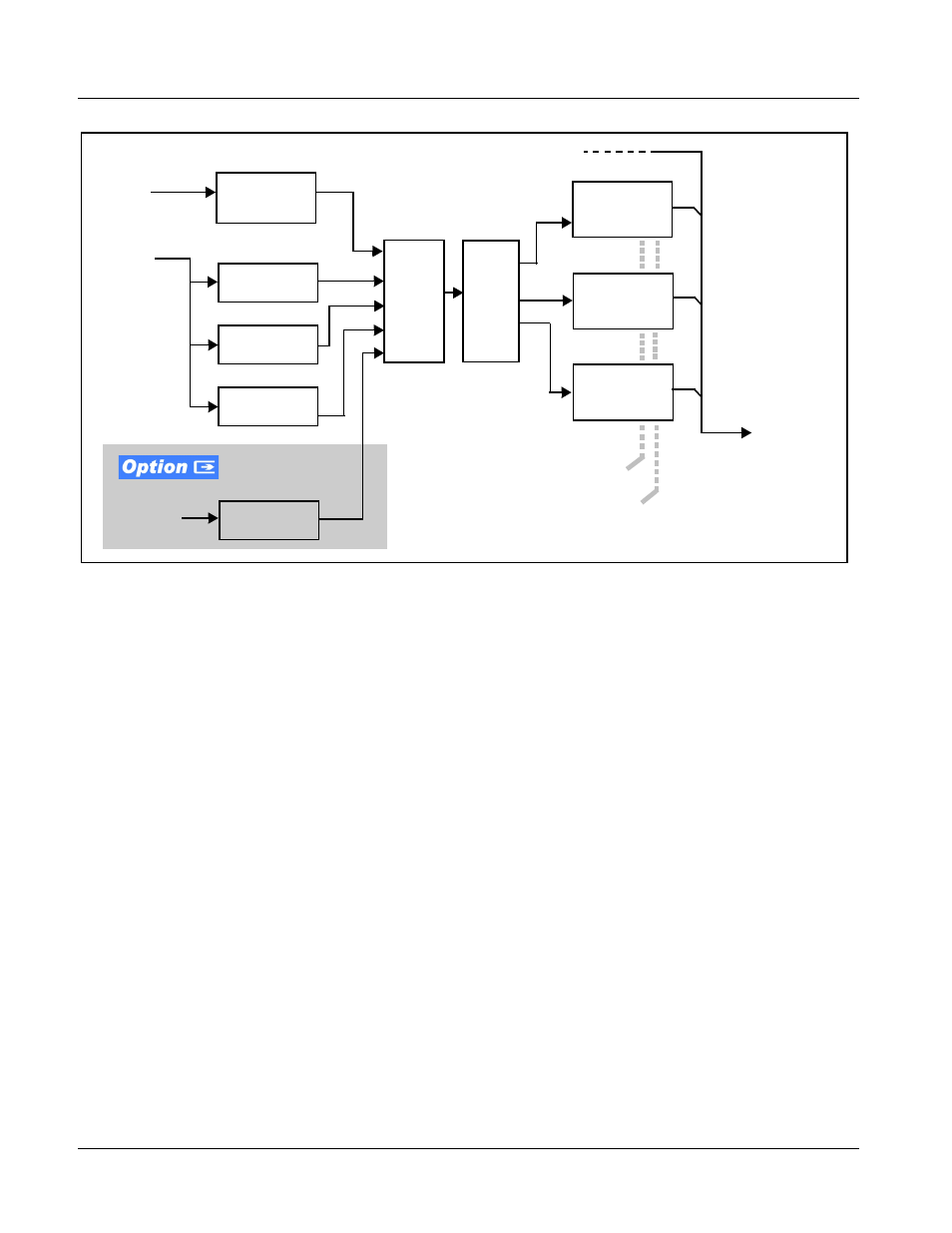

Figure 1-2 Timecode Processor
Closed Captioning Processor
This function provides support for closed captioning setup. The function
allows the selection of the ancillary data line number where the ancillary
closed caption data is outputted when the output is HD. When receiving
HD-SDI, both CEA 608 and CEA 708 are supported, with CEA 608 and
CEA 708 (containing CEA 608 packets) converted to line 21 closed
captioning on outputs down-converted to SD.
SDI VITC
Detect/Extract
SDI ATC_LTC
Detect/Extract
SDI ATC_VITC
Detect/Extract
Priority/
Select
SDI
Video
Input
SDI VITC
Timecode
Proc/Embed
ATC_VITC
Timecode
Proc/Embed
ATC_LTC
Timecode
Proc/Embed
HD/SD–SDI
Video Output
Insert
Control
Line
Number
Control
Buffer/
Format
HD/SD–SDI
(from scaler)
Frame
Reference
Ref VITC
Waveform
Detect/Extract
Audio LTC
Select/Extract
Audio LTC
(from Emb
Ch 1-16)
