9033-OM (V4.0) 9033 PRODUCT MANUAL 3-31
Operating Instructions
9033 Function Submenu List and Descriptions
Timecode
Provides timecode data extraction from various
sources, and provides formatting and re-insertion
controls for inserting the timecode into the output video.
Table 3-2 9033 Function Submenu List — continued
9033
525i 5994
w/ Analog VITC
Waveform
525i 5994
w/ ATC_VITC
Noting that the incoming video contains VITC
waveform timecode data (as shown in the status
display), set the Source Priority drop-down lists to
include analog VITC timecode data as a choice. This
extracts VITC Waveform timecode data from the
incoming video.
In this example, it is desired to provide SDI
ATC_VITC timecode data in the output video. As
such, set SD ATC Insertion Insertion to Enabled.
A
B

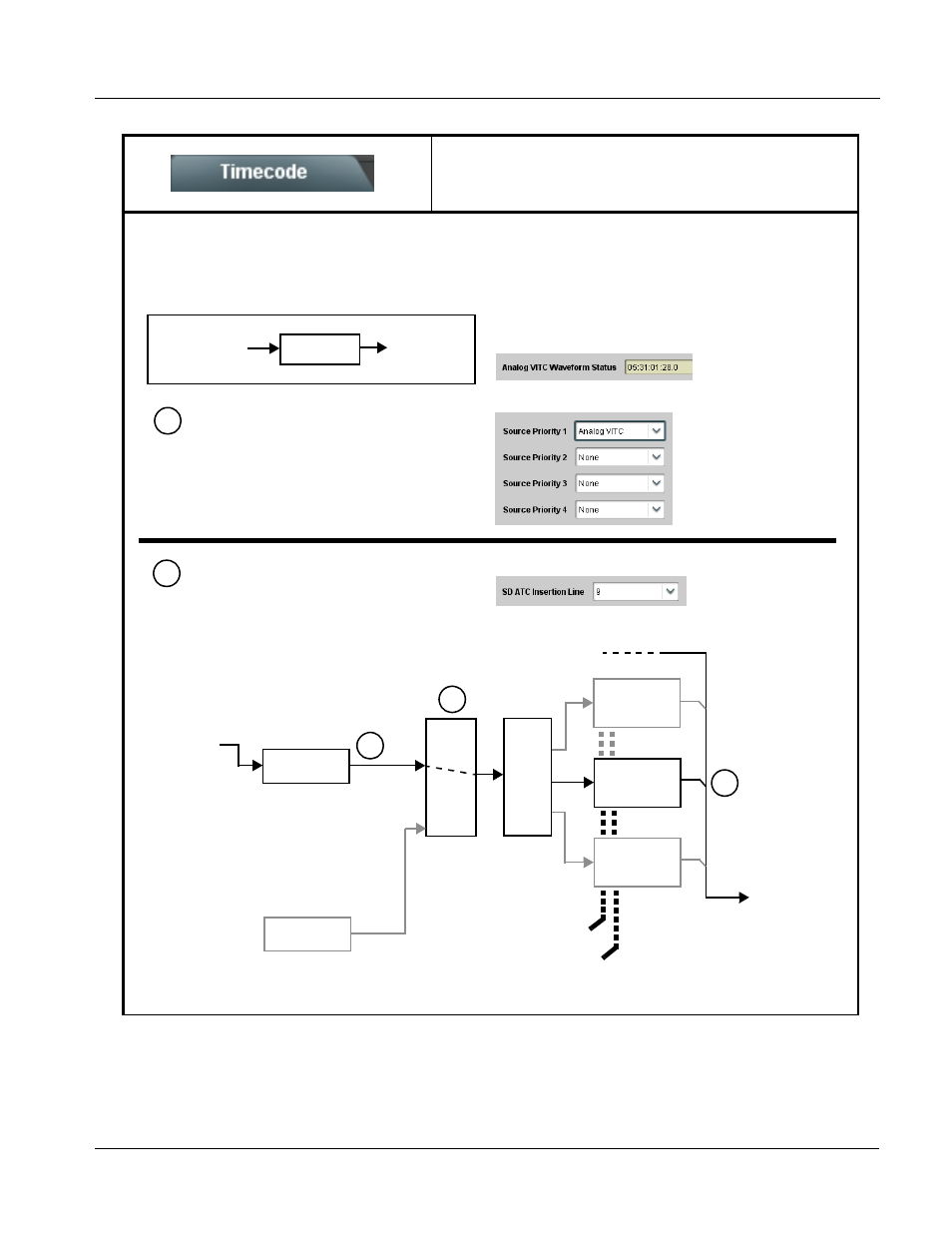

Shown below is an example in which received video with VITC waveform timecode is to be converted to SDI ATC_VITC
timecode data. Each Timecode control is fully described on the pages that follow.
VITC Detect/
Extract
Priority/
Select
525i
w/ VITC
Waveform
SDI VITC
Timecode
Proc/Embed
ATC_VITC
Timecode
Proc/Embed
ATC_LTC
Timecode
Proc/Embed
525i SDI
w/ATC_VITC
Insert
Control
Line
Number
Control
Buffer/
Format
ATC_VITC Insertion = Enabled
A
A
B
LTC Detect/
Extract
