9033 Functional Description
1-8 9033 PRODUCT MANUAL 9033-OM (V4.0)

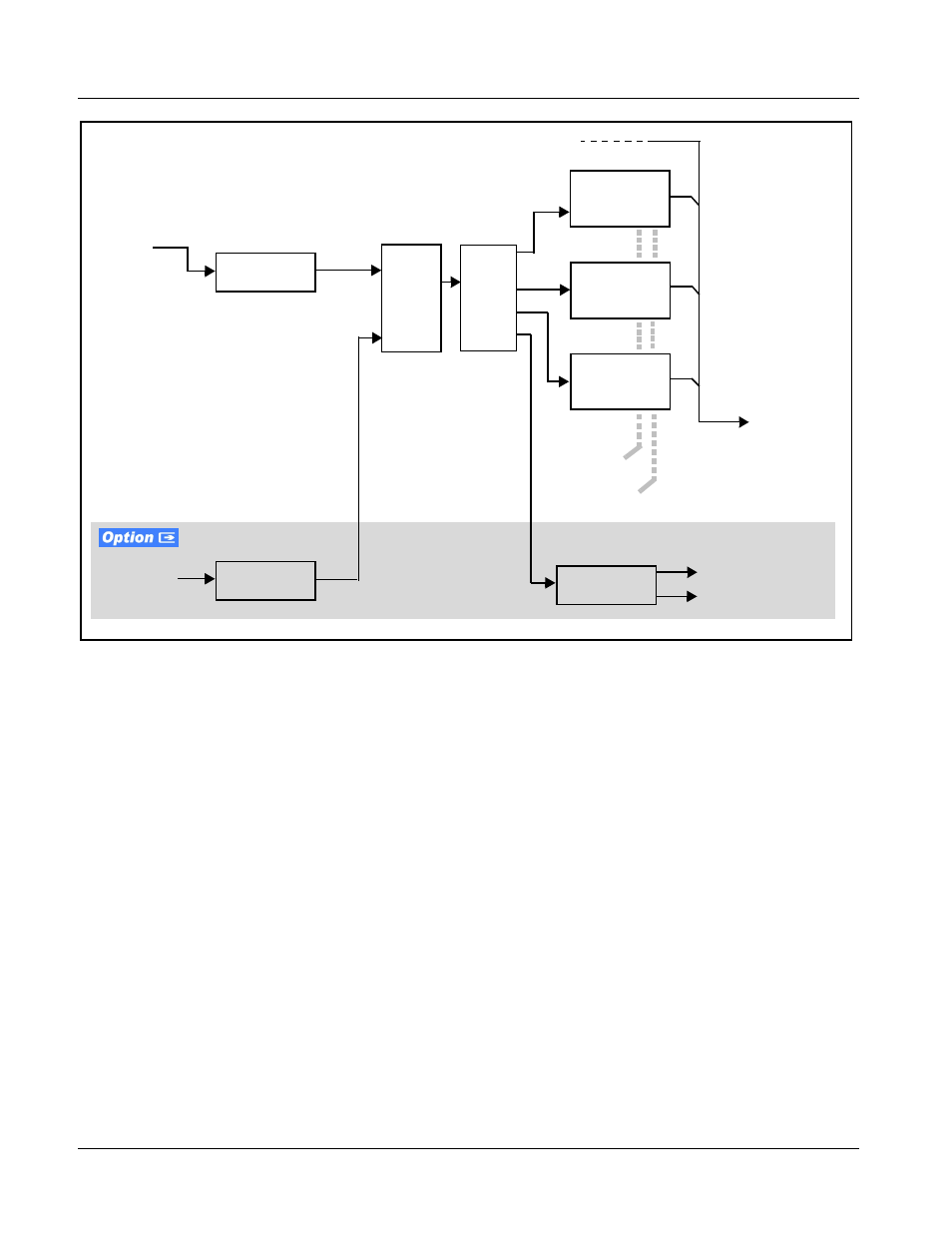

Figure 1-2 Timecode Processor
Audio Processor Description
The audio processor operates as an internal audio router. The router function
chooses from the following inputs:
• 16 channels (8 pairs) of discrete AES input
• 8 channels of balanced analog audio input
• Four independent internal tone generators (described below)
• Digital silence (mute) setting
• Internal Down Mix and Mono Mixer outputs (described below)
• (9033-DEC only) Decoded Dolby ® channels
The router function provides the following audio outputs:
• 16 channels of embedded audio on the SDI output
• 16 channels of discrete AES output on eight AES pairs
Analog VITC
Detect/Extract
Priority/
Select
Video
Input
SDI VITC
Timecode
Proc/Embed
ATC_VITC
Timecode
Proc/Embed
ATC_LTC
Timecode
Proc/Embed
HD/SD–SDI
Video Output
Insert
Control
Line
Number
Control
Buffer/
Format
HD/SD–SDI
(From Video Proc)
Audio LTC
Select/Extract
Audio/
RS-485 LTC
Audio/RS-485
LTC Generate
Audio LTC Out
RS-485 LTC Out
