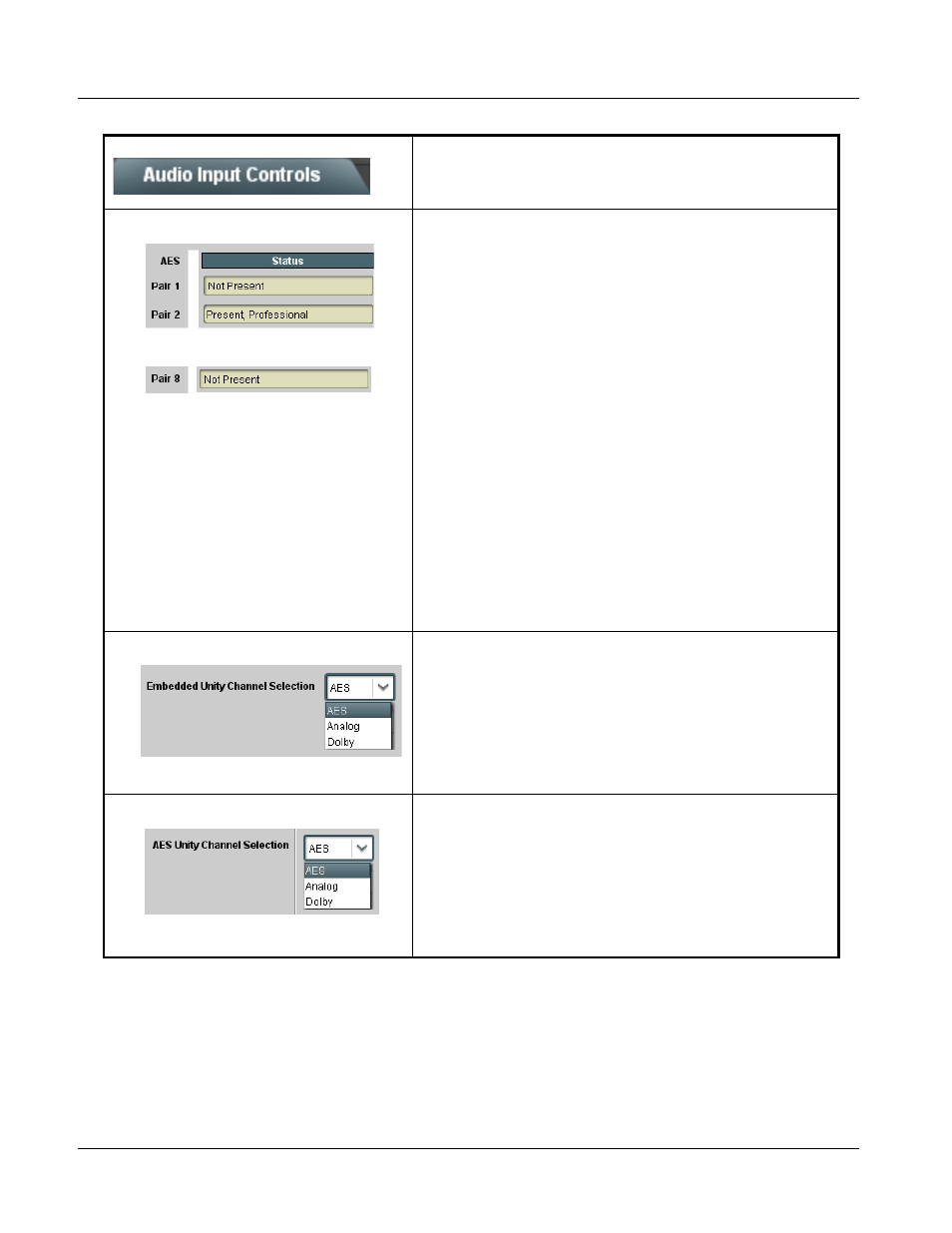

9033 Function Submenu List and Descriptions
3-12 9033 PRODUCT MANUAL 9033-OM (V4.0)
(continued)
• Status Displays Individual signal status displays for AES pairs 1-8 as follows:
• Not Present: Indicates AES pair does not contain recognized audio
PCM data.
Note: Channel displaying Not Present may still carry usable audio
data with Not Present being displayed due to invalid
headers.
• Present, Professional: Indicates AES pair contains recognized
AES audio PCM data.
• Present, Consumer: Indicates AES pair contains audio PCM data
other than AES (for example, S/PDIF).
• Present, Dolby E: Indicates AES pair contains Dolby ® E encoded
data.
• Present, Dolby Digital: Indicates AES pair contains Dolby ® Digital
encoded data.
Note: Dolby status displays shown to the left only occur for valid
Dolby
®
signals meeting SMPTE 337M standard.
(9033 only) The 9033 card does not perform Dolby
®
processing on the signal. Although the 9033 controls will
appear to be usable for this signal tag, the signal is passed
through with SRC bypassed as well as all gain and polarity
controls set to unity.
(9033-DEC only) When Dolby ® E or Dolby ® Digital™ is
present on a discrete AES pair, the decoder can provide up
to 10 decoded channels (according to the Dolby
® sub-format
and received metadata). All channels are available as inputs
to audio routing.
• Embedded Unity Channel Selection Selects unity reset to Embedded Audio Group 1/2 and 3/4 controls and
re-establishes default 1-to-1 routing as follows:
• AES: Routes AES Ch 1 thru Ch 16 as sources to destination
channels Embedded Ch 1 thru Embedded Ch 16.
• Analog: Routes Analog Ch 1 thru Ch 8 as sources to destination
channels Embedded Ch 1 thru Embedded Ch 8. Sets Embedded
Ch 9 thru Ch 16 to Silence.
• Dolby: (9033-DEC only) Routes Dolby decoder output channels
Ch 1 thru Ch 8 as sources to destination channels Embedded Ch 1
thru Embedded Ch 8. Sets Embedded Ch 9 thru Ch 16 to Silence.
• AES Unity Channel Selection Selects unity reset of AES Outputs Pairs 1-4 and 5-8 controls and
re-establishes default 1-to-1 routing as follows:
• AES: Routes AES Ch 1 thru Ch 16 as sources to destination
channels AES Ch 1 thru AES Ch 16.
• Analog: Routes Analog Ch 1 thru Ch 8 as sources to destination
channels AES Ch 1 thru AES Ch 8. Sets AES Ch 9 thru Ch 16 to
Silence.
• Dolby: (9033-DEC only) Routes Dolby decoder output channels
Ch 1 thru Ch 8 as sources to destination channels AES Ch 1 thru
AES Ch 8. Sets AES Ch 9 thru Ch 16 to Silence.
Table 3-2 9033 Function Submenu List — continued
•
•
•
