9033-OM (V4.0) 9033 PRODUCT MANUAL 3-23
Operating Instructions
9033 Function Submenu List and Descriptions
(continued)

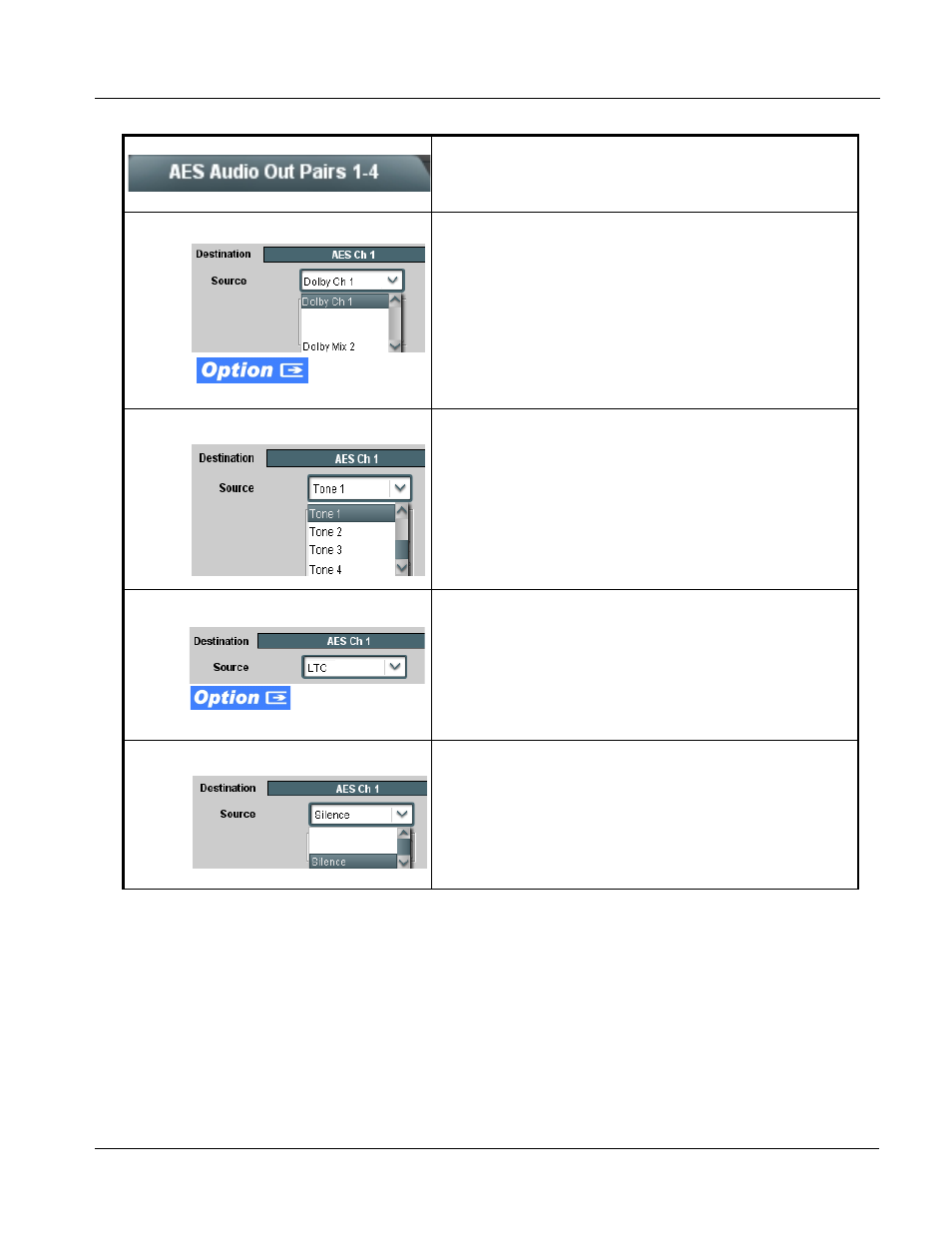

• Dolby ® Decoded Channel as Source (9033-DEC only) Dolby Ch 1 thru Dolby Ch 8 range in Source
drop-down list enables a Dolby
® decoded channel to be the source for the
selected destination AES channel.
(In this example, Dolby
®
decoded Ch 1 is the source for destination AES
Ch 1)
Note: Drop-down choices of Ch 1 thru Ch 8 and Mix 1/Mix 2 represent
maximum channels available. Actual active channel complement is
per received Dolby
® format and upstream encoding. Inactive
channels should not be used.
Refer to Dolby Metadata function description on page 3-25 for
more information.
• Tone Generator 1 thru 4 as Source Tone Generator 1 thru Tone Generator 4 range in Source drop-down list
enables one of four tone generators (Tone 1 thru Tone 4) to be the source
for the selected destination AES channel.
(In this example, Tone 1 (tone generator 1) is the source for destination
AES Ch 1)
Note: Tone generator frequencies can be independently set for the four
tone generator sources.
Refer to Tone Generator function description on page 3-40 for
more information.
• Audio LTC as Source LTC selection in Source drop-down list allows any timecode format
received by the card to be outputted as audio LTC over an AES audio
output (destination) channel.
(In this example, audio LTC is the source for destination AES Ch 1)
Note: • When LTC is selected as source, Gain and Mute controls are
disabled.
• Refer to Timecode function description on page 3-31 for more
information.
• Silence (Mute) as Source Silence selection in Source drop-down list mutes the selected destination
AES channel. Use this setting for unused destination channels.
(In this example, silence (muting) is applied to AES Ch 1)
Table 3-2 9033 Function Submenu List — continued
•
•
•
