Installing a Rear I/O Module
2-6 9033 PRODUCT MANUAL 9033-OM (V4.0)
9033 Rear I/O Modules
Table 2-1 shows and describes the full assortment of Rear I/O Modules
specifically for use with the 9033.
Notes: • Rear I/O Modules equipped with 3-wire Phoenix connectors are supplied
with removable screw terminal block adapters. For clarity, the adapters are
omitted in the drawings below.
• Rear I/O Modules with DOLBY META port provide RS-485 port usable for
Dolby metadata decoder output (where equipped with option +DEC) or serial
LTC I/O (where licensed for option +LTC).
• RM20-x Rear I/O Modules compatible only with 20-slot frames.

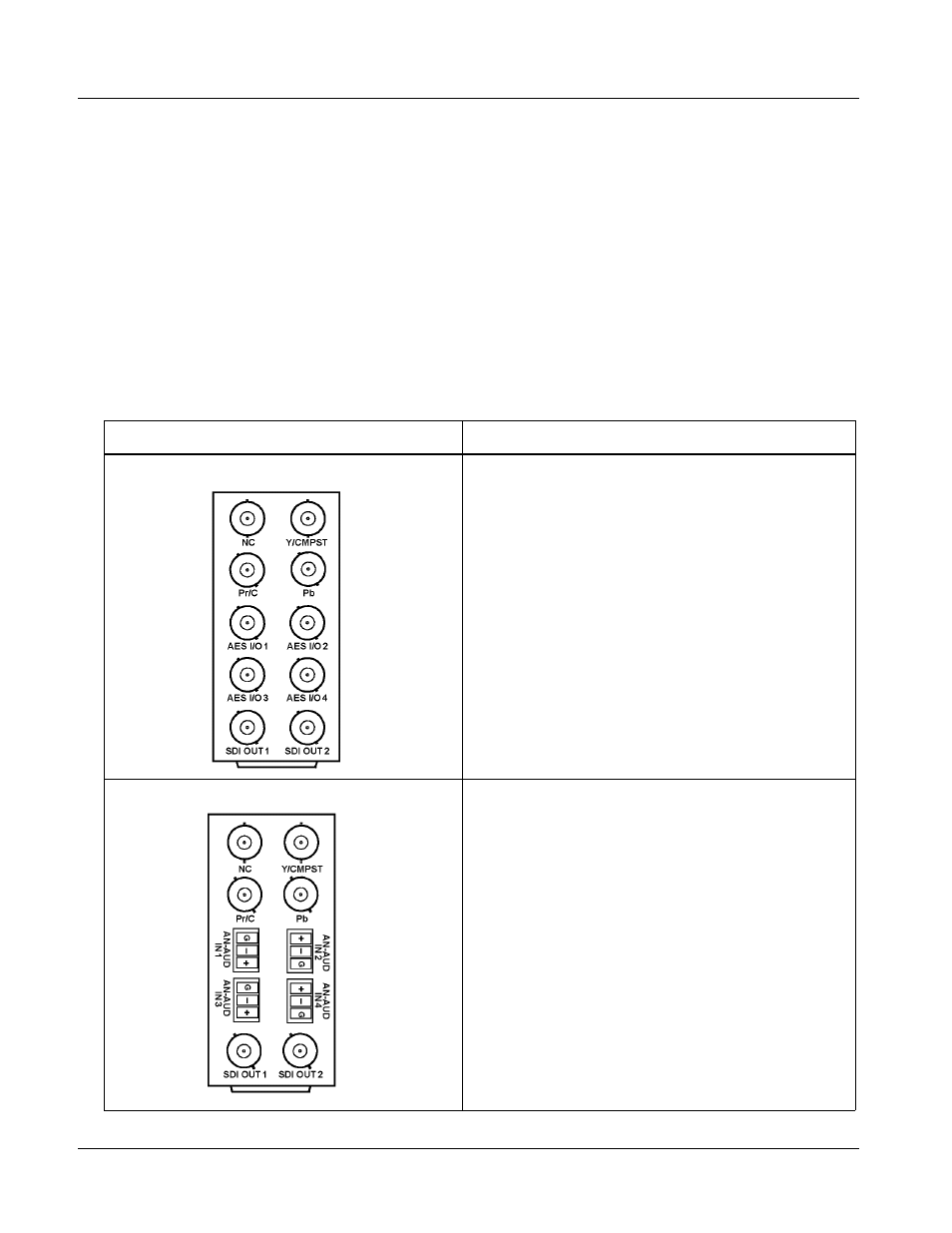

Table 2-1 9033 Rear I/O Modules
9033 Rear I/O Module Description
RM20-9033-A Provides the following connections:
• Analog Y/composite, Pr/C, and Pb coaxial inputs
(Y/Cmpst, Pr/C, and Pb, respectively)
• Four AES I/O coaxial input/outputs (AES I/O 1 thru
AES I/O 4; I/O function of each connection is
user-configurable)
• Two buffered SDI coaxial outputs (SDI OUT 1 and
SDI OUT 2)
RM20-9033-B Provides the following connections:
• Analog Y/composite, Pr/C, and Pb coaxial inputs
(Y/Cmpst, Pr/C, and Pb, respectively)
• Four analog balanced audio inputs (AN-AUD IN 1
thru AN-AUD IN 4)
• Two buffered SDI coaxial outputs (SDI OUT)
