Moog Music 500 Series Analog Delay - Manual (Page 8)

8
SLEW RATE: Sets the speed at which the DELAY TIME transitions from a
prior setting to a new one when changing delay time via LFO or directly.
MIDI CC#: MSB-5, LSB-37
MULTIPLIER: Depending on DELAY TIME and TIME RANGE settings, the
MULTIPLIER enables longer DELAY TIMES. Some settings can result in “il-
legal” delay times causing aliasing and other audio artifacts.
MIDI CC# - 75
CLOCK DIVISION: Sets Delay CLOCK DIVISIONS to a defined number of
beats at the MIDI tempo (Only used when synced to MIDI. See MIDI Clock
Divisions table).
MIDI CC# - 77
DELAY FILTER: Sets DELAY FILTER to Dark (less high frequencies) or
Bright (full fidelity). This control overrides the normal filter setting as per
the
TIME RANGE. MIDI CC# - 89

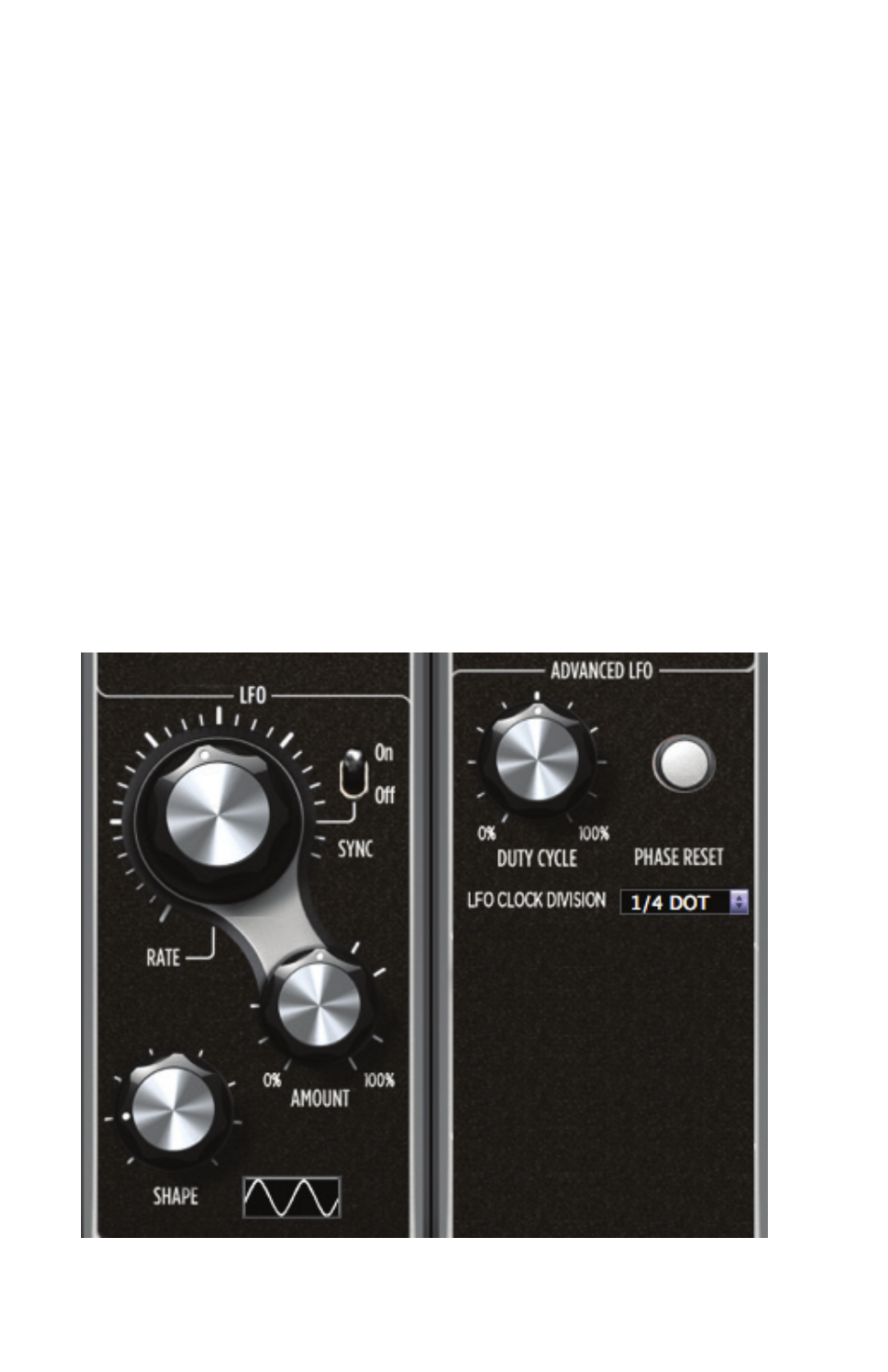

LFO CONTROL – VIA EDITOR
The Analog Delay contains an LFO module which can be used to modu-
late the delay time, creating tape delay, doubling and echoes with chorus,
vibrato, and other pitch shifting effects. The LFO is accessible via the
plug-in/stand-alone editor, MIDI or with the
TAP/CV INPUT.
The following section details the editor’s LFO Section controls and
corresponding MIDI CC#:
