Moog Music 500 Series Analog Delay - Manual (Page 11)

11

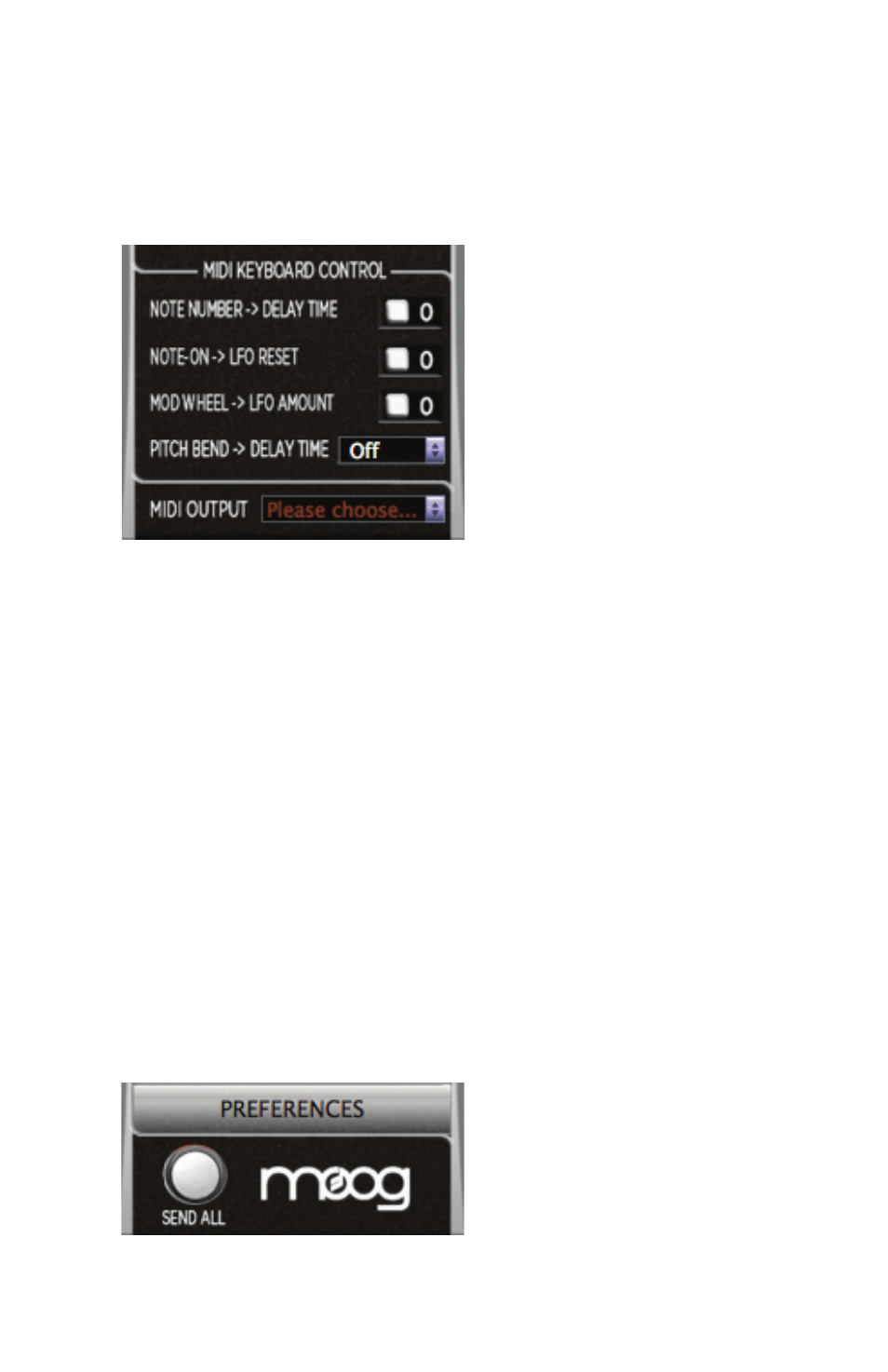

MIDI KEYBOARD CONTROL
The editor contains controls for setting MIDI keyboard parameters.
The following section details the editor’s MIDI keyboard controls and
their MIDI mappings.
NOTE NUMBER-> DELAY TIME: When engaged, MIDI notes sent to the
Analog Delay will adjust the delay time to pitch bend the delayed audio by
the musical ratio corresponding to the semitones between the notes.
MIDI CC#: 82
NOTE ON-> LFO RESET: When engaged, each MIDI note ON message
restarts the LFO cycle.
MIDI CC#: 73
MOD WHEEL-> LFO AMOUNT: Engages keyboard mod wheel control over
the
LFO AMOUNT setting. Note the mod wheel will control to a maximum
level set by the current AMOUNT setting. If LFO AMOUNT is set to 0 then
the MOD WHEEL will have no effect. MIDI CC#: 85
PITCH BEND-> DELAY TIME: Engages keyboard pitch bend wheel control
over the
DELAY TIME and how far it will bend the DELAY TIME’S pitch.
MIDI CC#: 80
MIDI OUTPUT: Selects which MIDI port is assigned to the Analog Delay.
MIDI CC#: 119
SEND ALL AND PREFERENCES
SEND ALL: Send all current
editor settings to the Analog
Delay.
