10
SAMPLE AND HOLD: Also known as a random step, a square-ish wave that
randomly changes its an up and down state, and wave height.
SLEWED SAMPLE AND HOLD (SMOOTH): Transitions smoothly between
the Sample and Hold steps

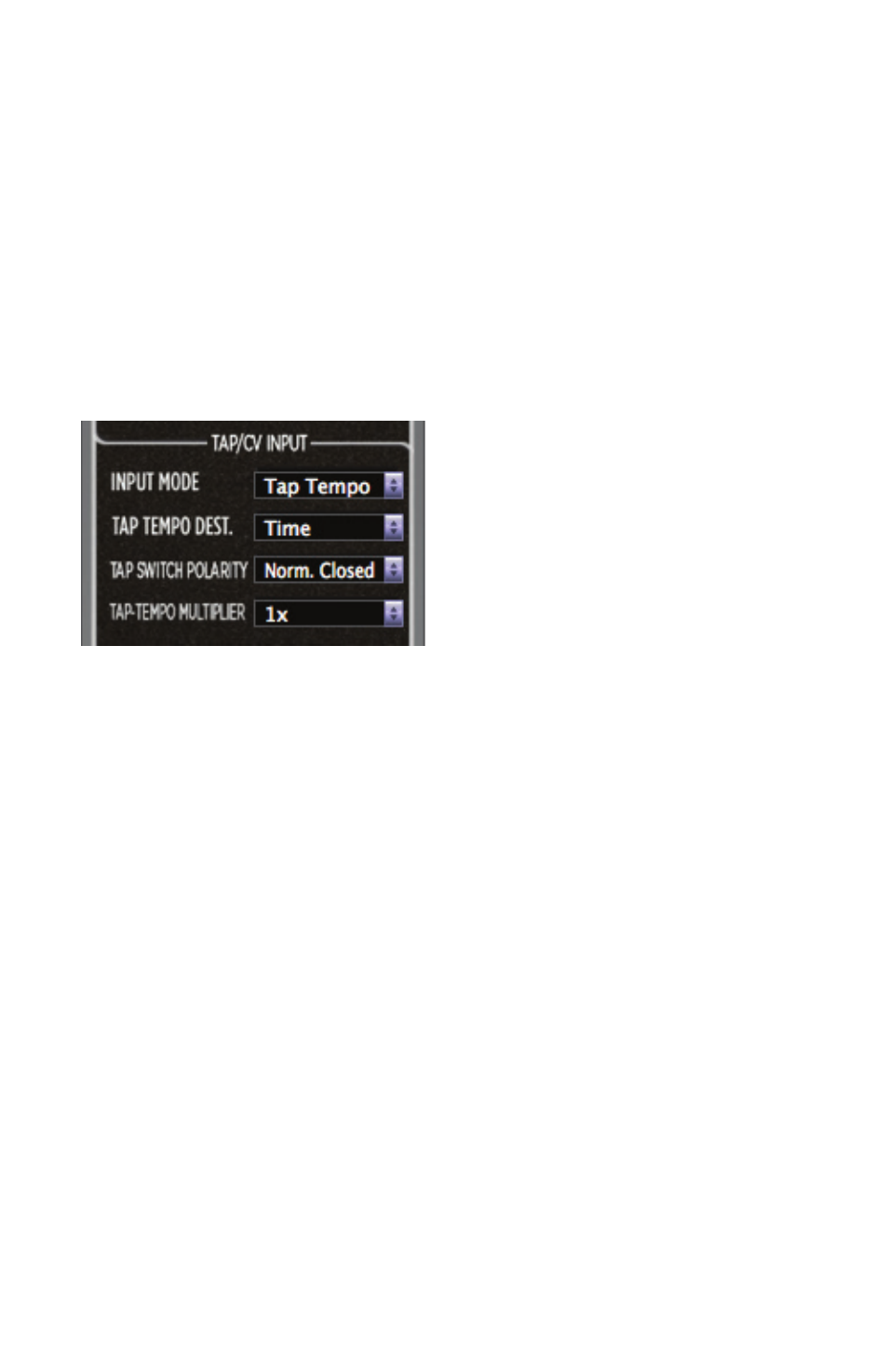

TAP/CV INPUT ASSIGNMENT
The editor contains controls for configuring the TAP/CV INPUT.
The following section details the editor’s TAP/CV INPUT controls and
their MIDI mappings:
INPUT MODE: Sets the TAP/CV INPUT to Tap Tempo or CV control of
DELAY TIME, FEEDBACK, LFO RATE, LFO SHAPE, or LFO AMOUNT.
MIDI CC#: 90
TAP TEMPO DESTINATION: Sets the Tap Tempo destination to Delay
TIME or LFO RATE. Note: only applicable when INPUT MODE is set to Tap
Tempo.
MIDI CC#: 87
TAP SWITCH POLARITY: Sets the TAP/CV INPUT to work with switches
that are Normally Closed (such as Moog FS-1) or Normally Open.
MIDI CC#: 114
TAP TEMPO MULTIPLIER: Selects whether a tap equals a quarter note (1x),
eighth note (2x) etc.
MIDI CC#: 86
