DELAY LINE CONTROL – VIA EDITOR
The editor provides additional “under the hood” control of the Delay Line.
For controls that are available on both the front panel and the editor, set-
tings made using the editor (or via MIDI) will take priority over front panel
settings. Adjusting a front panel control will re-establish priority until an-
other editor or MIDI message supersedes it.

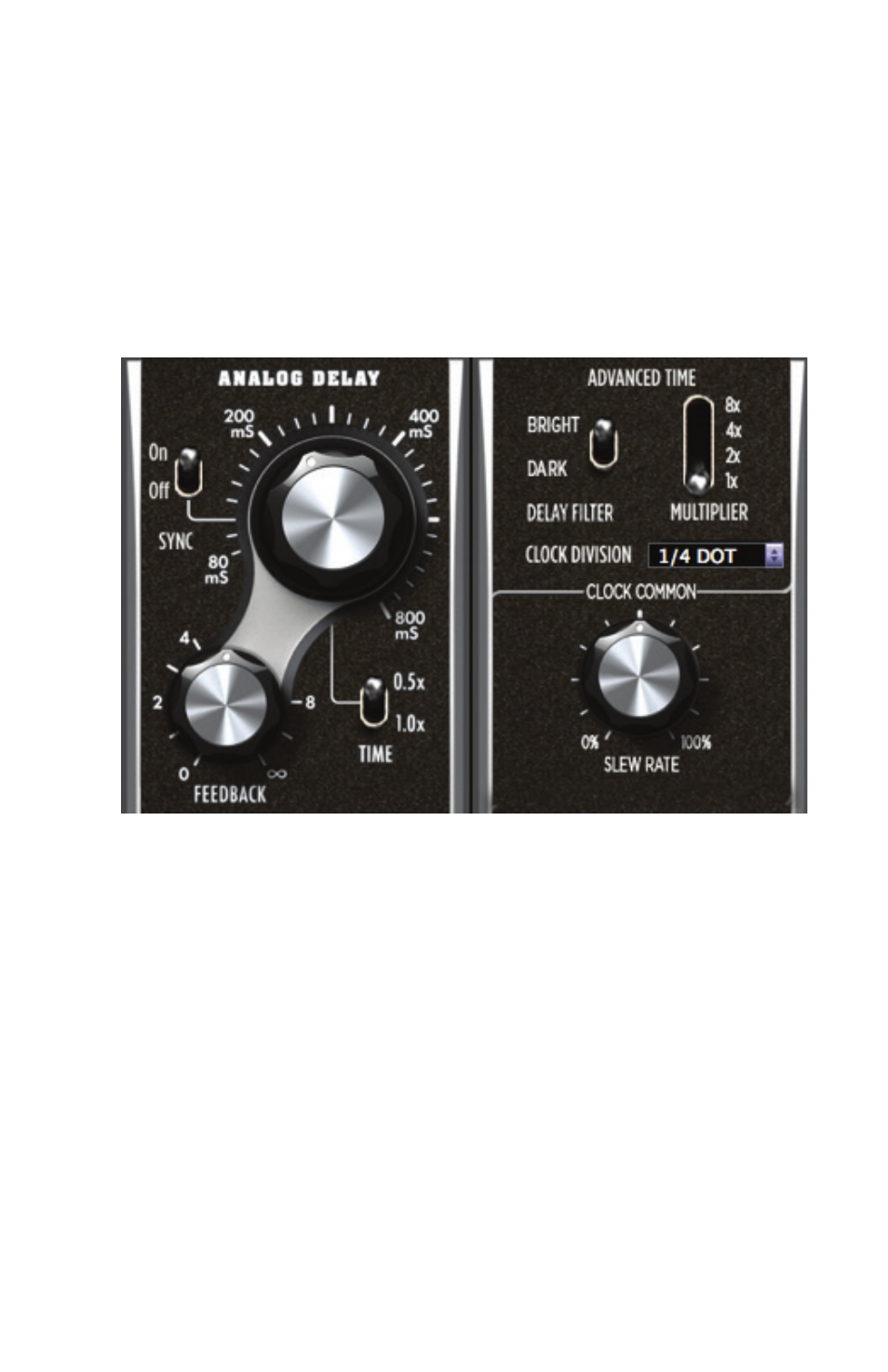

The following section details the editor’s Delay Section controls and
corresponding MIDI CC#:
DELAY SYNC: When SYNC is on, DELAY TIME is linked to MIDI clock and
delay knob is set to a
CLOCK DIVISION of the current MIDI BPM.
MIDI CC#: 76
FEEDBACK: Sets the amount of Delay Line output fed back into the input
of the BBDs. NOTE: Also controllable via front panel or MIDI message.
MIDI CC#: MSB-13, LSB-45
DELAY TIME: Adjusts delay times from 35-400mS (0.5x setting) and 70-
800mS (1.0x setting). NOTE: Also controllable via front panel or MIDI mes-
sage. Sets clock divisions in MIDI sync mode.
MIDI CC#: MSB-12, LSB-44
TIME RANGE: Selects between short (0.5x) and long (1.0x) delay time.
NOTE: Also controllable via front panel or MIDI message. MIDI CC# - 74
