PNEG-1295 16" - 36" Platform
8. 4 X 5 DISTRIBUTOR PLATFORM
Vertical Posts & Toeboard
Locate the toeboard cover plate and bolt over unused notched toeboard area using 3/8"
hardware. Next attach all vertical posts in position shown with 3/8" hardware. Now bolt the
handrail brace plate to the vertical post as shown below. Make sure not to tighten hardware till
handrail assembly is complete.

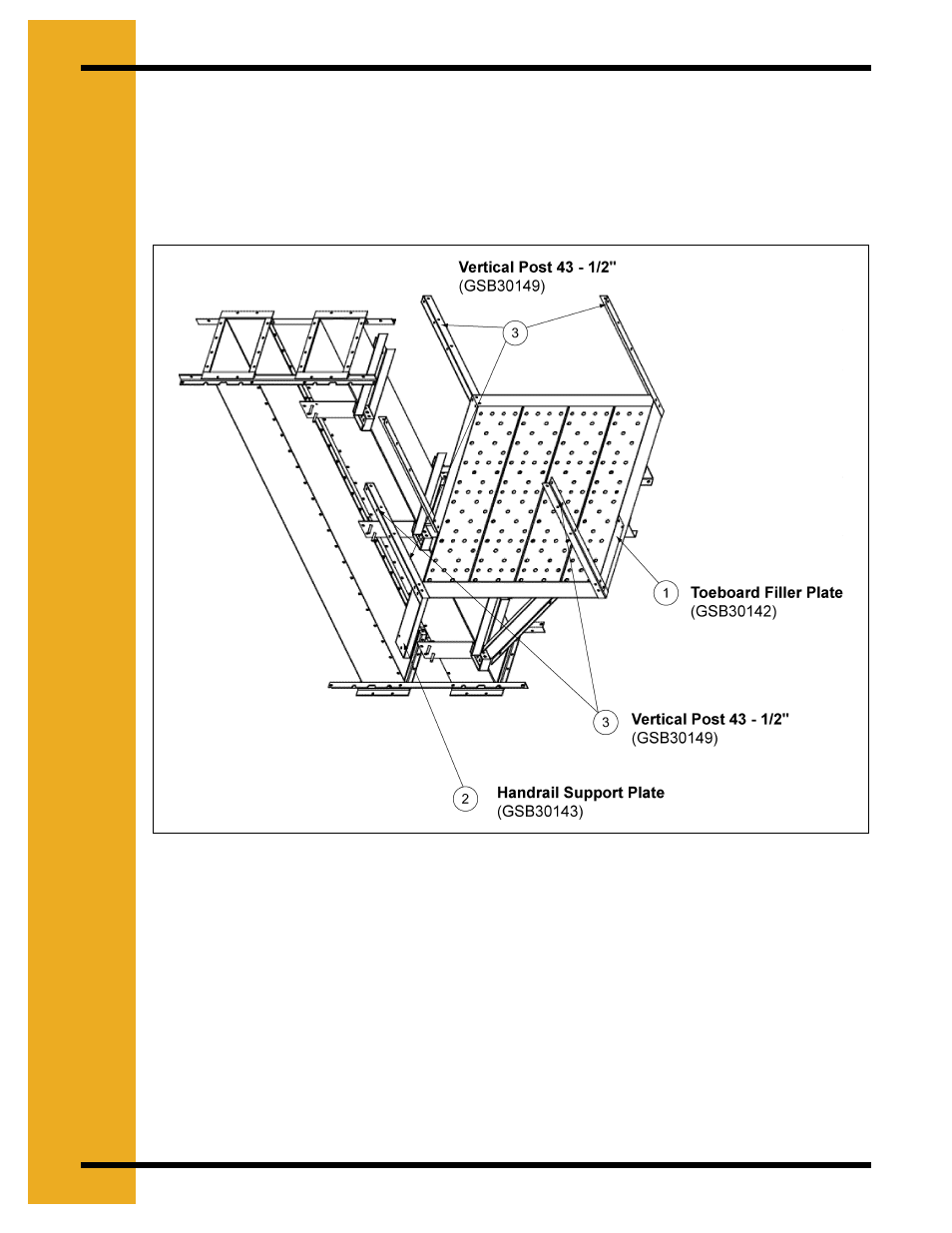

Figure 8D
