26

PNEG-1295 16" - 36" Platform

6. LADDER ASSEMBLY

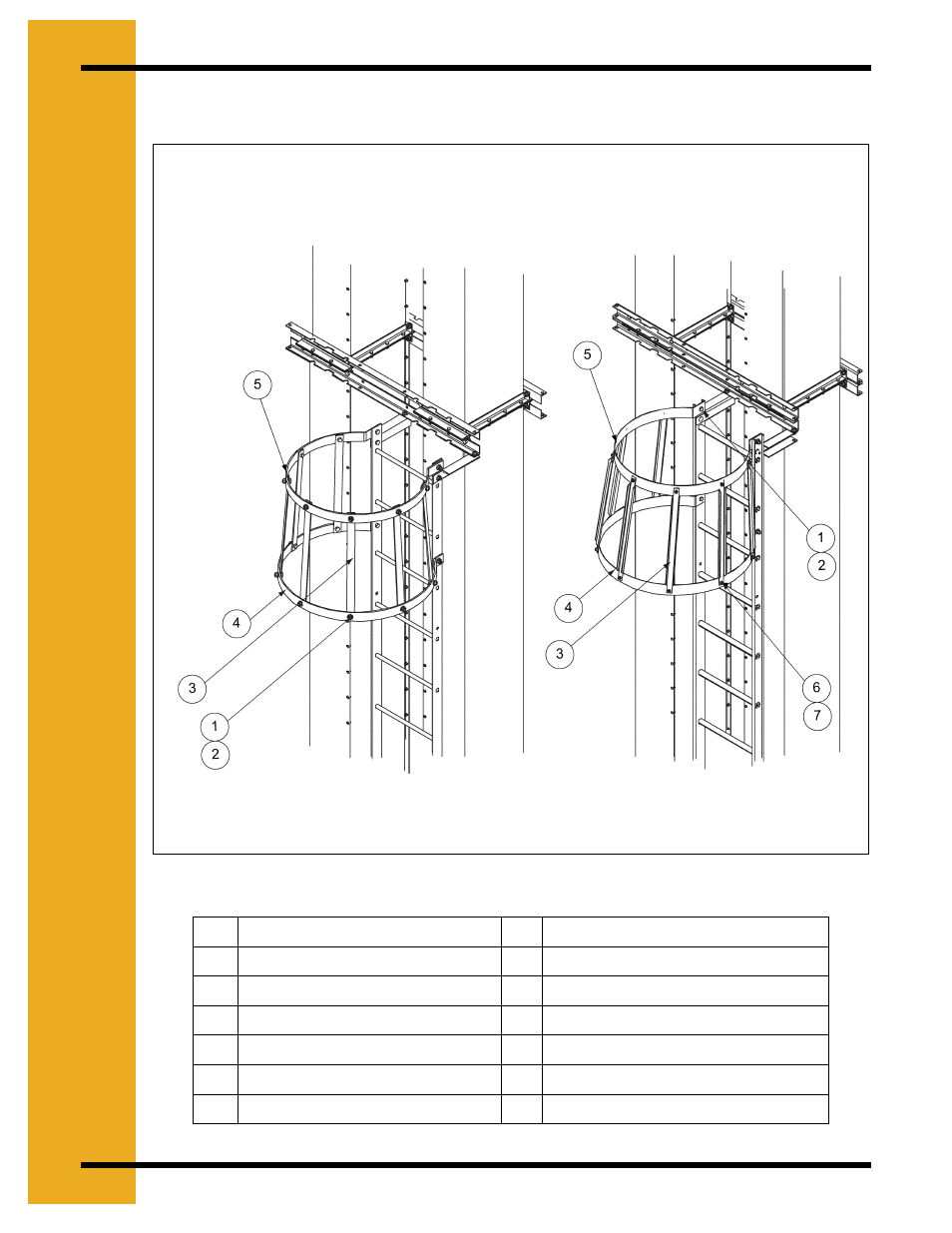

Safety Cage Flare Attachment Painted

Figure 6H

1.

1/2" - 13 x 1" Hex Bolt

1.

1/2" - 13 x 1" Hex Bolt

2.

1/2" - 13 Hex Nut

2.

1/2" - 13 Hex Nut

3.

Safety Cage Tapper Vertical Bar

3.

Safety Cage Tapper Vertical Bar

4.

30" Safety Cage Hoop

4.

31" Safety Cage Hoop

5.

27" Safety Cage Hoop

5.

27" Safety Cage Hoop

6.

3/8 - 16 Hex Bolt

7.

3/8 - 16 Flange Nut

Painted

Galvanized
