22 PNEG-1295 16" - 36" Platform
6. LADDER ASSEMBLY
Ladder Attachment
When attaching the ladder to the standoffs the ladder is attached through the second hole down
from the end of the ladder. The first hole is used to attach the safety cage hoop.
Note: On 16" & 24" the stand off angles and cages mount inside ladder. On 30" & 36" the
stand off Angle and cages mount to outside of ladder.

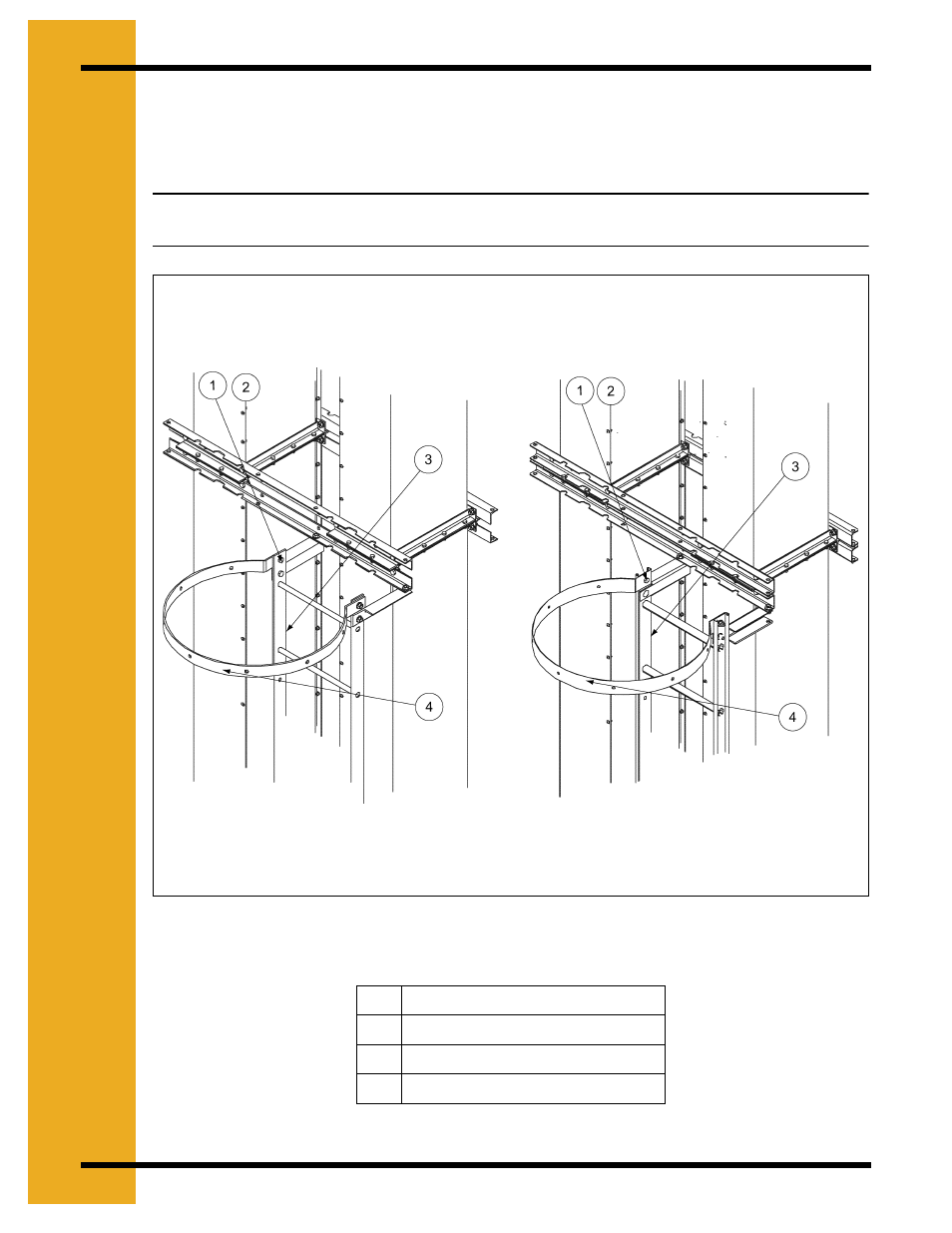

Figure 6D
1. 1/2" - 13 x 1" Hex Bolt
2. 1/2" - 13 Hex Nut
3. 10' Ladder section**
4. 27" Safety Cage Hoop**
Painted Galvanized
