PNEG-1295 16" - 36" Platform 15
5. 36" PLATFORM ASSEMBLY
Decking
The drive deck and hatch deck sections are interchangeable. All shown views are consistent for
a right hand drive elevator. If you are assembling a left hand drive elevator the hatch deck would
be closest to you and the drive deck farthest in
Figure 5B . Place outside floor sections
(Drive Attach) on support channels in location shown below and fasten using 3/8" x 1" carriage
bolts and whiz nuts. Fasten mid drive deck to the two outside floor sections with 3/8" x 1" carriage
bolts and whiz nuts. Make sure not to tighten the hardware until assembly is complete.

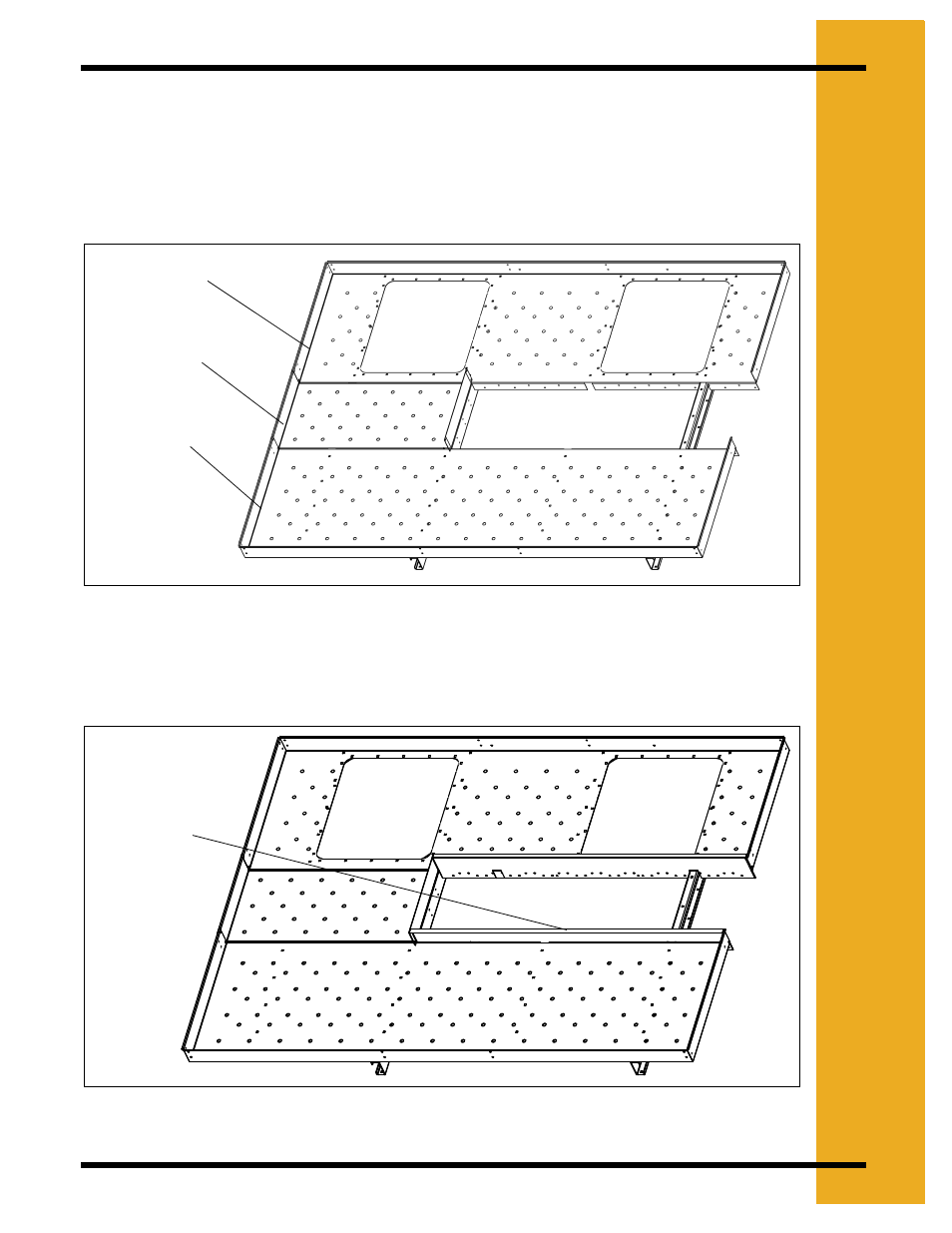

Figure 5B 36" Platform
Toeboards
Fasten toeboards to floor sections in the position shown position using 3/8" x 1" bolts and whiz
nuts. Make sure not to tighten hardware until assembly is complete.
Figure 5C 36" Platform
Deck, 36" Mid Drive
(HP36MDD)
Deck, 36" HP Drive
(HP36DD)
Deck, 36" Hatch
(HP36HD)
Toeboard, 36" Hatch
(HP36STB)
