Hatch door, 16"- 24" platform assembly – Grain Systems Bucket Elevtors, Conveyors, Series II Sweeps PNEG-1295 User Manual
Page 12
12
PNEG-1295 16" - 36" Platform
4. 16"- 24" PLATFORM ASSEMBLY
Hatch Door
Attach the hatch door hinges to the hatch deck door using 3/8" x 1" carriage bolts and whiz nuts.
Next attach the door hinge to the hatch deck using 3/8" x 1" carriage bolts and whiz nuts. Attach
hatch deck support and hatch support as shown in
using 3/8" x 1" carriage bolts and
flange nuts. Attach hatch deck filler with 3/8" x 1" carriage bolts.

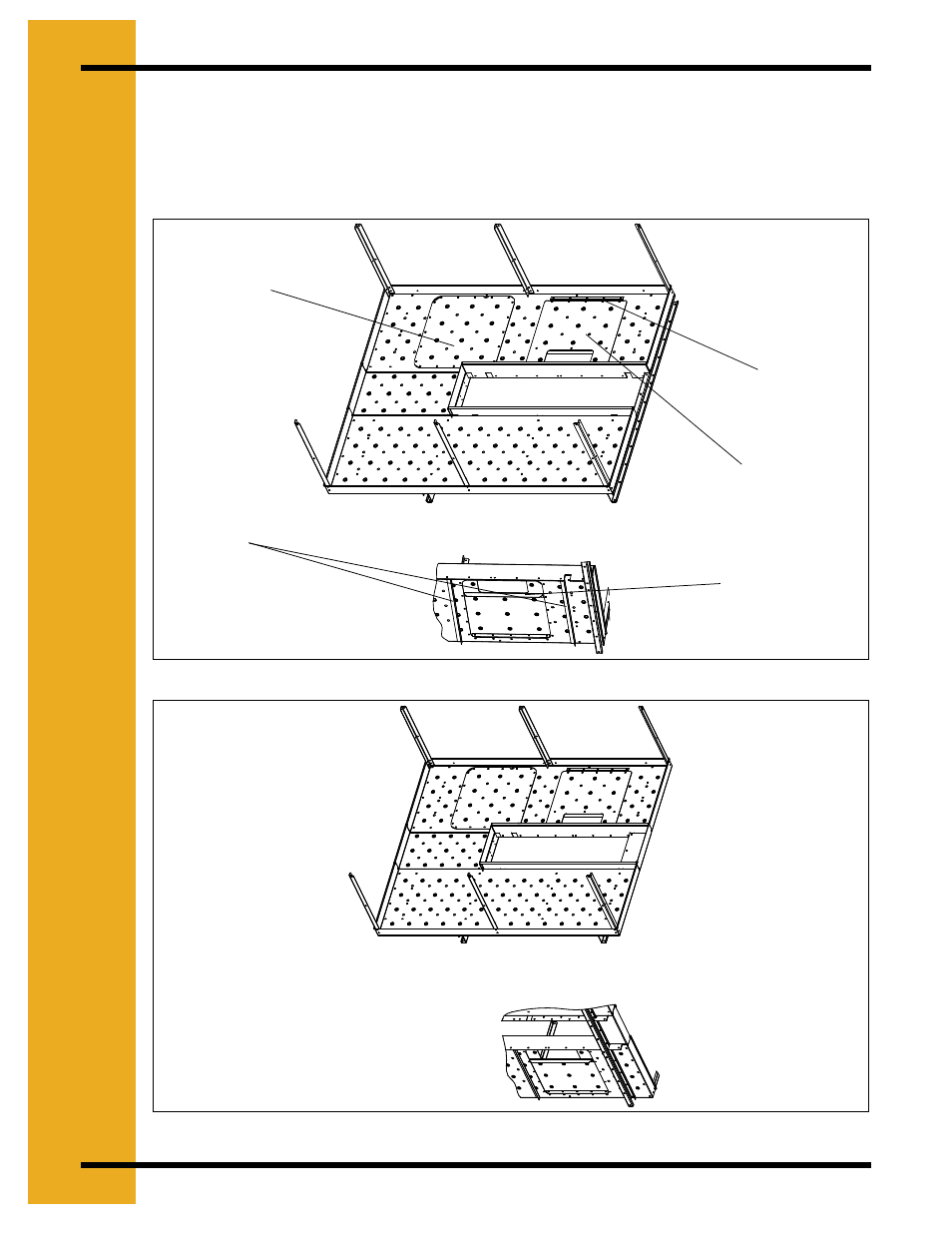

Figure 4F 24" Platform
Figure 4G 16" Platform
Filler, 16/24"
Hatch Deck
(HP1624HDF)
Hinge, 16/24"
Hatch
(HP1624HH)
Door, 16/24"
Hatch Deck
(HD1624HDD)
Support 16/24" HP
Hatch Deck (2)
(HP1624HDS)
Support 16/24" HP
Hatch (HP1624HS)
