PNEG-1295 16" - 36" Platform
29
7. REST PLATFORM ASSEMBLY
Rest Platform Deck Plate

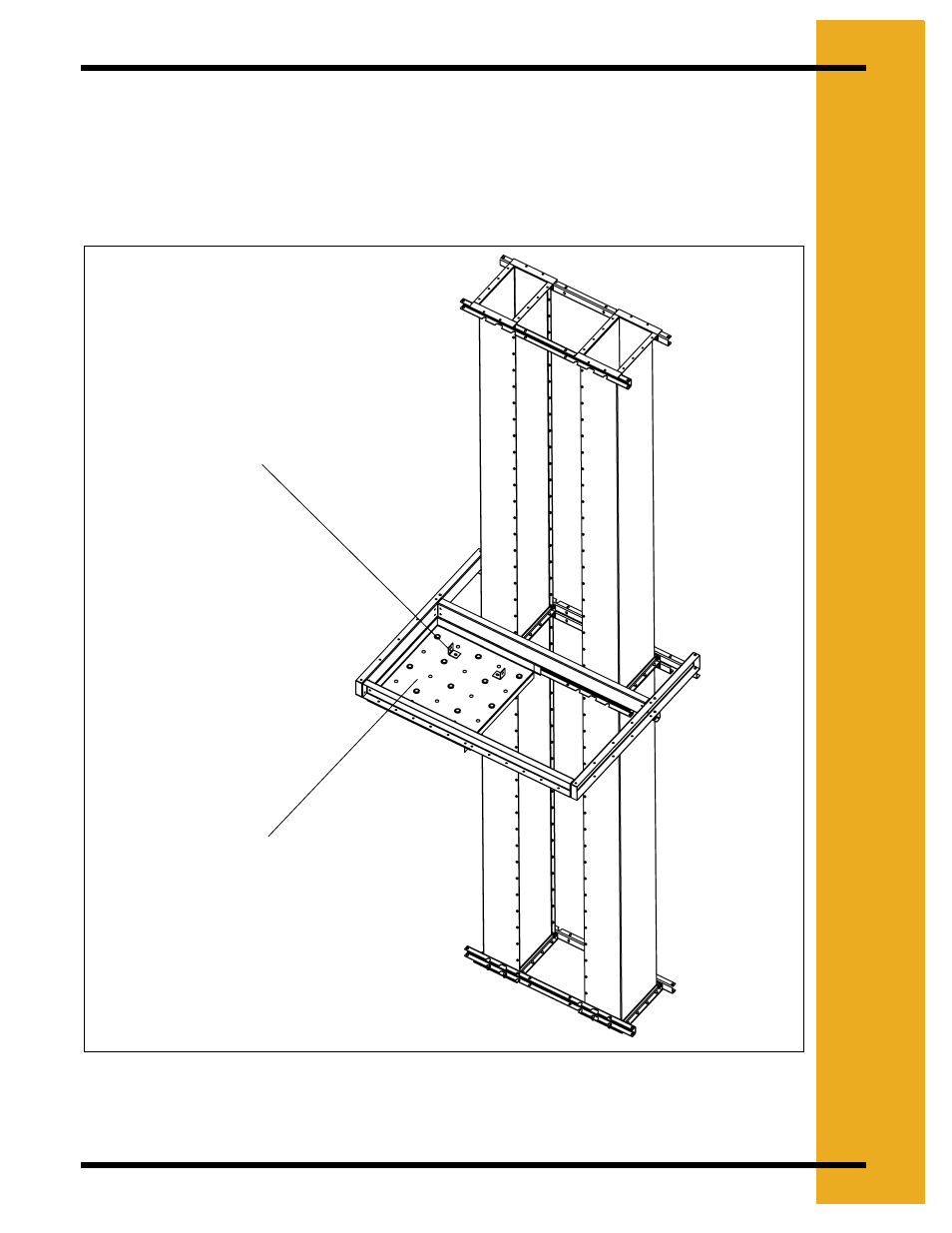

With 3/8" x 3/4" Bolts and Flange nuts, bolt the deck plate to the mounting and cross channels
as shown in
. With 1/2" x 1" Hex bolts and Flange nuts, snug the ladder clips in place.
Mounting with the flange nuts on the bottom of the deck plate will make adjusting the ladder clips
easier in the air.
Figure 7C
Clip, 16/36" RP Ladder
(RP1636LC)
Plate, 16/36" RP Deck
(RP1636DP)
