4. Assembly

PNEG-1434 6", 8" and 10" Roof Augers

Installing the Motor (Not Provided)

A. Attach the motor to the motor mount plate using appropriate bolts, lock washers, and hex nuts.

B. Install pulley onto motor shaft making sure that it is aligned with the flight pulley. It may be

necessary to move spacers to gain shaft alignment.

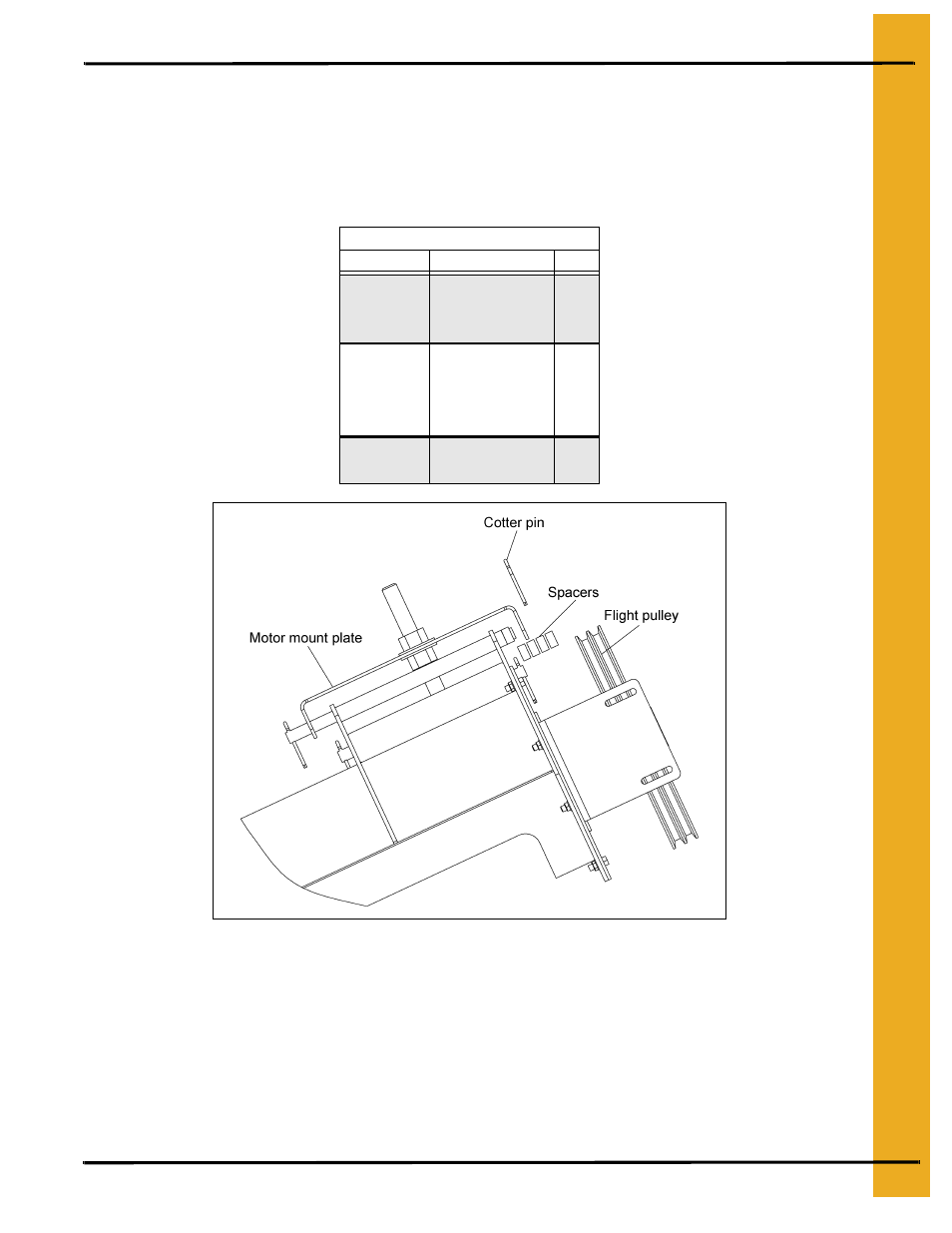

Figure 4P

Installing the Belts

A. Place the belts onto the pulleys.

B. First screw the lower motor mount adjustment nut upward, raising the motor mount plate and

putting tension on the belts.

C. Once the desired tension is reached, tighten the upper motor mount adjustment nut down onto the

motor mount plate locking it into place.

Motor Bolt Chart

Motor Size

Hex Bolt Size

Qty

5/16"-18 x 1-1/4"

143T

145T

182T

3/8"-16 x 1-1/4"

184T

213T

215T

254T

1/2"-13 x 1-3/4"

256T
